Temat: Wifi extender przez kabel jak ustawić WAN na LAN w routerze 2 portowym
Witam, próbuję połączyć dwa routery główny z podrzędnym (Cudy TR1200) który ma tylko 2 porty rj-45.
Całość musi być w jednej sieci i port WAN chcę, żeby był wykorzystywany do sieci LAN
Schemat:
Główny (Asus AX53U --- > Cudy TR1200 --- > Wifi do telefonu / lub po skrętce (1 została wolna) do TV/laptopa itd.
DHCP ma rozsyłać główny router.
Robiłem prawie to samo co na tej stronie: --- > https://openwrt.org/docs/guide-user/net … /bridgedap

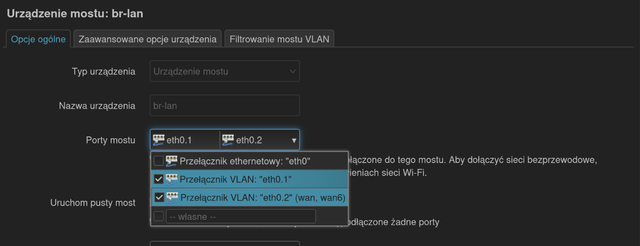

z tym, że nie zajmowałem się tagowaniem VLANów bo nie lubię i nie umię, ustawiałem z GUI i powodowało spamowaniem DHCPOFFER na głównym routerze
Na chwilę obecną configi wyglądają tak:
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fde2:1be8:8d58::/48'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'eth0.1'
list ports 'wan'
option ipv6 '0'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.2'
option netmask '255.255.255.0'
option ip6assign '60'
option gateway '192.168.1.1'
option dns '192.168.1.1'
option ipv6 'off'
#config interface 'wan'
# option device 'eth0.2'
# option proto 'dhcp'
# option ipv6 'off'
#config interface 'wan6'
# option device 'eth0.2'
# option proto 'dhcpv6'
# option disabled '1'
# option auto '0'
# option reqaddress 'try'
# option reqprefix 'auto'
# option norelease '1'
config switch
option name 'switch0'
option reset '1'
option enable_vlan '1'
config switch_vlan
option device 'switch0'
option vlan '1'
option ports '0 1 6t'
#config switch_vlan
# option device 'switch0'
# option vlan '2'
# option ports '1 6t'
config device
option name 'eth0'
option ipv6 '0'
config device
option name 'eth0.1'
option type '8021q'
option ifname 'eth0'
option vid '1'
config device
option name 'eth0.2'
option type '8021q'
option ifname 'eth0'
option vid '2'
config device
option name 'phy1-ap0'
root@OpenWrt:~#root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option ignore '1'
option dhcpv6 'disabled'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
root@OpenWrt:~#root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/10300000.wmac'
option band '2g'
option channel '1'
option htmode 'HT20'
option disabled '1'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
config wifi-device 'radio1'
option type 'mac80211'
option path 'pci0000:00/0000:00:00.0/0000:01:00.0'
option band '5g'
option channel '36'
option htmode 'VHT80'
option cell_density '0'
option country 'PL'
option txpower '7'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'chwilowy'
option encryption 'psk2'
option key 'HASŁO'
root@OpenWrt:~#root@OpenWrt:~# swconfig dev rt305x show
Global attributes:
enable_vlan: 1
alternate_vlan_disable: 0
bc_storm_protect: 0
led_frequency: 0
Port 0:
disable: 0
doubletag: 0
untag: 1
led: 5
lan: 1
recv_bad: 0
recv_good: 0
tr_bad: 0
tr_good: 0
pvid: 1
link: port:0 link:down
Port 1:
disable: 0
doubletag: 0
untag: 1
led: 5
lan: 0
recv_bad: 0
recv_good: 980
tr_bad: 0
tr_good: 563
pvid: 1
link: port:1 link:up speed:100baseT full-duplex
Port 2:
disable: 1
doubletag: 0
untag: 0
led: 5
lan: 1
recv_bad: 0
recv_good: 0
tr_bad: 0
tr_good: 0
pvid: 0
link: port:2 link:down
Port 3:
disable: 1
doubletag: 0
untag: 0
led: 5
lan: 1
recv_bad: 0
recv_good: 0
tr_bad: 0
tr_good: 0
pvid: 0
link: port:3 link:down
Port 4:
disable: 1
doubletag: 0
untag: 0
led: 5
lan: 1
recv_bad: 0
recv_good: 0
tr_bad: 0
tr_good: 0
pvid: 0
link: port:4 link:down
Port 5:
disable: 1
doubletag: 0
untag: 0
led: ???
lan: 1
recv_bad: 0
recv_good: 0
tr_bad: 0
tr_good: 0
pvid: 0
link: port:5 link:down
Port 6:
disable: 0
doubletag: 0
untag: 0
led: ???
lan: ???
recv_bad: ???
recv_good: ???
tr_bad: ???
tr_good: ???
pvid: 0
link: port:6 link:up speed:1000baseT full-duplex
VLAN 1:
ports: 0 1 6t
root@OpenWrt:~#
