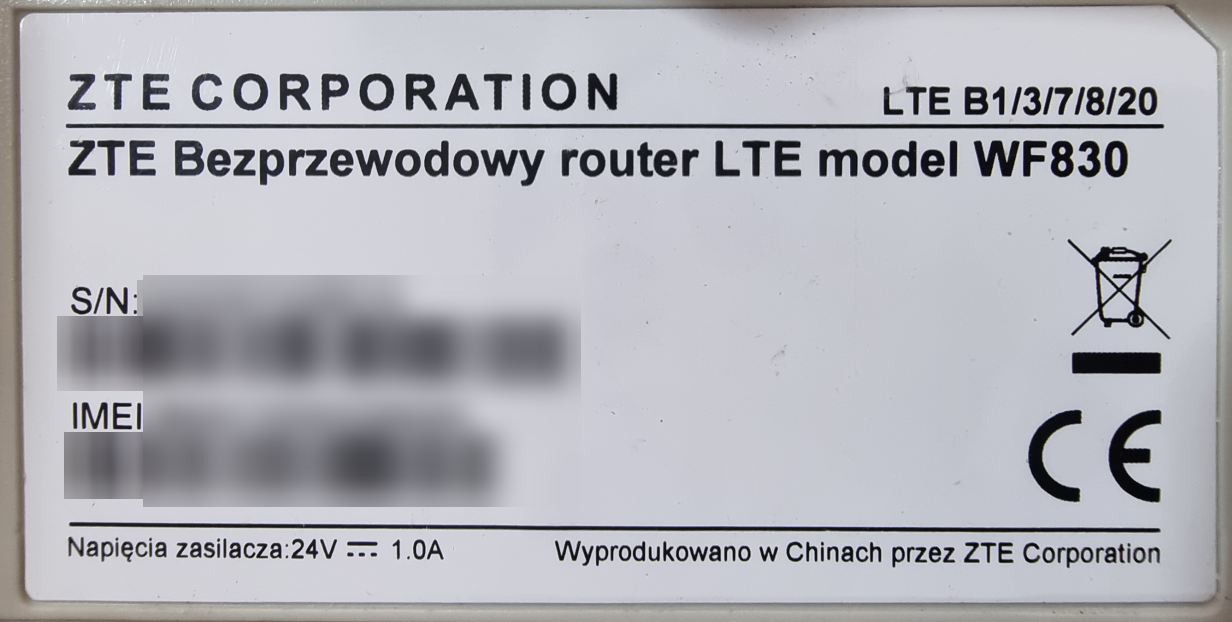

Cześć.

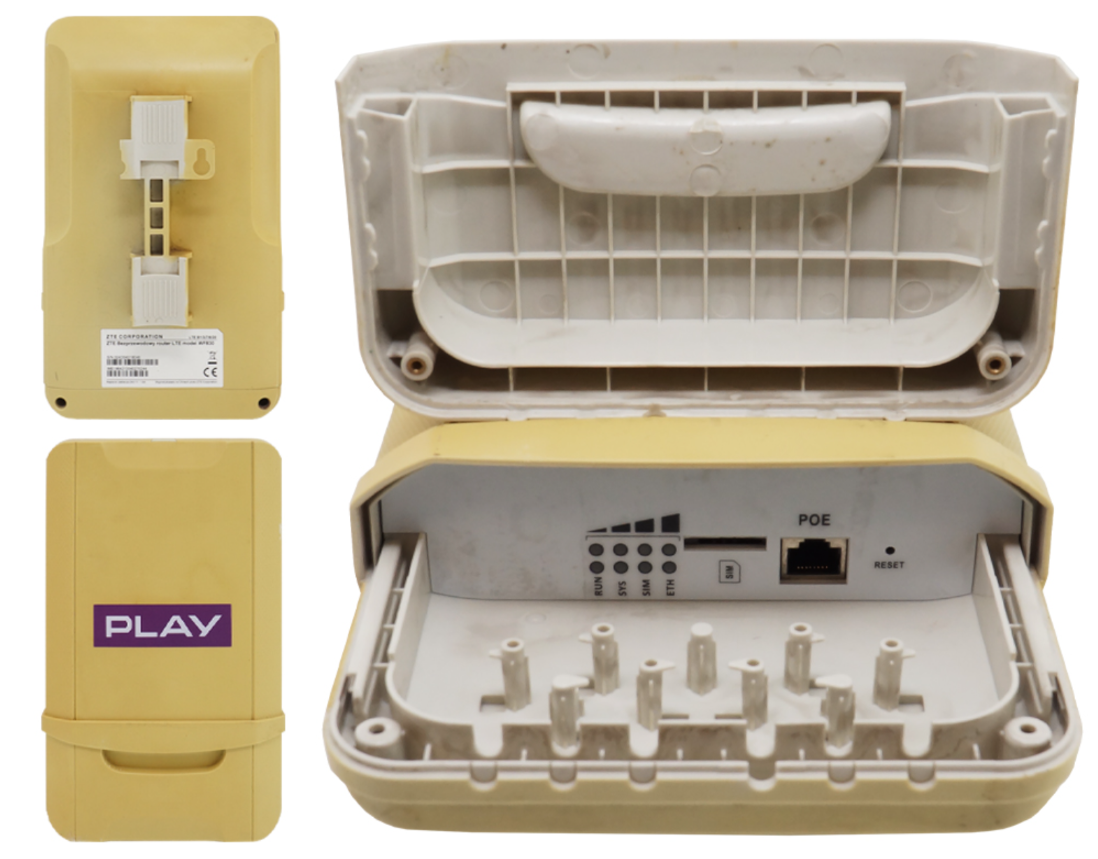

Rozebrałem to i podłączyłem się do konsoli. Prędkość 912600.
Log po resecie:
ETH_EN(GPE16): 1(dflt)->0(set-low)->mdelay(100)->1(set-high)
U-Boot 2010.09 (Nov 02 2017 - 10:28:18)GCT GDM7243
Build Info:
date: 2017/11/02-10:28:21
user: swdev@sw-Vostro-3900
svnr:
src: /home2/swdev/GCT_UBOOT/GCT_UBOOT_GDM_SVN360_CAT6
ver: 0.54_V1.0.3
DRAM: 128 MiB (wbd-p2) 1Gb
NAND: ECC 4bit
maf_id : 0x000000ad, dev_id : 0x000000aa
Pagesize : 2Kbytes
Address cycle : 5
Ecc : 4bit(size : 1a, addr : 826)
256 MiB
Bad block table found at page 131008, version 0x01
Bad block table found at page 130944, version 0x01
In: serial
Out: serial
Err: serial
Net: 001cc910 Realtek8211 PHYCR1: 00002118-0000211c Rx delay: 0x00802300
PHYCR2:0x0863->0x0842 mii0
Hit Ctrl+S key to stop autoboot: 1 0
cmmnv offset: 00020000
---------------------
hdr chksum : 0xbb440878
magic : 0xcafebabe
timstamp : 0x00000519
data chksum : 0xffea59fc
data size : 0x0001ffdc
---------------------
cmmnv offset: 00040000
---------------------
hdr chksum : 0xa461073e
magic : 0xcafebabe
timstamp : 0x0000051a
data chksum : 0x9d41c461
data size : 0x0001ffdc
---------------------
cmnnv current block is : 1
---------------------
zone data offset: 0x0a000000
---------------------
get zmtel zone info:
crc32_sum :0x0D4D0142
magic :0x5A4D5348
runstatus :0x00000000
bootstatus :0x00000000
---------------------
---------------------
Status=Running...
---------------------
---------------------
hdr chksum : 0xb0d007ad
magic : 0xcafebabe
timstamp : 0x00000002
data chksum : 0xe7d4f056
data size : 0x00249a88
---------------------
---------------------
hdr chksum : 0xb0bb07ac
magic : 0xcafebabe
timstamp : 0x00000001
data chksum : 0xe7d4f056
data size : 0x00249a88
---------------------
select partition
part name : linux
offset : 0x00a00000
size : 0x00400000
---------------------
hdr chksum : 0x994a0683
magic : 0xcafebabe
timstamp : 0x00000004
data chksum : 0x9f62254b
data size : 0x002fd7a4
---------------------
---------------------
hdr chksum : 0x9b08069e
magic : 0xcafebabe
timstamp : 0x00000002
data chksum : 0x54cc254b
data size : 0x002fd7a2
---------------------
select partition
part name : tk
offset : 0x04e00000
size : 0x00500000
---------------------
hdr chksum : 0x824104e8
magic : 0xcafebabe
timstamp : 0x00000003
data chksum : 0x49504b86
data size : 0x01160000
---------------------
---------------------
hdr chksum : 0x821704e6
magic : 0xcafebabe
timstamp : 0x00000001
data chksum : 0x49504b86
data size : 0x01160000
---------------------
select partition
part name : rootfs
offset : 0x01200000
size : 0x01e00000
---------------------
hdr chksum : 0x994a0683
magic : 0xcafebabe
timstamp : 0x00000004
data chksum : 0x9f62254b
data size : 0x002fd7a4
---------------------
---------------------
hdr chksum : 0x9b08069e
magic : 0xcafebabe
timstamp : 0x00000002
data chksum : 0x54cc254b
data size : 0x002fd7a2
---------------------
select partition
part name : tk
offset : 0x04e00000
size : 0x00500000
Part Kernel:0 will do crc check
Data checksum is OK!!!
Part Rootfs:0 will do crc check
Data checksum is OK!!!
Part Tk:0 will do crc check
Data checksum is OK!!!
bootargs (default)
## Booting kernel from Legacy Image at d05fffc0 ...
Image Name: Linux-3.10.0-uc0
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 2398792 Bytes = 2.3 MiB
Load Address: d0600000
Entry Point: d0600000
Verifying Checksum ... OK
Loading Kernel Image ... OK
OK
Starting kernel ...
Uncompressing Linux... done, booting the kernel.
Booting Linux on physical CPU 0x0
Initializing cgroup subsys cpu
Initializing cgroup subsys cpuacct
Linux version 3.10.0-uc0 (swdev@sw-Vostro-3900) (gcc version 4.7.3 (Buildroot 2013.08.1) ) #11 Mon Dec 3 19:16:11 CST 2018
CPU: ARMv7 Processor [410fc074] revision 4 (ARMv7), cr=12c53c7d
CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
Machine: GCT GDM7243
Boot device: nand
boot mem size: 80MB
READ ONLY FILESYSTEM
FW Checksum: enable
Active linux : linux
Active rootfs: rootfs
Active tk : tk
Memory policy: ECC disabled, Data cache writeback
CPU: GDM7243QT R0B [0x72430100]
ARM:
CR: 12c53c7d
ACR: 00006040
CPU: xtal 19.200 MHz, pll 833.280 MHz arm 833.280 MHz, clk(1x) 104.160 MHz
CPU: All CPU(s) started in SVC mode.
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 20320
Kernel command line: console=ttyS0,921600 boot=nand mem=80M ubi.mtd=10,2048 root=ubi0:rootfs ro rootfstype=ubifs mtdparts=gdm7243:512k(u-boot),512k(env),1m(lte1nv),1m(lte2nv),1m(wmnv),1m(cmnnv),1m(cmnnv2),4m(rev1),4m(linux),4m(linux2),30m(rootfs),30m(rootfs2),5m(tk),5m(tk2),35m(update),4m(cfg),1m(factory),32m(syslog),1m(zone) bl_ver=0.54_V1.0.3 lcd=none checksum=enable active=linux,rootfs,tk
PID hash table entries: 1024 (order: 0, 4096 bytes)
Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
Memory: 80MB = 80MB total
Memory: 75636k/75636k available, 6284k reserved, 0K highmem
Virtual kernel memory layout:
vector : 0xffff0000 - 0xffff1000 ( 4 kB)
fixmap : 0xfff00000 - 0xfffe0000 ( 896 kB)
vmalloc : 0xd5800000 - 0xff000000 ( 664 MB)
lowmem : 0xd0000000 - 0xd5000000 ( 80 MB)
modules : 0xcf000000 - 0xd0000000 ( 16 MB)
.text : 0xd0008000 - 0xd041f0fc (4189 kB)
.init : 0xd0420000 - 0xd043e83c ( 123 kB)
.data : 0xd0440000 - 0xd04e8340 ( 673 kB)
.bss : 0xd04eac5c - 0xd055e3e8 ( 462 kB)
SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
NR_IRQS:64
[CLK] 1x:-1 is 1:104160000
[CLK] timers:-1 is 1:0
gdm_set_mode
CLOCK_EVT_MODE_SHUTDOWN
gdm_set_mode
CLOCK_EVT_MODE_PERIODIC
sched_clock: 32 bits at 32kHz, resolution 30517ns, wraps every 131071999ms
RTC: secondary(external) 32.768KHz osc
RTC Interrupt Enabled!
rtc_boot_base=00045731
console [ttyS0] enabled
Calibrating delay loop... 1652.73 BogoMIPS (lpj=826368)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
Setting up static identity map for 0xd0323398 - 0xd03233f0
SYS_STA: 0x3(POR)
regulator-dummy: no parameters
NET: Registered protocol family 16
DMA: preallocated 256 KiB pool for atomic coherent allocations
Build Info:
date: 2018/12/03-19:16:10
user: swdev@sw-Vostro-3900
svnr: r ()
pkgv: 0.64.13.0
appv: 0.64.13.0
src: /home2/swdev/GCT/cat6/bypass/GCT-CAT6-BYPASS-POL_P4
Config Info:
PRODUCT: gdm7243qt
PLATFORM_STANDALONE
HZ=1000
NET_NATQ2
NET_VLANQ
RTC_TIMER
MMC
PM_IDLE
PM_IDLE_DFRD_TIMER
IPC_CACHEABLE
HZ_PERIODIC
DDR: id=6(ELPIDA) rev=2,0
GDM HL IF(v0.6) initialized
bio: create slab <bio-0> at 0
Switching to clocksource rtccs
NET: Registered protocol family 2
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP: reno registered
UDP hash table entries: 256 (order: 0, 4096 bytes)
UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
NET: Registered protocol family 1
netif ver: 1.0
vlanq ver: 1.0 nsra=0
cpu lock_reg:
active=d4822894
free =d4822898
gipc-protocol(d4822800): va=d4822800, pa=d4822800 ver=0105
ipc cacheable
ipc init ch=0
ipc ch[0]:CTRL, irb: va=d4823000-d4823640 pa=d4823000-d4823640
ipc ch[0]:CTRL, irb_work: va=d4873c00-d4873ea0 pa=d4873c00-d4873ea0
irb nr: tx=16(2080bytes) rx=64(2080bytes)
irb tx: va=d4823000-d4823140 pa=d4823000-d4823140
irb rx: va=d4823148-d4823648 pa=d4823148-d4823648
m-ch_enabled=0x1
ipc init ch=28
ipc ch[28]:DBG, irb: va=d480b000-d480ba28 pa=d480b000-d480ba28
ipc ch[28]:DBG, irb_work: va=d4823800-d4823c30 pa=d4823800-d4823c30
irb nr: tx=2(2080bytes) rx=128(2080bytes)
irb tx: va=d480b000-d480b028 pa=d480b000-d480b028
irb rx: va=d480b030-d480ba30 pa=d480b030-d480ba30
m-ch_enabled=0x10000001
IPCIF(v0.2) initialized
IPC Ver: 0.5
IPC_IF_RX_LIMIT=100
exFAT: Version 1.2.9
jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
msgmni has been set to 147
io scheduler noop registered
io scheduler deadline registered
io scheduler cfq registered (default)
i2c /dev entries driver
Initialize gdm-i2c
Probe gdm-i2c
i2c bus frequency set to 400 KHz
i2c-0: GDM I2C adapter
PMIC SWREGADJ1=0xb
ECOSWREG: 1f
PMIC GMT-G5851(id:12) probed!
gdm-uart.0: ttyS0 at I/O 0xfc007500 (irq = 2) is a gdm-uart
gdm-uart.1: ttyS1 at I/O 0xfc007540 (irq = 21) is a gdm-uart
gdm-uart.2: ttyS2 at I/O 0xfc007580 (irq = 33) is a gdm-uart
gdm-uart.3: ttyS3 at I/O 0xfc007600 (irq = 12) is a gdm-uart
[USIM] : GDM USIM device driver (1.1.7)
Serial flash ID[00000000]
Serial flash driver MAJOR[140]
start : c4000000, regs : d6000000, area : d4a82380, size : 16777216
brd: module loaded
GDM7243 NAND Driver (1.22), GCT Semiconductor, Ltd.
Ecc : 4bit
fault_ecc_nr=1
ecc_chk_loop_nr=2
chk_correctable_ecc=1
specific oobsize: 128Bytes
NAND: pagesize : 2K
NAND device: Manufacturer ID: 0xad, Chip ID: 0xaa (Hynix NAND 256MiB 1,8V 8-bit), 256MiB, page size: 2048, OOB size: 128
Bad block table found at page 131008, version 0x01
Bad block table found at page 130944, version 0x01
19 cmdlinepart partitions found on MTD device gdm7243
19 cmdlinepart partitions found on MTD device gdm7243
Creating 19 MTD partitions on "gdm7243":
0x000000000000-0x000000080000 : "u-boot"
0x000000080000-0x000000100000 : "env"
0x000000100000-0x000000200000 : "lte1nv"
0x000000200000-0x000000300000 : "lte2nv"
0x000000300000-0x000000400000 : "wmnv"
0x000000400000-0x000000500000 : "cmnnv"
0x000000500000-0x000000600000 : "cmnnv2"
0x000000600000-0x000000a00000 : "rev1"
0x000000a00000-0x000000e00000 : "linux"
0x000000e00000-0x000001200000 : "linux2"
0x000001200000-0x000003000000 : "rootfs"
0x000003000000-0x000004e00000 : "rootfs2"
0x000004e00000-0x000005300000 : "tk"
0x000005300000-0x000005800000 : "tk2"
0x000005800000-0x000007b00000 : "update"
0x000007b00000-0x000007f00000 : "cfg"
0x000007f00000-0x000008000000 : "factory"
0x000008000000-0x00000a000000 : "syslog"
0x00000a000000-0x00000a100000 : "zone"
---------------------
hdr chksum : 0xbb440878
magic : 0xcafebabe
timstamp : 0x00000519
data chksum : 0xffea59fc
data size : 0x0001ffdc
---------------------
---------------------
hdr chksum : 0xa461073e
magic : 0xcafebabe
timstamp : 0x0000051a
data chksum : 0x9d41c461
data size : 0x0001ffdc
---------------------
PHYCR1: 0x211c
MII_CLK_CTRL(0xfc000450)=0x00802300
MII_LCR: 00006251->00006e51
PHYCR2: 0x842
gdm-rgmii at 0xec0c0000 irq=15 (00:0a:3b:f0:01:30) with Realtek RTL8211 PHY(at 00)
gdm-ether ver 1.4
mousedev: PS/2 mouse device common for all mice
mmc0: sdh base clock=200MHz
mmc: [MAIN CLOCK]: gdm-sdhost - 200Mhz
mmc0: SDH Clock freq = 200MHz, Timeout Clock freq = 1KHz
mmc0: host caps([0]=67e8c881 [1]=01000003) caps=4007800f
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: at ec0b0000 irq 16 SDMA
mmc: ucfg_multi_sdhost=-1
sdhost1=0
mmc: sdhci_init ret=0
natq ver: 0.6.0 qnr=4096
ipv6q ver: 1.0
lcq ver: 1.0
Netfilter messages via NETLINK v0.30.
ipip: IPv4 over IPv4 tunneling driver
TCP: cubic registered
Initializing XFRM netlink socket
NET: Registered protocol family 10
sit: IPv6 over IPv4 tunneling driver
NET: Registered protocol family 17
NET: Registered protocol family 15
Bridge firewalling registered
Ebtables v2.0 registered
VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 4
DMA ver 0.6
PM ver 1.0.1
GDM PM enabled(SYS_GLB_CTRL:00000000)
PM_PMIC_RF_OFF disabled
wfds_ms=25
aom memcpy(f4000000, d04e9000, 7136): d=38402de9 s=d3010ef1
aom memcpy done
GDM PM Inited: SYS_GLB_CTRL=0333c244(wfds=24993us)
RF SPI:
02=002da492
2e=01ffefff
ee=005b6410
fd=00040148
MTD Crash partition /dev/mtd7
ipc mux irb nr(0->128) bsize(0->4128)
ipc init ch=16
ipc ch[16]:MUX, irb: va=d480e000-d480ea28 pa=d480e000-d480ea28
ipc ch[16]:MUX, irb_work: va=d4b43000-d4b43430 pa=d4b43000-d4b43430
irb nr: tx=2(4128bytes) rx=128(4128bytes)
irb tx: va=d480e000-d480e028 pa=d480e000-d480e028
irb rx: va=d480e030-d480ea30 pa=d480e030-d480ea30
m-ch_enabled=0x10010001
cfg:Load cfg new driver...
UBI: attaching mtd10 to ubi0
UBI: scanning is finished
UBI warning: print_rsvd_warning: cannot reserve enough PEBs for bad PEB handling, reserved 37, need 40
UBI: attached mtd10 (name "rootfs", size 30 MiB) to ubi0
UBI: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
UBI: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
UBI: VID header offset: 2048 (aligned 2048), data offset: 4096
UBI: good PEBs: 240, bad PEBs: 0, corrupted PEBs: 0
UBI: user volume: 1, internal volumes: 1, max. volumes count: 128
UBI: max/mean erase counter: 1/0, WL threshold: 4096, image sequence number: 1934699295
UBI: available PEBs: 0, total reserved PEBs: 240, PEBs reserved for bad PEB handling: 37
UBI: background thread "ubi_bgt0d" started, PID 878
em_mode=0x00000b03:
b[0]=REBOOT_ON_LINUX_CRASH(ON)
b[1]=REBOOT_ON_APP_CRASH(ON)
b[8]=REBOOT_ON_MODEM_CRASH(ON)
b[9]=REBOOT_ON_MODEM_WDT(ON)
b[10]=RELOAD_ON_MODEM_CRASH(off)
b[11]=RELOAD_ON_MODEM_WDT(ON)
md wd started: to=3000 du=10000
uart port[0] fc=0 cr=0000002b
UBIFS: mounted UBI device 0, volume 0, name "rootfs", R/O mode
UBIFS: LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
UBIFS: FS size: 23998464 bytes (22 MiB, 189 LEBs), journal size 6729728 bytes (6 MiB, 53 LEBs)
UBIFS: reserved for root: 0 bytes (0 KiB)
UBIFS: media format: w4/r0 (latest is w4/r0), UUID ECEEEB55-13E1-4E63-9315-F1354F0B7E9E, small LPT model
VFS: Mounted root (ubifs filesystem) readonly on device 0:10.
Freeing unused kernel memory: 120K (d0420000 - d043e000)
starting pid 882, tty '': '/etc/init.d/rcS'
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
devpts: called with bogus options
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
Welcome to
G C T L T E M O D E M
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
[NV] : GDM NVM library (2.2)
[NV] NV_MAP : NV_LTE_7243QT
[NV] LTE1 NV Init active block (NV 1 : 0x40000)
[NV] LTE2 NV Init active block (NV 0 : 0x20000)
Jan 1 00:00:01 ucfgd: select_header(604) CMNNV2(3) : Block is corrupted.
Use normal log configuration
+modprobe modem modem_bootp="product_id=0x0000, operator_id=0x0000"
boot param: product_id=0x0000, operator_id=0x0000, boot_mode=0, gipc_phy_base=0xd4822800, mem_base=0xd0000000, mem_size=0x5000000, compat=0x1
---------------------
hdr chksum : 0xbb440878
magic : 0xcafebabe
timstamp : 0x00000519
data chksum : 0xffea59fc
data size : 0x0001ffdc
---------------------
---------------------
hdr chksum : 0xa461073e
magic : 0xcafebabe
timstamp : 0x0000051a
data chksum : 0x9d41c461
data size : 0x0001ffdc
---------------------
read from nand mtd=tk
modem map info:
[0] pa(d5100000)->va(d8000000)
decompress gz(1f 8b) at 0xd5100000... (3135396bytes)
decompress done(6215317bytes)
-modprobe modem
Thu Jun 20 14:00:00 UTC 2013
TK: gipc-protocol addr(v2)=d4822800 magic=4054 ver=0105(0105)
TK: cpu lock_reg:
TK: active=d4822894
TK: free =d4822898
TK: ipc config=00000014
TK: router-device
TK: ipc init ch=0
TK: peer-genirq=fc002c28(1)
TK: s-ch_enabled=0x10010001
TK: ipc init ch=16
TK: peer-genirq=fc002c28(1)
TK: s-ch_enabled=0x10010001
TK: ipc init ch=28
TK: peer-genirq=fc002c28(1)
TK: s-ch_enabled=0x10010001
============================================================================
[0] uT-Kernel R-24302 (branches / rev17602-20170801 : GDM7243QT_48MB : 48MB)
----------------------------------------------------------------------------
- gregkim@cae2
- gcc version 6.1.0 (Buildroot 2016.08-git-02646-gf0fa2d1)
- #0 Tue Nov 20 13:49:09 KST 2018
============================================================================
[MMU] VA:D0000000 PA:D0000000 SZ:80MB ATTR:0001140E
[MMU] D4FFFFFF PA:D4FFFFFF
[MMU] VA:FFF00000 PA:D5000000 SZ: 1MB ATTR:0000140E
[MMU] FFFFFFFF PA:D50FFFFF
[MMU] VA:FC000000 PA:FC000000 SZ:63MB ATTR:00000412
[MMU] FFEFFFFF PA:FFEFFFFF
[MMU] VA:F4000000 PA:F4000000 SZ: 1MB ATTR:00001412
[MMU] F40FFFFF PA:F40FFFFF
[MMU] VA:D6700000 PA:D6700000 SZ:24MB ATTR:0000040A
[MMU] D7EFFFFF PA:D7EFFFFF
[MMU] VA:D7F00000 PA:D7F00000 SZ: 1MB ATTR:00001412
[MMU] D7FFFFFF PA:D7FFFFFF
[CPU] ARMv7 Processor [410fc074] revision 4 (ARMv7) cr=12c5387d
[CACHE] cache: 512 bytes 1-way 64 byte lines 8 sets
[CACHE] D cache: write-back cache
[VFP] implementor 41 arch 2 part 30 variant 7 rev 4
[MEM] WT DRAM zero initialized 25165008(24575KB)bytes from d6700000 to d7effcd0
[MEM] NCH DRAM zero initialized 0(0KB)bytes from d7f00000 to d7f00000
[CHIP] GDM7243QT(Rev.0B)
[CLOCK] arm(833.280MHz) 1x(104.160MHz)
[PM] GDM Power Management
[MEM] total : 0xd5000000 - 0xd8000000 ( 48 MB)
[MEM] .init : 0xd5100000 - 0xd510aa00 ( 43 kB)
[MEM] .text : 0xd5100000 - 0xd56aa330 ( 5801 kB)
[MEM] .data : 0xd56ab000 - 0xd56ed695 ( 266 kB)
[MEM] .bss : 0xd56ed695 - 0xd59e60c4 ( 3043 kB)
[MEM] .heap : 0xd59e8400 - 0xd66fe000 (13399 kB)
########################################
#### 7243 Board Configuration ####
########################################
Operator: [0x0000]
Product : [0x0000]
## LTE CONFIG
- Combined attach : [0]
- UE CAPABILITY
> UE Category : [0 (0/0)]
> AS Rel Num : [0]
> Multi-Band : [1]
> FGI : FDD [00000000 00000000 00000000]
> : TDD [00000000 00000000 00000000]
> ROHC : [1]
> eMBMS : [0]
> TM : [00/00/00]
[console] crash enabled
[console] gdm_ipc enabled
[console] gdm_uart0 enabled
----------------------------------------------------------------------------
LTE - FW ver: 0.3.2.20
----------------------------------------------------------------------------
[TC:DL:PPS] Off
nv_checksum_info: 0
lte driver ver 1.0.2
VLANQ register lte0pdn0 tag=100 en=0
VLANQ register lte0pdn1 tag=101 en=0
VLANQ register lte0pdn2 tag=102 en=0
VLANQ register lte0pdn3 tag=103 en=0
VLANQ register lte0pdn4 tag=104 en=0
VLANQ register lte0pdn5 tag=105 en=0
VLANQ register lte0pdn6 tag=106 en=0
VLANQ register lte0pdn7 tag=107 en=0
VLANQ register lte0pdn8 tag=108 en=0
VLANQ register lte0pdn9 tag=109 en=0
VLANQ register lte0pdn10 tag=110 en=0
VLANQ register lte0pdn11 tag=111 en=0
VLANQ register lte0pdn12 tag=112 en=0
VLANQ register lte0pdn13 tag=113 en=0
VLANQ register lte0pdn14 tag=114 en=0
VLANQ register lte0pdn15 tag=115 en=0
ipc init ch=1
ipc ch[1]:LTE-SDU, irb: va=d4280000-d429e000 pa=d4280000-d429e000
ipc ch[1]:LTE-SDU, irb_work: va=d42a0000-d42ac020 pa=d42a0000-d42ac020
irb nr: tx=4096(2080bytes) rx=2048(2080bytes)
irb tx: va=d4280000-d4294000 pa=d4280000-d4294000
irb rx: va=d4294008-d429e008 pa=d4294008-d429e008
TK: ipc init ch = 1m
-
ch_enabled=T0Kx:1 0 0 1p0e0e0r3-
g
enirq=fc002c28(1)
TK: s-ch_enabled=0x10010003
netif set local ip=169.254.0.1 mask=255.255.0.0
netif set local ip=0.0.0.0 mask=0.0.0.0
netif set local ip=169.254.0.1 mask=255.255.255.0
device eth0 entered promiscuous mode
tc->desc=d58ad000 desc_phys=d3ba8000
lpa=cde1 expansion=6f
expansion_nway(200, 3800, 200)
eth0: link up, 1000Mbps, full-duplex (3140, 79ad, cde1)
/etc/sysconfig/script/start_wlan.sh: line 13: /usr/wifi/mrvl/start_gct.sh: No such file or directory
Loading simple NAT configuration..
INTF=br0, WANINTF=lte0pdn0
ip_tables: (C) 2000-2006 Netfilter Core Team
nf_conntrack version 0.5.0 (1183 buckets, 4732 max)
register ip_conntrack_cb
<message>[NV] CMN2 NV Write Skip (3:NVIM_I_CMN2_PORT, 0x0, 2569)
Fail to Check DMZ Setting. Please, restart Command</message>
<message>[NV] CMN2 NV Write Skip (4:NVIM_I_CMN2_MAC, 0x0, 1549)
Fail to get MAC filter list</message>
<status>All allow</status>
<allow_mac_list_num>0</allow_mac_list_num>
<reject_mac_list_num>0</reject_mac_list_num>
Setting dhcp configuration..
Internet Systems Consortium DHCP Server 4.1-ESV-R9
Copyright 2004-2014 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Wrote 0 leases to leases file.
Listening on LPF/br0/60:14:66:51:13:4c/169.254.0.0/24
Sending on LPF/br0/60:14:66:51:13:4c/169.254.0.0/24
Sending on Socket/fallback/fallback-net
VLAN: all hmac cleared
br0: port 1(eth0) entered forwarding state
br0: port 1(eth0) entered forwarding state
2013-06-20 14:00:02: (log.c.166) server started
#### VLAN ENABLE
ENABLE lte0pdn0 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=0 tag=101
lte0pdn2: enable=0 tag=102
lte0pdn3: enable=0 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
running netif_q_thread!
[wimax] bentry delayed copy: b336(4)
ENABLE lte0pdn1 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=1 tag=101
lte0pdn2: enable=0 tag=102
lte0pdn3: enable=0 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
GCT mobile WiMax driver version 0.5
VLANQ register wimax tag=200 en=0
ipc init ch=12
ipc ch[12]:WM-SDU, irb: va=d352c000-d352c780 pa=d352c000-d352c780
ipc ch[12]:WM-SDU, irb_work: va=d3568400-d3568720 pa=d3568400-d3568720
irb nr: tx=32(2080bytes) rx=64(2080bytes)
irb tx: va=d352c000-d352c280 pa=d352c000-d352c280
irb rx: va=d352c288-d352c788 pa=d352c288-d352c788
TK: pccinen bl=1=
10: 1 p3
r-genirq=fc002c28(1)
TK: s-ch_enabled=0x10011003
Loading kernel module for a network device with CAP_SYS_MODULE (deprecated). Use CAP_NET_ADMIN and alias netdev-wimax instead.
V6Q: [1] up ipv6: fe80::20a:3bff:fef0:122(wimax)
ENABLE lte0pdn2 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=1 tag=101
lte0pdn2: enable=1 tag=102
lte0pdn3: enable=0 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
ENABLE lte0pdn3 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=1 tag=101
lte0pdn2: enable=1 tag=102
lte0pdn3: enable=1 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
act=1
lted: lted started
***************************************
* LTE DAEMON START *
***************************************
[lted] bentry delayed copy: b336(4)
Disable GPS Module ...
Not Used
IPV6Q LOG(00000004):
ipv6q_enabled=0
NET EMUL LOG(00000000): NULL
net_emul_mask=00000000
ugserver: [main 1024]Start UGServer.
[NV] NV_MAP : GDM7243QT
lted: ind_watchdog_init()
[NV_HCI] nv checksum is valid(0x2ab74906/0x2ab74906)
[NVM] READ Head N_INFO (7243,10,c6) - Status(0)
[NVM] READ Head N_BCFG (7243,10,b1) - Status(0)
[NVM] READ Head N_RFCAL (7243,12,b9) - Status(0)
[NVM] READ Head N_TCCAL (7243,10,d0) - Status(0)
[NVM] READ Head N_NETWORK (7243,10,90) - Status(0)
[NVM] READ Head N_SAFE (7243,10,66) - Status(0)
[NVM] READ Head N_ETCAL (7243,10,00) - Status(0)
[V_SIM]ProcNvBcfgData/gstVsimEnData:0
default tdm log level=0 (NV:0)
| net: clearing start - eps_id = 0xffef
| net: clearing done
ENABLE ipatc, port number 7788
modify zm zone info ---> running
lted:
LTE DEVICE INSERT(DEV_IDX(1))
lted:
CRASH LOG RESPOSNE(DEV_IDX(1))
L1_BandInformation:success(1)
L1_BandInformation:success(3)
L1_BandInformation:success(7)
L1_BandInformation:success(8)
L1_BandInformation:success(20)
ps_sys_init / UMM_Create
[UMM_ERR] [V_SIM]eVSIM_Enabled:%d , 0
[NAS_EMMCache] set IMEI to default value. current:[0x 08 8A 46...]
USIM driver open
zone @off(0x00000000)
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 0
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 1
lted_client_init_ex success[SMS]Wait LTE PS INIT..
**********************************************
* Starting ipatc *
**********************************************
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 2
LTE force_dhcp == 0
| net: clearing start - eps_id = 0xfeff
| net: clearing done
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 3
lted: [SERVER] new connection request
lted_client_init_ex successlted: [SERVER] assigns client index 4
[2013-06-20 14:00:02:958] LTESDK [tid_list_clean ] tid_list_clean()
[2013-06-20 14:00:02:959] LTESDK [tid_list_dump ] TID List is empty !!!!!!
lted: pm_no_sleepable=1
[2013-06-20 14:00:03:099] LTESDK [send_lte_no_usim ] Send LTE_EMBEDED_HOST_UICC_NO_USIM_IND
[LTE_NV] LTE NV Write Skip (4:LTE_NETWORK, 0x2c, 54)
lted:
NAS EMM STATUS CHANGE INDICATION(DEV_IDX(1))
lted: Result : 0
lted: Main State : 1
lted: Deregistered Sub State : 5
lted: Registered Sub State : 0
------------------------------------------------------------------------
| pdn_manager_event_notify() - PDN Event:0x0020
| PDN_EVENT_DETACH
[2013-06-20 14:00:03:113] LTESDK [pdn_manager_event_notify ] PDN_EVENlted: pm_no_sleepable=0
T_DETACH
lted:
UICC ACTIVATE INDICATION(DEV_IDX(1))
lted: Status : DEACTIVATE
lted:
INITIALIZATION PROTOCOL STACK RESPONSE(DEV_IDX(1))
lted: Result : 0
[2013-06-20 14:00:03:117] LTESDK [LAPI_NotiArm1Reset ] WTD:JAKE- LAPI_NotiArm1Reset : Hold[0]
[HCI] bSupportEARFCN_EXT:1
get TR1M Timer value is 35
NV Read center_address
get smsOverIMS value is 0
[2013-06-20 14:00:03:166] LTE_CM [cm_set_SMSConfigRequest ] SMS ## Set SMS CONFIG
- SMS over SGS : [1]
- SMS over IMS : [0]
[HCI] bUICCNormalFID_HCI:1
Config type :0x0
lted:
OPERATIONAL MODE(DEV_IDX(1))
lted: SELF CELL SEARCH : DISALBE
lted: SELF ATTACH : DISALBE
lted: OFFLINE INCLUDE DEATCH : DISALBE
lted:
IMS AND SMS INFO(DEV_IDX(1))
lted: SMS FORMAT : 3GPP
lted: SMS WRITE : NV
lted: IMS TEST MODE : OFF
lted: SMS OVER IP NET : OFF
GET_SMS_AND_IMS ==========================================>
> SMS_MO_FORMAT(1) SMS_STORAGE(0) IMS_TEST_MODE(0) SMS_OVER_IP(0)
lted:
PLMN SEARCH INTERVAL(DEV_IDX(1))
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted: INTERVAL : 0, COUNT : 0
lted:
CURRENT OPERATOR(DEV_IDX(1)) : None (Default)
[LTE_NV] LTE NV Write Skip (0:LTE_INFO, 0x8d, 4)
setUcfgExtendEarfcnType() result is 1
set Earfcn type is 4 Bytes
lted:
SMS SUBMIT RESPONSE(DEV_IDX(1))
[START] SMS SUBMIT RSP : sms_submit_rsp
sms_submit_rsp_info->result : 0
sms_submit_rsp_info->type : 0x7
sms_submit_rsp_info->len : 2
CFG_WRITE_CNF : result(0) | item(3)
[END] SMS SUBMIT RSP
setUiccNormalFidType() result is 1
UICC Normal Fid Type is Normal UICC Fid
lted:
GET PROTOCOL INFO ERROR RESULT : 1 (TYPE 6/DEV1)
[Error] GET PROTOCOL INFO ERROR RESULT : 1 (TYPE 6/DEV1)
lted:
ONLINE RESPONSE(DEV_IDX(1))
lted: Result : 0
lted: lte_watchdog_is_enable [0]
pwrscn parameters:
en = 2
th = -256.0
bw = 0
cal = 13.0
win = 9600
Parameters:
sync-time-ofs = 0
rxtimer_wait = 0
dbg = 0x7
option = 0xeb8001
adc_sample_freq = 1 0 0 0
agc_log = 0
afc_log = 0
sync-pss-iter = 2
pss parameters:
lted: [online_request]Watchdog First start
th1 =SMSMGR : bSmsFormat(3GPP)
0.039
th2 = 0.029
th3 = 0.301
acc = 2
gain = 72 142
gain_th = 0
gain_step = 0
acx = 1 10
foe-skip = 0
foe-acc = 2
foe-mode = 0
cinr-th = -10.0
time_ofs = -1
inter_mgn = 20.0
ant_sel = 0
nll = 5
Don't PDN Connect Req. by BIP OPEN-CH
OK
OK
Tx Gain Offset : 16
Tx power reduction(MPR/AMPR) is Off(w/max pwr on each cc) in signalling mode
Parameters:
periodic = 0
fix_boi = 63
add_boi = 0
dis_zero = 0
tmp_tcp = 0
tmp_burst = 7000
tmp_btime = 25
tmp_least = 50
lcgid = 255
dim = 0
bitmap = 0
[SMS]LTE PS INIT Completed
[SMS]Start
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 5
uart port[1] fc=0 cr=0000002b
lted:
UICC MSG FROM DEVICE(DEV_IDX(1))
lted: UICC Status : 0
lted: UICC App Type : 1
atcm: atc_ind_uicc_from_device(0, 0, 0)
lteautocm: [BAND] CMD(wan/lte/band/full) VALUE(NULL)
lteautocm: [BAND] CMD(wan/lte/band/block) VALUE(NULL)
lted_client_init_ex successg_t3402_timer_value is 720000
lted:
GET EMM NI REATTACH CONROLE RSP(DEV_IDX(1))
lteautocm: NAS Signaling Priority : Not Ready !!
lteautocm: NMO I Behavior : Not Ready !!
lteautocm: Attach With IMSI : Not Ready !!
lteautocm: Minimum Periodic Search Timer(enable) : Not Ready !!
lteautocm: Timer T3245 Behavior : Not Ready !!
lteautocm: Override NAS Signaling Low Priority : Not Ready !!
lteautocm: Extended Access Barring : Not Ready !!
lteautocm: Override Extended Access Barring : Not Ready !!
lteautocm: Fast First Higher Priority PLMN Search : Not Ready !!
lteautocm: EUTRA Disabling Allowed For EMM Cause 15 : Not Ready !!
lteautocm: SM Retry Wait Time(enable) : Not Ready !!
lteautocm: get_nas_config_parameter_set(), num_of_list:0

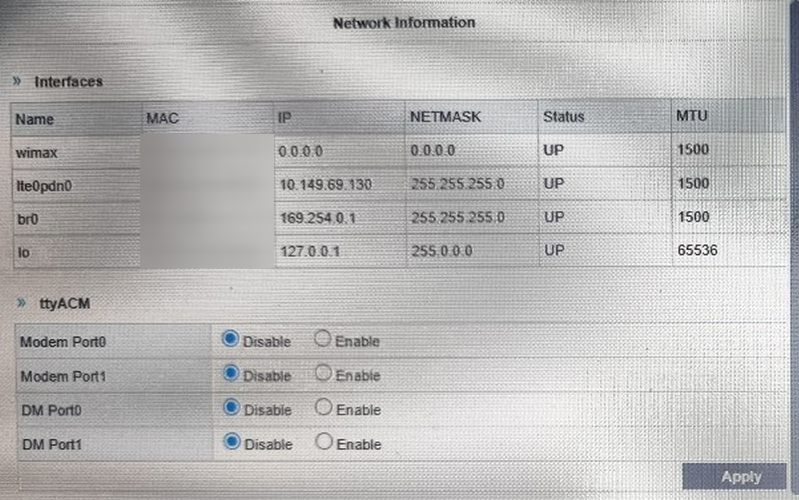

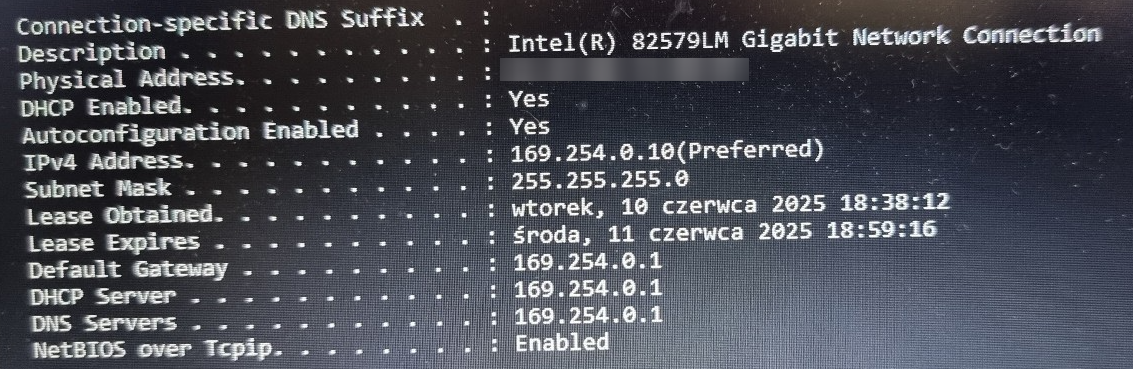

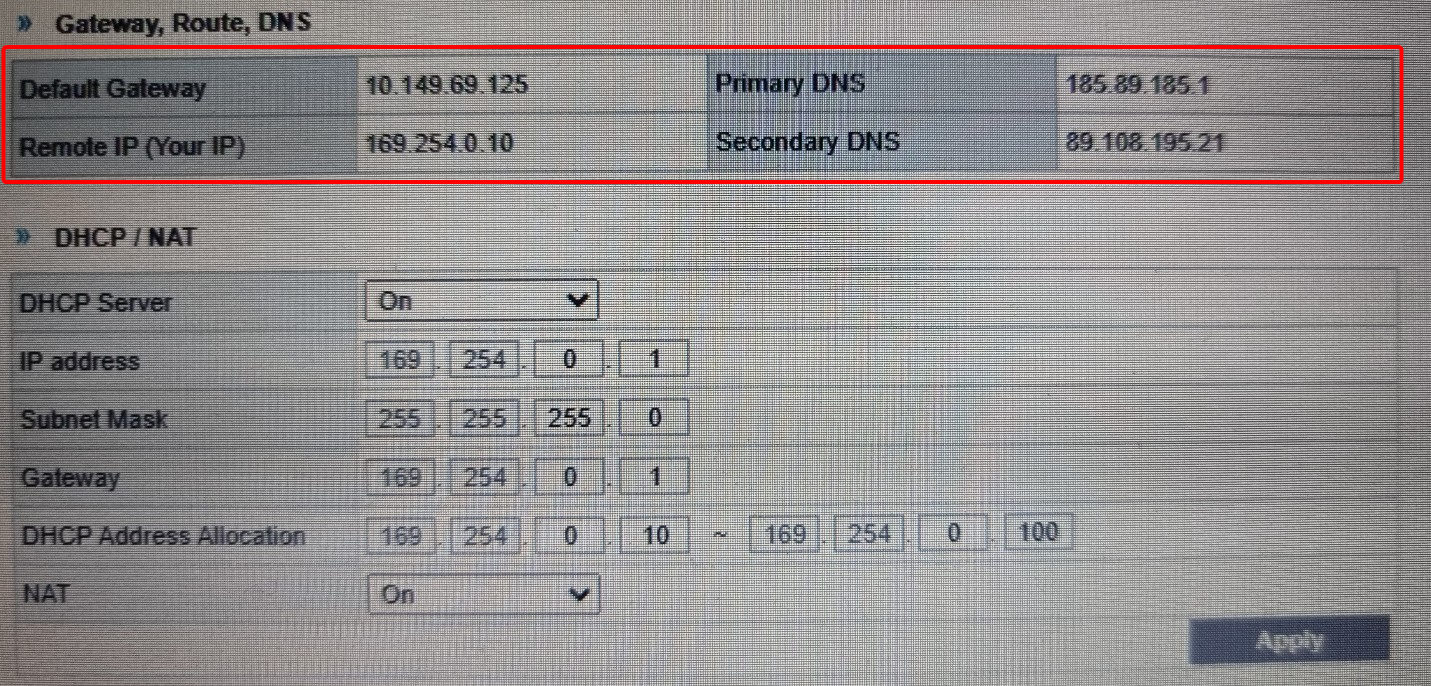

Na razie na więcej eksperymentów nie miałem czasu.
100Mb/s - 25Gb/s
