1,201 Odpowiedź przez joszik

  • joszik
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-03-19
  • Posty: 8

Odp: ZTE MF286R - OpenWrt

config defaults
    option syn_flood    1
    option input        REJECT
    option output        ACCEPT
    option forward        REJECT
# Uncomment this line to disable ipv6 rules
#    option disable_ipv6    1

config zone
    option name        lan
    list   network        'lan'
    option input        ACCEPT
    option output        ACCEPT
    option forward        ACCEPT

config zone
    option name        wan
    list   network        'wan'
    list   network        'wan6'
    option input        REJECT
    option output        ACCEPT
    option forward        REJECT
    option masq        1
    option mtu_fix        1

config forwarding
    option src        lan
    option dest        wan

# We need to accept udp packets on port 68,
# see https://dev.openwrt.org/ticket/4108
config rule
    option name        Allow-DHCP-Renew
    option src        wan
    option proto        udp
    option dest_port    68
    option target        ACCEPT
    option family        ipv4

# Allow IPv4 ping
config rule
    option name        Allow-Ping
    option src        wan
    option proto        icmp
    option icmp_type    echo-request
    option family        ipv4
    option target        ACCEPT

config rule
    option name        Allow-IGMP
    option src        wan
    option proto        igmp
    option family        ipv4
    option target        ACCEPT

# Allow DHCPv6 replies
# see https://github.com/openwrt/openwrt/issues/5066
config rule
    option name        Allow-DHCPv6
    option src        wan
    option proto        udp
    option dest_port    546
    option family        ipv6
    option target        ACCEPT

config rule
    option name        Allow-MLD
    option src        wan
    option proto        icmp
    option src_ip        fe80::/10
    list icmp_type        '130/0'
    list icmp_type        '131/0'
    list icmp_type        '132/0'
    list icmp_type        '143/0'
    option family        ipv6
    option target        ACCEPT

# Allow essential incoming IPv6 ICMP traffic
config rule
    option name        Allow-ICMPv6-Input
    option src        wan
    option proto    icmp
    list icmp_type        echo-request
    list icmp_type        echo-reply
    list icmp_type        destination-unreachable
    list icmp_type        packet-too-big
    list icmp_type        time-exceeded
    list icmp_type        bad-header
    list icmp_type        unknown-header-type
    list icmp_type        router-solicitation
    list icmp_type        neighbour-solicitation
    list icmp_type        router-advertisement
    list icmp_type        neighbour-advertisement
    option limit        1000/sec
    option family        ipv6
    option target        ACCEPT

# Allow essential forwarded IPv6 ICMP traffic
config rule
    option name        Allow-ICMPv6-Forward
    option src        wan
    option dest        *
    option proto        icmp
    list icmp_type        echo-request
    list icmp_type        echo-reply
    list icmp_type        destination-unreachable
    list icmp_type        packet-too-big
    list icmp_type        time-exceeded
    list icmp_type        bad-header
    list icmp_type        unknown-header-type
    option limit        1000/sec
    option family        ipv6
    option target        ACCEPT

config rule
    option name        Allow-IPSec-ESP
    option src        wan
    option dest        lan
    option proto        esp
    option target        ACCEPT

config rule
    option name        Allow-ISAKMP
    option src        wan
    option dest        lan
    option dest_port    500
    option proto        udp
    option target        ACCEPT


### EXAMPLE CONFIG SECTIONS
# do not allow a specific ip to access wan
#config rule
#    option src        lan
#    option src_ip    192.168.45.2
#    option dest        wan
#    option proto    tcp
#    option target    REJECT

# block a specific mac on wan
#config rule
#    option dest        wan
#    option src_mac    00:11:22:33:44:66
#    option target    REJECT

# block incoming ICMP traffic on a zone
#config rule
#    option src        lan
#    option proto    ICMP
#    option target    DROP

# port redirect port coming in on wan to lan
#config redirect
#    option src            wan
#    option src_dport    80
#    option dest            lan
#    option dest_ip        192.168.16.235
#    option dest_port    80
#    option proto        tcp

# port redirect of remapped ssh port (22001) on wan
#config redirect
#    option src        wan
#    option src_dport    22001
#    option dest        lan
#    option dest_port    22
#    option proto        tcp

### FULL CONFIG SECTIONS
#config rule
#    option src        lan
#    option src_ip    192.168.45.2
#    option src_mac    00:11:22:33:44:55
#    option src_port    80
#    option dest        wan
#    option dest_ip    194.25.2.129
#    option dest_port    120
#    option proto    tcp
#    option target    REJECT

#config redirect
#    option src        lan
#    option src_ip    192.168.45.2
#    option src_mac    00:11:22:33:44:55
#    option src_port        1024
#    option src_dport    80
#    option dest_ip    194.25.2.129
#    option dest_port    120
#    option proto    tcp

1,202 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

dlatego że sekcję nazwałeś WAN a nie wan. Skoro zmieniłeś już nazwę to dodaj w firewallu WAN do strefy wan lub zmień tą nazwę na wan małymi literami. To ma znaczenie.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,203 Odpowiedź przez joszik

  • joszik
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-03-19
  • Posty: 8

Odp: ZTE MF286R - OpenWrt

Po zmianach na 'wan' wszystko smiga na 23.05
Masz na mysli te poprawki (Post 277)?

Cezary napisał/a:

Dla chętnych, tu: https://dl.eko.one.pl/test/zte_mf286r/2 … 286r.patch jest łatka na comgt którą wymaga modem. Wymagana jest także dodatkowo łatka na rndis która jest opisana w tym poście: https://forum.openwrt.org/t/problem-wit … 7?u=cezary

Ustawienie połączenia robi się tak samo jak dla ncm, czyli:

    config 'interface' 'wan'
        option 'proto' 'ncm'
        option 'device' '/dev/ttyACM0'
        option 'apn' 'internet'
        option delay 10

Należy pamiętać że mamy tylko jeden interfejs szeregowy, więc w momencie kiedy modem będzie próbował nawiązywać połączenie to żaden inny proces nie może korzystać z tego interfejsu - odczytywanie pasma, ustawień modemu, smsy czy co tam komu przyjdzie do głowy. Więc jak ktoś ma własne skrypty to musi to uwzględnić.

Jeżeli modem nie chce się połączyć, a ifstatus wan pokaże że NO_DEVICE czy coś podobnego to należy wykonać

ifdown wan
ACTION=add DEVICENAME=ttyACM0 sh /etc/hotplug.d/tty/30-3g
ifup wan

1,204 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

Nie, nie te. Te to już dawno są w openwrt, chodziło o zmianę ncm.sh żeby nie odczytywał producenta modemu tylko na stałe to miał wbite.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,205 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

@joszik: sprawdź 24.10 z tym: https://github.com/openwrt/openwrt/pull/18460

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,206 Odpowiedź przez chemik89

  • Zarejestrowany: 2017-06-08
  • Posty: 404

Odp: ZTE MF286R - OpenWrt

[   17.000000] usbserial: USB Serial Driver core
[   17.060000] Initializing USB Mass Storage driver...
[   17.060000] usbcore: registered new interface driver usb-storage
[   17.070000] USB Mass Storage support registered.
[   17.090000] driver_info->flags 1020 idVendor 19d2 idProduct 1489
[   17.100000] cdc_ether 1-1:1.6: ecm0: register 'cdc_ether' at usb-ehci-platfor                                                                                                                                   m.0-1, CDC Ethernet Device, 66:c6:a7:b1:74:27
[   17.110000] usbcore: registered new interface driver cdc_ether
[   17.190000] generic_rndis_bind: rx_urb_size: 0x3e80
[   17.190000] generic_rndis_bind: data zero copy=1
[   17.200000] driver_info->flags 3238 idVendor 19d2 idProduct 1489
[   17.210000] rndis_host 1-1:1.0: usb0: register 'rndis_host' at usb-ehci-platf                                                                                                                                   orm.0-1, RNDIS device, 1a:ab:e3:99:52:ba
[   17.220000] usbcore: registered new interface driver rndis_host
[   17.280000] USB Serial support registered for GSM modem (1-port)
[   17.290000] usbcore: registered new interface driver option
[   17.290000] option: v0.7.2:USB Driver for GSM modems
[   17.360000] fuse init (API version 7.18)
[   18.150000] yaffs: dev is 32505864 name is "mtdblock8" rw
[   18.150000] yaffs: passed flags ""
[   18.190000] yaffs: dev is 32505871 name is "mtdblock15" rw
[   18.190000] yaffs: passed flags ""
rm: can't remove '/etc_rw/fota/cp_failure_flag': No such file or directory
▒

U-Boot 1.1.4 (May 13 2021 - 05:37:00)

ap152 - Dragonfly 1.0DRAM:
sri
ath_ddr_initial_config(278): (ddr2 init)
ath_sys_frequency: cpu 775 ddr 650 ahb 258
Tap values = (0xf, 0xf, 0xf, 0xf)
128 MB
Top of RAM usable for U-Boot at: 88000000
Reserving 659k for U-Boot at: 87f58000
Reserving 192k for malloc() at: 87f28000
Reserving 44 Bytes for Board Info at: 87f27fd4
Reserving 36 Bytes for Global Data at: 87f27fb0
Reserving 128k for boot params() at: 87f07fb0
Stack Pointer at: 87f07f98
Now running in RAM - U-Boot at: 87f58000
Flash Manuf Id 0xc8, DeviceId0 0x40, DeviceId1 0x15
flash size 2MB, sector count = 32
Flash:  2 MB
*** Warning - bad CRC, using default environment

Power up PLL with outdiv = 0 then switch to 3
In:    serial
Out:   serial
Err:   serial
Net:   ath_gmac_enet_initialize...
No valid address in Flash. Using fixed address
ath_gmac_enet_initialize: reset mask:c02200
athr_mgmt_init (MDC/MDIO config)::done
Dragonfly  ----> S17 PHY *
athrs17_reg_init: complete
Max resets limit reached exiting...
athr_gmac_sgmii_setup SGMII done
: cfg1 0x80000000 cfg2 0x7114
eth0: 00:03:7f:ff:ff:ff
ath_gmac_phy_setup
eth0 up
eth0
Qualcomm Atheros SPI NAND Driver, Version 0.1 (c) 2014  Qualcomm Atheros Inc.
ath_spi_nand_ecc: furture feat = 0x10
ath_spi_nand_ecc: middle feat = 0x10
zte ath_spi_nand_read_id 0xc8d1
zte ath_spi_nand_read_id 0xc8d1c8
zte debug gd 128 oob
====== NAND Parameters ======
sc addr = 0x87fa6d10 page(write size) = 0x800 (erase size) block = 0x20000
Setting 0x181162c0 to 0x4b962100
Uaztemain: enter into !
ZTE_InitFotaFlashPara: nand_curr_device=0
zte_getHandOffState: read data=0x20 from 0x0
Hit any key to stop autoboot:  0

Loading from device 0: ath-spi-nand (offset 0x1800000)
   Image Name:   MIPS OpenWrt Linux-3.3.8
   Created:      2022-06-10  18:13:55 UTC
   Image Type:   MIPS Linux Multi-File Image (lzma compressed)
   Data Size:    1210077 Bytes =  1.2 MB
   Load Address: 80060000
   Entry Point:  80060000
   Contents:
   Image 0:  1210069 Bytes =  1.2 MB
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
ath_spi_nand_page_read :status=0x1
## Booting image at 81000000 ...
   Image Name:   MIPS OpenWrt Linux-3.3.8
   Created:      2022-06-10  18:13:55 UTC
   Image Type:   MIPS Linux Multi-File Image (lzma compressed)
   Data Size:    1210077 Bytes =  1.2 MB
   Load Address: 80060000
   Entry Point:  80060000
   Contents:
   Image 0:  1210069 Bytes =  1.2 MB
   Verifying Checksum at 0x81000040 ...OK
   Uncompressing Multi-File Image ... OK
No initrd
## Transferring control to Linux (at address 80060000) ...
## Giving linux memsize in bytes, 134217728

Starting kernel ...

[    0.000000] Linux version 3.3.8 (zte@scl_xa24_241) (gcc version 4.6.3 20120201 (prerelease) (Linaro GCC 4.6-2012.02) ) #1 Sat Jun 11 02:13:06 CST 2022
[    0.000000] bootconsole [early0] enabled
[    0.000000] CPU revision is: 00019750 (MIPS 74Kc)
[    0.000000] SoC: Qualcomm Atheros QCA956X rev 0
[    0.000000] Clocks: CPU:775.000MHz, DDR:650.000MHz, AHB:258.333MHz, Ref:25.000MHz
[    0.000000] Determined physical RAM map:
[    0.000000]  memory: 08000000 @ 00000000 (usable)
[    0.000000] User-defined physical RAM map:
[    0.000000]  memory: 08000000 @ 00000000 (usable)
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Zone PFN ranges:
[    0.000000]   Normal   0x00000000 -> 0x00008000
[    0.000000] Movable zone start PFN for each node
[    0.000000] Early memory PFN ranges
[    0.000000]     0: 0x00000000 -> 0x00008000
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 32512
[    0.000000] Kernel command line:  board=AP152 console=ttyS0,115200 mtdparts=spi0.0:640k(u-boot),128k(u-boot-env),1280k(reserved1);spi0.1:640k(fota-flag),512k(art),512k(mac),768k(reserved2),4m(cfg-param),4m(log),640k(oops),5m(reserved3),8m(web),3m(kernel),26m(rootfs),25m(data),50m(fota),29m@0x1800000(firmware) mem=128M rootfstype=squashfs,jffs2 noinitrd crashkernel=10M@20M oops=panic
[    0.000000] PID hash table entries: 512 (order: -1, 2048 bytes)
[    0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[    0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[    0.000000] Writing ErrCtl register=00000000
[    0.000000] Readback ErrCtl register=00000000
[    0.000000] Memory: 125784k/131072k available (2574k kernel code, 5288k reserved, 687k data, 228k init, 0k highmem)
[    0.000000] SLUB: Genslabs=9, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] NR_IRQS:83
[    0.000000] Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
[    0.060000] pid_max: default: 32768 minimum: 301
[    0.060000] Mount-cache hash table entries: 512
[    0.060000] Performance counters: mips/74K PMU enabled, 4 32-bit counters available to each CPU, irq 13
[    0.070000] NET: Registered protocol family 16
[    0.080000] gpiochip_add: registered GPIOs 0 to 22 on device: ath79
[    0.080000] MIPS: machine is Qualcomm Atheros AP152 reference board
[    0.090000]
[    0.090000] WLAN firmware dump buffer allocation of 2097152 bytes @ address 0x87a00000- SUCCESS !!!
[    0.100000] registering PCI controller with io_map_base unset
[    0.310000] bio: create slab <bio-0> at 0
[    0.310000] PCI host bridge to bus 0000:00
[    0.320000] pci_bus 0000:00: root bus resource [mem 0x12000000-0x13ffffff]
[    0.320000] pci_bus 0000:00: root bus resource [io  0x0001]
[    0.330000] pci 0000:00:00.0: BAR 0: assigned [mem 0x12000000-0x121fffff 64bit]
[    0.330000] pci 0000:00:00.0: using irq 40 for pin 1
[    0.340000] Switching to clocksource MIPS
[    0.340000] NET: Registered protocol family 2
[    0.350000] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.350000] TCP established hash table entries: 4096 (order: 3, 32768 bytes)
[    0.360000] TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
[    0.360000] TCP: Hash tables configured (established 4096 bind 4096)
[    0.370000] TCP reno registered
[    0.370000] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.380000] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.380000] NET: Registered protocol family 1
[    0.400000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.400000] JFFS2 version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    0.410000] msgmni has been set to 245
[    0.420000] io scheduler noop registered
[    0.420000] io scheduler deadline registered (default)
[    0.430000] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[    0.450000] serial8250.0: ttyS0 at MMIO 0x18020000 (irq = 11) is a 16550A
[    0.460000] console [ttyS0] enabled, bootconsole disabled
[    0.460000] console [ttyS0] enabled, bootconsole disabled
[    0.470000] m25p80 spi0.0: found gd25q16csig, expected m25p80
[    0.480000] m25p80 spi0.0: gd25q16csig (2048 Kbytes)
[    0.490000] 3 cmdlinepart partitions found on MTD device spi0.0
[    0.490000] Creating 3 MTD partitions on "spi0.0":
[    0.500000] 0x000000000000-0x0000000a0000 : "u-boot"
[    0.500000] 0x0000000a0000-0x0000000c0000 : "u-boot-env"
[    0.510000] 0x0000000c0000-0x000000200000 : "reserved1"
[    0.520000] zte gd nand
[    0.520000] NAND device: Manufacturer ID: 0xc8, Chip ID: 0xd1 (Giga Device NAND 128MiB 3,3V 8-bit)
[    0.530000] Scanning device for bad blocks
[    0.560000] Bad eraseblock 127 at 0x000000fe0000
[    0.740000] Bad eraseblock 1023 at 0x000007fe0000
[    0.750000] 14 cmdlinepart partitions found on MTD device spi0.1
[    0.760000] Creating 14 MTD partitions on "spi0.1":
[    0.760000] 0x000000000000-0x0000000a0000 : "fota-flag"
[    0.770000] 0x0000000a0000-0x000000120000 : "art"
[    0.770000] 0x000000120000-0x0000001a0000 : "mac"
[    0.780000] 0x0000001a0000-0x000000260000 : "reserved2"
[    0.790000] 0x000000260000-0x000000660000 : "cfg-param"
[    0.790000] 0x000000660000-0x000000a60000 : "log"
[    0.800000] 0x000000a60000-0x000000b00000 : "oops"
[    0.800000] 0x000000b00000-0x000001000000 : "reserved3"
[    0.810000] 0x000001000000-0x000001800000 : "web"
[    0.820000] 0x000001800000-0x000001b00000 : "kernel"
[    0.820000] 0x000001b00000-0x000003500000 : "rootfs"
[    0.830000] mtd: partition "rootfs" set to be root filesystem
[    0.840000] 0x000003500000-0x000004e00000 : "data"
[    0.840000] 0x000004e00000-0x000008000000 : "fota"
[    0.850000] 0x000001800000-0x000003500000 : "firmware"
[    0.990000] ag71xx_mdio: probed
[    1.000000] zte_nand_local_read():Reading Flash for Calibraton data from 0x0 and partition name is mac
[    1.010000] ***********************************************
[    1.010000] AG71XX using MAC@ - using d4:72:26:7c:fd:59
[    1.020000] ***********************************************
[    1.030000] eth0: Atheros AG71xx at 0xb9000000, irq 4
[    1.610000] eth0: Atheros AR8327 switch driver attached.
[    4.500000] ag71xx ag71xx.0: eth0: connected to PHY at ag71xx-mdio.0:00 [uid=004dd036, driver=Atheros AR8216/AR8236/AR8316]
[    4.510000] *************tian.zb test err=0***********************
[    4.520000] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[    4.530000] zte gpio_keys_polled_check_state:report code=358 state=0
[    4.530000] zte gpio_keys_polled_check_state:report code=352 state=0
[    4.540000] zte gpio_keys_polled_check_state:report code=238 state=0
[    4.550000] netem: version 1.3
[    4.550000] u32 classifier
[    4.550000]     Performance counters on
[    4.560000]     input device check on
[    4.560000]     Actions configured
[    4.560000] TCP cubic registered
[    4.570000] NET: Registered protocol family 17
[    4.570000] 8021q: 802.1Q VLAN Support v1.8
[    4.580000] ### of_selftest(): No testcase data in device tree; not running tests
[    4.610000] VFS: Mounted root (squashfs filesystem) readonly on device 31:13.
[    4.620000] Freeing unused kernel memory: 228k freed
init started: BusyBox v1.19.4 (2022-06-11 00:24:04 CST)
*****************ZTE rcS********************
call startup scripts here\n
[   11.180000] ssdk_plat_init start
[   11.190000] Register QCA PHY driver
[   11.190000] PHY ID is 0x4dd036
[   11.290000] qca probe f1 phy driver succeeded!
[   11.300000] qca-ssdk module init succeeded!
[   11.840000] NET: Registered protocol family 10
[   12.250000] SCSI subsystem initialized
[   12.880000] usbcore: registered new interface driver usbfs
[   12.890000] usbcore: registered new interface driver hub
[   12.900000] usbcore: registered new device driver usb
[   12.910000] Button Hotplug driver version 0.4.1
[   13.260000] NTFS driver 2.1.30 [Flags: R/O MODULE].
[   13.580000] Error: Driver 'gpio-keys-polled' is already registered, aborting...
[   14.010000] PPP generic driver version 2.4.2
[   14.260000] tun: Universal TUN/TAP device driver, 1.6
[   14.260000] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[   14.290000] NET: Registered protocol family 24
[   14.370000] bonding: Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011)
[   14.440000] ip_tables: (C) 2000-2006 Netfilter Core Team
[   14.750000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[   14.750000] ehci-platform ehci-platform.0: Generic Platform EHCI Controller
[   14.760000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[   14.800000] ehci-platform ehci-platform.0: irq 48, io mem 0x1b000000
[   14.820000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[   14.820000] hub 1-0:1.0: USB hub found
[   14.830000] hub 1-0:1.0: 1 port detected
[   14.830000] ehci-platform ehci-platform.1: Generic Platform EHCI Controller
[   14.840000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[   14.880000] ehci-platform ehci-platform.1: irq 49, io mem 0x1b400000
[   14.900000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[   14.900000] hub 2-0:1.0: USB hub found
[   14.910000] hub 2-0:1.0: 1 port detected
[   15.150000] usb 1-1: new high-speed USB device number 2 using ehci-platform
[   15.250000] nf_conntrack version 0.5.0 (1968 buckets, 7872 max)
[   15.630000] ZTE Generic Netlink Module Inserted without Lock
[   15.690000] xt_time: kernel timezone is -0000
[   16.110000] nf_conntrack_rtsp v0.6.21 loading
[   16.120000] nf_nat_rtsp v0.6.21 loading
[   16.200000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[   16.360000] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[   16.800000] AR71XX_RESET_REG_WDOG_CTRL: 0x0
[   16.800000]
[   16.870000] cdc_acm 1-1:1.2: This device cannot do calls on its own. It is not a modem.
[   16.880000] cdc_acm 1-1:1.2: ttyACM0: USB ACM device
[   16.880000] usbcore: registered new interface driver cdc_acm
[   16.890000] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[   16.980000] usbcore: registered new interface driver usbserial
[   16.980000] USB Serial support registered for generic
[   16.990000] usbcore: registered new interface driver usbserial_generic
[   17.000000] usbserial: USB Serial Driver core
[   17.050000] Initializing USB Mass Storage driver...
[   17.060000] usbcore: registered new interface driver usb-storage
[   17.060000] USB Mass Storage support registered.
[   17.080000] driver_info->flags 1020 idVendor 19d2 idProduct 1489
[   17.090000] cdc_ether 1-1:1.6: ecm0: register 'cdc_ether' at usb-ehci-platform.0-1, CDC Ethernet Device, 16:48:82:e5:91:91
[   17.100000] usbcore: registered new interface driver cdc_ether
[   17.180000] generic_rndis_bind: rx_urb_size: 0x3e80
[   17.190000] generic_rndis_bind: data zero copy=1
[   17.190000] driver_info->flags 3238 idVendor 19d2 idProduct 1489
[   17.200000] rndis_host 1-1:1.0: usb0: register 'rndis_host' at usb-ehci-platform.0-1, RNDIS device, 6e:66:04:55:4b:d4
[   17.210000] usbcore: registered new interface driver rndis_host
[   17.270000] USB Serial support registered for GSM modem (1-port)
[   17.280000] usbcore: registered new interface driver option
[   17.290000] option: v0.7.2:USB Driver for GSM modems
[   17.350000] fuse init (API version 7.18)
[   18.140000] yaffs: dev is 32505864 name is "mtdblock8" rw
[   18.150000] yaffs: passed flags ""
[   18.190000] yaffs: dev is 32505871 name is "mtdblock15" rw
[   18.200000] yaffs: passed flags ""
rm: can't remove '/etc_rw/fota/cp_failure_flag': No such file or directory
SOS: FLAG is mtdblock7
SOS: /etc_rw/fota/cfg_partiton_flag has content
[   19.560000] yaffs: dev is 32505863 name is "mtdblock7" rw
[   19.560000] yaffs: passed flags ""
space usage of /etc_rw/config is 29%
[   19.670000] yaffs: dev is 32505866 name is "mtdblock10" rw
[   19.670000] yaffs: passed flags ""
[   19.700000] ath79_spinand_read_page ecc err status=0x2
SOS: /etc_rw/config use mtdblock7, /zte_backup use mtdblock10, now doing backup!
rm: can't remove '/zte_backup/lost+found': Directory not empty
[   21.820000] Load cfg new driver...
[   21.830000] cfg init, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 578
[   21.840000]
[   21.840000] simcard_roam=Homewi
[   21.840000] 73696d636172645f726f616d3d486f6d65007769
[   21.950000]
[   21.950000]  cfg init end, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 637
[   21.960000] cfg init, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 578
[   21.980000]
[   21.980000] TESTBITSIGNINFO=0000
[   21.980000] 544553544249545349474e494e464f3d30303030
[   21.990000]
[   21.990000]  cfg init end, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 637
[   22.000000] cfg init, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 578
[   22.010000] cfg driver error: /etc_rw/inic/cert  open failure, file: /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c, line: 857!
[   22.030000]
[   22.030000]
[   22.030000] 0000000000000000000000000000000000000000
[   22.040000]
[   22.040000]  cfg init end, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 637
[   22.050000] cfg init, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 578
[   22.070000] cfg driver error: /etc_rw/inic/wapi  open failure, file: /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c, line: 857!
[   22.080000]
[   22.080000]
[   22.090000] 0000000000000000000000000000000000000000
[   22.090000]
[   22.090000]  cfg init end, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 637
[   22.120000] usbcore: registered new interface driver cdc_wdm
[   22.560000] usbcore: registered new interface driver qmi_wwan
mkdir: can't create directory '/dev/net': File exists
mknod: dev/net/tun: File exists
killall: syslogd: no process killed
*************ZTE Init Script*************
insmod: can't insert '/lib/modules/3.3.8/xt_time.ko': File exists
rmmod: can't unload 'shortcut_fe_drv': unknown symbol in module, or unknown parameter
[   23.720000] ipt_TRIGGER: module license 'unspecified' taints kernel.
[   23.730000] Disabling lock debugging due to kernel taint
[   23.730000] iptables target:TRIGGER __init
[   23.820000] usbcore: registered new interface driver cdc_ncm
enter is_fota_update_successed.
find a good block.
last find blk_num = 0
****fota_update_flag in /dev/mtd3 is  ****
Unable to open pidfile /var/run/nvramd.pid: No such file or directory
reboot_schedule is disabled
Create bridge br0..........
monitor:add@/devices/virtual/net/br0
monitor:ACTION=add
monitor:DEVPATH=/devices/virtual/net/br0
monitor:SUBSYSTEM=net
monitor:DEVTYPE=bridge
monitor:INTERFACE=br0
monitor:IFINDEX=7
monitor:SEQNUM=630
monitor:event { 'add', '' }
monitor:add@/devices/virtual/net/br0/queues/tx-0
monitor:ACTION=add
monitor:DEVPATH=/devices/virtual/net/br0/queues/tx-0
monitor:SUBSYSTEM=queues
monitor:SEQNUM=631
monitor:event { 'add', '' }
/etc/init.d/rcS: /etc/init.d/zte_init.sh: line 85: telnetd: not found

kupiłem 286 oraz 286d.

to log z tego pierwszego, która to wersja  ? najstarsza ? ma klapke i złącze baterii. T-mobile
Cholernie ciężko było rozebrać big_smile

edit:
hmm, R ?
[   21.820000] Load cfg new driver...
[   21.830000] cfg init, /home/zte/ci/workspace/Soft4_MF286R_TMOPL_CPE/qsdk/build_dir/linux-ar71xx_generic/cfg-1.0/cfg_param.c 578

https://github.com/kenavru/ZTE_MF_286
coś mam jeszcze z niego wygrzebać ? flash widze już zbiera bady


uname -a


BusyBox v1.19.4 (2022-06-11 00:24:04 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

cat /proc/cpuinfo
cat /sys/kernel/debug/usb/devices
cat /proc/mtd     MM           NM                    MMMMMMM          M       M
   $MMMMM        MMMMM                MMMMMMMMMMM      MMM     MMM
  MMMMMMMM     MM MMMMM.              MMMMM:MMMMMM:   MMMM   MMMMM
MMMM= MMMMMM  MMM   MMMM       MMMMM   MMMM  MMMMMM   MMMM  MMMMM'
MMMM=  MMMMM MMMM    MM       MMMMM    MMMM    MMMM   MMMMNMMMMM
MMMM=   MMMM  MMMMM          MMMMM     MMMM    MMMM   MMMMMMMM
MMMM=   MMMM   MMMMMM       MMMMM      MMMM    MMMM   MMMMMMMMM
MMMM=   MMMM     MMMMM,    NMMMMMMMM   MMMM    MMMM   MMMMMMMMMMM
MMMM=   MMMM      MMMMMM   MMMMMMMM    MMMM    MMMM   MMMM  MMMMMM
MMMM=   MMMM   MM    MMMM    MMMM      MMMM    MMMM   MMMM    MMMM
MMMM$ ,MMMMM  MMMMM  MMMM    MMM       MMMM   MMMMM   MMMM    MMMM
  MMMMMMM:      MMMMMMM     M         MMMMMMMMMMMM  MMMMMMM MMMMMMM
    MMMMMM       MMMMN     M           MMMMMMMMM      MMMM    MMMM
     MMMM          M                    MMMMMMM        M       M
       M
 ---------------------------------------------------------------
   For those about to rock... (QCA9558.LN, unknown)
 ---------------------------------------------------------------
admin@(none):~# cat /proc/cpuinfo
system type             : Qualcomm Atheros QCA956X rev 0
machine                 : Qualcomm Atheros AP152 reference board
processor               : 0
cpu model               : MIPS 74Kc V5.0
BogoMIPS                : 385.84
wait instruction        : yes
microsecond timers      : yes
tlb_entries             : 32
extra interrupt vector  : yes
hardware watchpoint     : yes, count: 4, address/irw mask: [0x0000, 0x0ff8, 0x0ff8, 0x0ffb]
ASEs implemented        : mips16 dsp
shadow register sets    : 1
kscratch registers      : 0
core                    : 0
VCED exceptions         : not available
VCEI exceptions         : not available

admin@(none):~# cat /sys/kernel/debug/usb/devices

T:  Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 1
B:  Alloc=  0/800 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 3.03
S:  Manufacturer=Linux 3.3.8 ehci_hcd
S:  Product=Generic Platform EHCI Controller
S:  SerialNumber=ehci-platform.1
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

T:  Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 1
B:  Alloc=  0/800 us ( 0%), #Int=  2, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 3.03
S:  Manufacturer=Linux 3.3.8 ehci_hcd
S:  Product=Generic Platform EHCI Controller
S:  SerialNumber=ehci-platform.0
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=480  MxCh= 0
D:  Ver= 2.00 Cls=ef(misc ) Sub=02 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=19d2 ProdID=1489 Rev=ff.ff
S:  Manufacturer=ZTE
S:  Product=ZTE
S:  SerialNumber=123456789ABCD
C:* #Ifs= 8 Cfg#= 1 Atr=e0 MxPwr=  2mA
A:  FirstIf#= 0 IfCount= 2 Cls=e0(wlcon) Sub=01 Prot=03
A:  FirstIf#= 2 IfCount= 2 Cls=02(comm.) Sub=02 Prot=01
A:  FirstIf#= 6 IfCount= 2 Cls=02(comm.) Sub=06 Prot=00
I:* If#= 0 Alt= 0 #EPs= 1 Cls=e0(wlcon) Sub=01 Prot=03 Driver=rndis_host
E:  Ad=82(I) Atr=03(Int.) MxPS=   8 Ivl=1ms
I:* If#= 1 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=rndis_host
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 2 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=02 Prot=01 Driver=cdc_acm
E:  Ad=84(I) Atr=03(Int.) MxPS=  10 Ivl=32ms
I:* If#= 3 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=cdc_acm
E:  Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 4 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=00 Prot=ff Driver=(none)
E:  Ad=85(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 5 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=42 Prot=01 Driver=usbfs
E:  Ad=86(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 6 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=06 Prot=00 Driver=cdc_ether
E:  Ad=88(I) Atr=03(Int.) MxPS=  16 Ivl=32ms
I:  If#= 7 Alt= 0 #EPs= 0 Cls=0a(data ) Sub=00 Prot=00 Driver=cdc_ether
I:* If#= 7 Alt= 1 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=cdc_ether
E:  Ad=87(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
admin@(none):~# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 000a0000 00010000 "u-boot"
mtd1: 00020000 00010000 "u-boot-env"
mtd2: 00140000 00010000 "reserved1"
mtd3: 000a0000 00020000 "fota-flag"
mtd4: 00080000 00020000 "art"
mtd5: 00080000 00020000 "mac"
mtd6: 000c0000 00020000 "reserved2"
mtd7: 00400000 00020000 "cfg-param"
mtd8: 00400000 00020000 "log"
mtd9: 000a0000 00020000 "oops"
mtd10: 00500000 00020000 "reserved3"
mtd11: 00800000 00020000 "web"
mtd12: 00300000 00020000 "kernel"
mtd13: 01a00000 00020000 "rootfs"
mtd14: 01900000 00020000 "data"
mtd15: 03200000 00020000 "fota"
mtd16: 01d00000 00020000 "firmware"

1,207 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

Tak, to "R" jest.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,208 Odpowiedź przez chemik89 (edytowany przez chemik89 2025-05-03 22:28:36)

  • Zarejestrowany: 2017-06-08
  • Posty: 404

Odp: ZTE MF286R - OpenWrt

hmm,

gcom -d /dev/ttyACM0 -s /etc/gcom/getcardinfo.gcom

+CGMI: "ZTE CORPORATION"

OK



root@OpenWrt:~# cat /sys/kernel/debug/usb/devices

T:  Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 1
B:  Alloc=  0/800 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 6.06
S:  Manufacturer=Linux 6.6.86 ehci_hcd
S:  Product=EHCI Host Controller
S:  SerialNumber=1b000000.usb
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=480  MxCh= 0
D:  Ver= 2.00 Cls=ef(misc ) Sub=02 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=19d2 ProdID=1489 Rev=ff.ff
S:  Manufacturer=ZTE
S:  Product=ZTE
S:  SerialNumber=123456789ABCD
C:* #Ifs= 8 Cfg#= 1 Atr=e0 MxPwr=  2mA
A:  FirstIf#= 0 IfCount= 2 Cls=e0(wlcon) Sub=01 Prot=03
A:  FirstIf#= 2 IfCount= 2 Cls=02(comm.) Sub=02 Prot=01
A:  FirstIf#= 6 IfCount= 2 Cls=02(comm.) Sub=06 Prot=00
I:* If#= 0 Alt= 0 #EPs= 1 Cls=e0(wlcon) Sub=01 Prot=03 Driver=rndis_host
E:  Ad=82(I) Atr=03(Int.) MxPS=   8 Ivl=1ms
I:* If#= 1 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=rndis_host
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 2 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=02 Prot=01 Driver=cdc_acm
E:  Ad=84(I) Atr=03(Int.) MxPS=  10 Ivl=32ms
I:* If#= 3 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=cdc_acm
E:  Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 4 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=00 Prot=ff Driver=(none)
E:  Ad=85(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 5 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=42 Prot=01 Driver=(none)
E:  Ad=86(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 6 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=06 Prot=00 Driver=cdc_ether
E:  Ad=88(I) Atr=03(Int.) MxPS=  16 Ivl=32ms
I:  If#= 7 Alt= 0 #EPs= 0 Cls=0a(data ) Sub=00 Prot=00 Driver=cdc_ether
I:* If#= 7 Alt= 1 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=cdc_ether
E:  Ad=87(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms

T:  Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 1
B:  Alloc=  0/800 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 6.06
S:  Manufacturer=Linux 6.6.86 ehci_hcd
S:  Product=EHCI Host Controller
S:  SerialNumber=1b400000.usb
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

1,209 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

Co "hm"?

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,210 Odpowiedź przez chemik89

  • Zarejestrowany: 2017-06-08
  • Posty: 404

Odp: ZTE MF286R - OpenWrt

jak sprawdzic wersje modemu bez 3ginfo ?

1,211 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

Jeżeli nie masz picocoma to zrób własny skrypt na wzór /etc/gcom/getcardinfo.gcom tylko zamiast at+cgmi zrób ati lub at+cgmm

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,212 Odpowiedź przez chemik89

  • Zarejestrowany: 2017-06-08
  • Posty: 404

Odp: ZTE MF286R - OpenWrt

cgmr dało co chciałem. 03. Czyli wypadałoby jeszcze aktualizacje zrobić ze stocka ?

gcom -d /dev/ttyACM0 -s /etc/gcom/test.gcom

Marvell

OK

+CGMM: "MF286R"

OK

BD_TMOPLMF286MODULEV1.0.2B03

OK

1,213 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

O ile w ogóle jakakolwiek aktualizacja będzie, bo chyba nic powyżej tego nie było.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,214 Odpowiedź przez chemik89

  • Zarejestrowany: 2017-06-08
  • Posty: 404

Odp: ZTE MF286R - OpenWrt

widziałem że tutaj miewają i w B13

1,215 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

Dla softu NORDIC'a.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,216 Odpowiedź przez sn3c

  • sn3c
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-07-23
  • Posty: 7

Odp: ZTE MF286R - OpenWrt

Nie mam już siły do tej urwy...
Mf286R obecnie z MiFi OpenWrt 24.10-SNAPSHOT, r28744-009aad8a0 ale problem jest też na każdym innym obrazie.

Wystarczy, że odpalę sobie YouTube i po kilkunastu minutach router się restartuje bez żadnego info.
Nie jest to problem z zasilaczem bo testowałem nawet na laboratoryjnym tylko jest to problem z modemem.
Modem ma firmware BD_MF286MODV1.0.0B03.
Jak podłączam E3372 to chodzi stabilnie bez żadnych restartów.

Miał ktoś taki problem samoczynnym restartowaniem?

1,217 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

I słusznie, wywal go na zbity pysk, bo jego przydatność jest kontrowersyjna.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,218 Odpowiedź przez sn3c

  • sn3c
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-07-23
  • Posty: 7

Odp: ZTE MF286R - OpenWrt

Cezary napisał/a:

I słusznie, wywal go na zbity pysk, bo jego przydatność jest kontrowersyjna.

A nawiązując do twojej stopki to czy ten zbity pysk to jest u Ciebie w paczkomacie?

Mógłbyś polecić coś taniego co będzie działać?
Potrzebuje stabilnego LTE i tailscale

1,219 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

ZTE MF286D jeszcze dostaniesz. Doskonale się u mnie spisywał przed dłuższy okres czasu.

Co do paczkomatu - nie, nie jestem tym modelem zainteresowany. Jak już to wystaw na allegro, może zajdzie się chętny.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,220 Odpowiedź przez sn3c

  • sn3c
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-07-23
  • Posty: 7

Odp: ZTE MF286R - OpenWrt

Powiem Ci szczerze, że wstyd by mi było coś takiego sprzedawać wiedząc jaki to szajs.
Za twoją radą będę polował na w miarę tani MF286D na jakichś olxach.

Jakby ktoś miał ten problem z resetowaniem routera to wygląda na to, że ustawienie na sztywno tylko dwóch bandów (u mnie B1 i B7) rozwiązuje ten problem - aktualnie już 3h leci test bez żadnego reboota.
A jeśli ktoś trafił na ten temat rozważając zakup MF286R to stanowczo odradzam, szkoda nerwów.

1,221 Odpowiedź przez sn3c

  • sn3c
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-07-23
  • Posty: 7

Odp: ZTE MF286R - OpenWrt

Powiem Ci szczerze, że wstyd by mi było coś takiego sprzedawać wiedząc jaki to szajs.
Za twoją radą będę polował na w miarę tani MF286D na jakichś olxach.

Jakby ktoś miał ten problem z resetowaniem routera to wygląda na to, że ustawienie na sztywno tylko dwóch bandów (u mnie B1 i B7) rozwiązuje ten problem - aktualnie już 3h leci test bez żadnego reboota.
A jeśli ktoś trafił na ten temat rozważając zakup MF286R to stanowczo odradzam, szkoda nerwów.

Edit: @Cezary Mi to nadal nie daje spokoju więc zapytam czy z tym frameworkiem jest możliwość aktualizacji tego nieszczęsnego modemu?
I czy orientujesz się który z katalogu UPDATE to plik modemu?

1,222 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

Do "R" żadnego działającego frameworka nie było.

Naprawdę go wywal. Szkoda nerwów.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,223 Odpowiedź przez sn3c

  • sn3c
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-07-23
  • Posty: 7

Odp: ZTE MF286R - OpenWrt

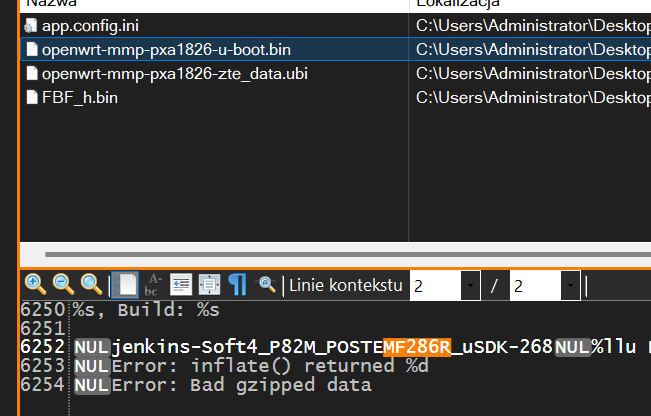

to jest framework do R tylko od włoskiego operatora POSTE jest też wersja T-Mobile
https://i.postimg.cc/Dw7t0y3b/98901198-A418-4-F8-D-B11-F-207-A549-E6159.png

1,224 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,862

Odp: ZTE MF286R - OpenWrt

Dobrze widzieć. Ktoś wgrywał tym soft?

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

1,225 Odpowiedź przez sn3c

  • sn3c
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2025-07-23
  • Posty: 7

Odp: ZTE MF286R - OpenWrt

tak sporo osób wątek na włoskim forum jest bardzo długi:
https://forum.fibra.click/d/9519-debran … zte-mf286r
