1 Temat przez smereka (edytowany przez smereka 2023-02-05 19:38:48)

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Temat: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Stworzyłem ten wątek bo wpadł w moje ręce taki o to pacjent. Pomijając jego uszkodzenie i dolegliwości mu doskwierające to postanowiłem wgrać mu openwrt. Za jakiś czas to uczynię puki co testuję go na OFW. Niebawem wstawię też pomiary elektryczne.
W związku z faktem że zaczęła się delikatna dyskusja w innym wątku to tutaj odpowiem i tutaj proponuję dalej ciągnąć zagadnienia związane w tym sprzętem.


Payti napisał/a:

A jak z głośnością tego wiatraczka chłodzenia jest w Rax120v2? Słychać go w dzień lub nocą jak jest cisza ?

Jak rozpoznać po kodzie że to wersja Rax120v2 , bo była też wcześniejsza Rax120?


Przez 5h zanim zabrałem go do domu działał w pomieszczeniu o temperaturze około 24 stopni celsjusza. Obudowa była na prawdę ciepła w porównaniu do xiaomi3600 to bardzo ciepła. Obciążyłem go (tvp stream i w drugiej zakładce youtybe muzyka relaksacyjna) 2 laptopami na 5GHz i gniazdko dsp-w215 po 2,4 było podłączone. Nie mierzyłem ze stoperem ale powiedzmy tak co 10-15 minut włączał się wiatraczek na maksymalnie 20-35 sekund i się wyłączał. Głośność no subiektywnym odczuciem słychać go było muszę przyznać nie jakoś mocno ale słychać. Nie badałem czy to było jakoś specjalnie regularne zjawisko. Przebadam to na fest jak już będzie na nim openwrt.

Obecnie stoi w pomieszczeniu z temperaturą około 17-18 stopni to nie słyszałem czy się włączał czy nie. Jest zdecydowanie chłodniejszy niż przy 24 ale też i nie jest jakoś zbytnio obciążony ot net i czasami youtube, radio internetowe w tle chodzi.

Odnoście wersji czy v1 czy v2:

Na forum openwrt poruszyli tą kwestię:

https://forum.openwrt.org/t/adding-open … 12/75592/3

Niby piszą, że jak jest FCC ID to już wersja v2. Ja tego nie wiem nie sprawdzałem. Moja sztuka nie ma tego wpisu a jednak jest to wersja v2. Ktoś tam dalej wpisał, że w GUI można to sprawdzić. Ja kupowałem w ciemno bo sprzedający nie widział co to za wersja. Liczyłem po cichu, że tak będzie. I jak już go ożywiłem i to zobaczyłem krzyknąłem - hurra będzie opewnrt smile a jakby to była v1 to od radu bym sprzedał nawet poniżej kosztów zakupu jakby nie było chętnych bo po co mi sprzęt w męczarniach.

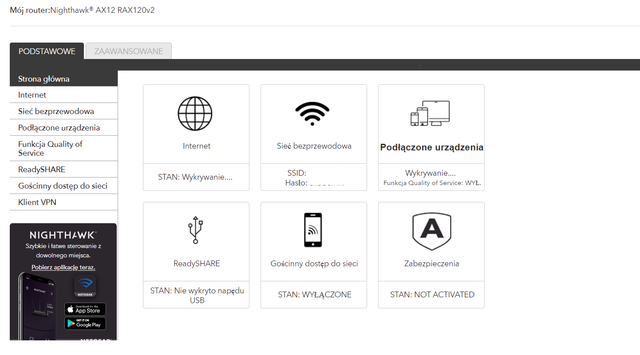

Tutaj macie zdjęcie jak to u mnie wygląda w gui:

https://i.ibb.co/7bn88YF/wersja-raxa.png

I to jest chyba jedyna metoda dająca konkretną odpowiedź na ów pytanie


Proponuję też troszeczkę ostudzić zapędy kupna tego sprzętu bez zapoznania się z informacjami, które to dotyczą tego sprzętu a które to można znaleźć w necie po wpisaniu frazy: "Rax120 rebooting"

Nie wiadomo do końca co jest tego przyczyną czy oprogramowanie czy usterka sprzętowa. W mojej sztuce puki co się nie objawiła.

Porównanie gabarytów do xiaomi ax3600

https://i.ibb.co/VjMw8zc/porownanie-z-xiaomi-ax.jpg

2 Odpowiedź przez Payti

  • Payti
  • Payti
  • Użytkownik
  • Nieaktywny
  • Zarejestrowany: 2012-01-05
  • Posty: 382

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Fajnie że założyłeś wątek o tym routerze. Generalnie to też wyczytałem narazie, że jedyna słuszna metoda by sprawdzić czy mamy v1 czy v2 to zalogowanie do GUI: AX12 RAX120v2 to mamy pewne info.

pozdr,

Banana Pi BPI-R3 + SFP GPON ONT Nokia G-010S-A + LTE FIBOCOM L860-GL-16 (OpenWrt 25.12-SNAPSHOT, kernel 6.12.71)
Xiaomi AX3600 (OpenWrt 25.12-SNAPSHOT, kernel 6.12.71)
Xiaomi AX3000T (OpenWrt 25.12-SNAPSHOT, kernel 6.12.71)
All OpenWRT compilations from ASU by @Cezary

3 Odpowiedź przez smereka (edytowany przez smereka 2023-02-13 13:07:02)

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Dobra pacjent na stół i lecimy. Wypatroszyłem go udało po wykręceniu śrub wkrętakiem rękoma go otworzyć bez uszkodzenia choć muszę przyznać nie łatwa to sztuka. Uarcik podlutowany i lecimy. Wgranie itb szybko poszło ale już sysupgrade marudzi i nie za bardzo wiem co go boli. Cezary rzuć proszę okiem:

Format: Log Type - Time(microsec) - Message - Optional Info
Log Type: B - Since Boot(Power On Reset),  D - Delta,  S - Statistic
S - QC_IMAGE_VERSION_STRING=BOOT.BF.3.3.1-00147
S - IMAGE_VARIANT_STRING=HAACANAZA
S - OEM_IMAGE_VERSION_STRING=CRM
S - Boot Config, 0x000002e5
B -       201 - PBL, Start
B -      2735 - bootable_media_detect_entry, Start
B -      3442 - bootable_media_detect_success, Start
B -      3447 - elf_loader_entry, Start
B -      6110 - auth_hash_seg_entry, Start
B -      6353 - auth_hash_seg_exit, Start
B -     68464 - elf_segs_hash_verify_entry, Start
B -    131160 - PBL, End
B -    145942 - SBL1, Start
B -    199165 - GCC [RstStat:0x10, RstDbg:0x600000] WDog Stat : 0x4
B -    205783 - pm_device_init, Start
B -    329369 - PM_SET_VAL:Skip
D -    122884 - pm_device_init, Delta
B -    331626 - pm_driver_init, Start
D -      5337 - pm_driver_init, Delta
B -    338153 - clock_init, Start
D -      2104 - clock_init, Delta
B -    342179 - boot_flash_init, Start
D -     12535 - boot_flash_init, Delta
B -    358405 - boot_config_data_table_init, Start
D -      3080 - boot_config_data_table_init, Delta - (575 Bytes)
B -    365908 - Boot Setting :  0x00000618
B -    369843 - CDT version:2,Platform ID:8,Major ID:1,Minor ID:0,Subtype:0
B -    376766 - sbl1_ddr_set_params, Start
B -    380579 - CPR configuration: 0x30c
B -    383934 - cpr_init, Start
B -    386801 - Rail:0 Mode: 5 Voltage: 816000
B -    391925 - CL CPR settled at 768000mV
B -    394731 - Rail:1 Mode: 5 Voltage: 880000
B -    399031 - Rail:1 Mode: 7 Voltage: 904000
D -     16531 - cpr_init, Delta
B -    405802 - Pre_DDR_clock_init, Start
B -    409920 - Pre_DDR_clock_init, End
B -    413214 - DDR Type : PCDDR3
B -    418978 - do ddr sanity test, Start
D -      1067 - do ddr sanity test, Delta
B -    423736 - DDR: Start of HAL DDR Boot Training
B -    428372 - DDR: End of HAL DDR Boot Training
B -    434167 - DDR: Checksum to be stored on flash is 146326827
B -    444385 - Image Load, Start
D -    224327 - QSEE Image Loaded, Delta - (1373936 Bytes)
B -    668773 - Image Load, Start
D -        61 - SEC Image Loaded, Delta - (0 Bytes)
B -    676459 - Image Load, Start
D -     10706 - DEVCFG Image Loaded, Delta - (26004 Bytes)
B -    687256 - Image Load, Start
D -     25285 - RPM Image Loaded, Delta - (105964 Bytes)
B -    712602 - Image Load, Start
D -     74938 - APPSBL Image Loaded, Delta - (451008 Bytes)
B -    787662 - QSEE Execution, Start
D -        61 - QSEE Execution, Delta
B -    793488 - USB D+ check, Start
D -         0 - USB D+ check, Delta
B -    799862 - SBL1, End
D -    656238 - SBL1, Delta
S - Flash Throughput, 6699 KB/s  (1958159 Bytes,  292305 us)
S - DDR Frequency, 466 MHz
S - Core 0 Frequency, 1651 MHz


U-Boot 2016.01 (Nov 12 2019 - 11:55:34 +0800)

Model: QCA, IPQ807x-HK01
U-boot dni1 V1.6 for DNI HW ID: 29765589; NAND flash 512MB; RAM 1024MB .
developed based on 'qsdk-ipq807x.ilq.10.0-spf.10.0.CS_patch_4'
DRAM:  smem ram ptable found: ver: 1 len: 4
1 GiB
NAND:  ONFI device found
ID = 1590acef
Vendor = ef
Device = ac
SF: Unsupported flash IDs: manuf 00, jedec 0000, ext_jedec 0000
ipq_spi: SPI Flash not found (bus/cs/speed/mode) = (0/0/48000000/0)
512 MiB
MMC:   <NULL>: 0
*** Warning - bad CRC, using default environment

In:    serial@78B3000
Out:   serial@78B3000
Err:   serial@78B3000
machid: 8010000
Net:   MAC0 addr:6c:cd:d6:bb:df:5d
PHY ID1: 0x4d
PHY ID2: 0xd0b1

NAND read: device 0 offset 0x7e00000, size 0x80000
 524288 bytes read: OK
bad magic on ETHPHYFW partition
PHY ID1: 0x3a1
PHY ID2: 0xb612
EDMA ver 1 hw init
Num rings - TxDesc:1 (0-0) TxCmpl:1 (7-7)
RxDesc:1 (15-15) RxFill:1 (7-7)
ipq807x_edma_alloc_rings: successfull
ipq807x_edma_setup_ring_resources: successfull
ipq807x_edma_configure_rings: successfull
ipq807x_edma_hw_init: successfull
eth0
Hit any key to stop autoboot:  0
IPQ807x# tftpboot openwrt-ipq807x-generic-netgear_rax120v2-initramfs-uImage.itb
ipq807x_eth_halt: done
eth0 PHY0 Down Speed :10 Half duplex
eth0 PHY1 up Speed :1000 Full duplex
eth0 PHY2 Down Speed :10 Half duplex
eth0 PHY3 Down Speed :10 Half duplex
eth0 PHY4 Down Speed :10 Half duplex
10M speed not supported
ipq807x_eth_init: done
Using eth0 device
TFTP from server 192.168.1.10; our IP address is 192.168.1.1
Filename 'openwrt-ipq807x-generic-netgear_rax120v2-initramfs-uImage.itb'.
Load address: 0x44000000
Loading: *
Got TFTP_OACK: TFTP remote port: changes from 69 to 59053
#################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #################################################################
         #######################################
         3.5 MiB/s
done
Bytes transferred = 12965644 (c5d70c hex)
ipq807x_eth_halt: done
IPQ807x# bootm
## Loading kernel from FIT Image at 44000000 ...
   Using 'config@hk01' configuration
   Trying 'kernel-1' kernel subimage
     Description:  ARM64 OpenWrt Linux-5.15.88
     Type:         Kernel Image
     Compression:  gzip compressed
     Data Start:   0x440000e8
     Data Size:    12918026 Bytes = 12.3 MiB
     Architecture: AArch64
     OS:           Linux
     Load Address: 0x41000000
     Entry Point:  0x41000000
     Hash algo:    crc32
     Hash value:   5270a7a5
     Hash algo:    sha1
     Hash value:   0cbc01b0b2239633ed1a80599633dae711e7bed3
   Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 44000000 ...
   Using 'config@hk01' configuration
   Trying 'fdt-1' fdt subimage
     Description:  ARM64 OpenWrt netgear_rax120v2 device tree blob
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0x44c51f34
     Data Size:    45710 Bytes = 44.6 KiB
     Architecture: AArch64
     Hash algo:    crc32
     Hash value:   bac2b7b0
     Hash algo:    sha1
     Hash value:   e6c97d5c82ca67c2719e203986e07682993b983d
   Verifying Hash Integrity ... crc32+ sha1+ OK
   Booting using the fdt blob at 0x44c51f34
   Uncompressing Kernel Image ... OK
   Loading Device Tree to 4a770000, end 4a77e28d ... OK
mtdids not defined, no default present
Using machid 0x8010000 from environment

Starting kernel ...

Jumping to AARCH64 kernel via monitor
[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[    0.000000] Linux version 5.15.88 (user@user-virtual-machine) (aarch64-openwr                                                                                                                                                             t-linux-musl-gcc (OpenWrt GCC 12.2.0 r21804+24-0a15bb6510) 12.2.0, GNU ld (GNU B                                                                                                                                                             inutils) 2.39) #0 SMP Tue Jan 17 06:26:02 2023
[    0.000000] Machine model: Netgear RAX120v2
[    0.000000] Zone ranges:
[    0.000000]   DMA      [mem 0x0000000040000000-0x000000007fffffff]
[    0.000000]   DMA32    empty
[    0.000000]   Normal   empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000040000000-0x0000000040ffffff]
[    0.000000]   node   0: [mem 0x0000000041000000-0x000000004a3fffff]
[    0.000000]   node   0: [mem 0x000000004a400000-0x000000004a5fffff]
[    0.000000]   node   0: [mem 0x000000004a600000-0x000000004aafffff]
[    0.000000]   node   0: [mem 0x000000004ab00000-0x00000000510fffff]
[    0.000000]   node   0: [mem 0x0000000051100000-0x000000007fffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000007fffffff]
[    0.000000] psci: probing for conduit method from DT.
[    0.000000] psci: PSCIv1.0 detected in firmware.
[    0.000000] psci: Using standard PSCI v0.2 function IDs
[    0.000000] psci: MIGRATE_INFO_TYPE not supported.
[    0.000000] psci: SMC Calling Convention v1.0
[    0.000000] psci: OSI mode supported.
[    0.000000] percpu: Embedded 17 pages/cpu s30360 r8192 d31080 u69632
[    0.000000] Detected VIPT I-cache on CPU0
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 258048
[    0.000000] Kernel command line: console=ttyMSM0,115200n8 ubi.mtd=rootfs root                                                                                                                                                             =/dev/ubiblock0_1
[    0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes,                                                                                                                                                              linear)
[    0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes, li                                                                                                                                                             near)
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 885288K/1048576K available (7424K kernel code, 848K rwdat                                                                                                                                                             a, 2040K rodata, 9344K init, 273K bss, 163288K reserved, 0K cma-reserved)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000]  Tracing variant of Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jif                                                                                                                                                             fies.
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    0.000000] Root IRQ handler: gic_handle_irq
[    0.000000] GICv2m: range[mem 0x0b00a000-0x0b00affc], SPI[448:479]
[    0.000000] arch_timer: cp15 and mmio timer(s) running at 19.20MHz (virt/virt                                                                                                                                                             ).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles:                                                                                                                                                              0x46d987e47, max_idle_ns: 440795202767 ns
[    0.000000] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 43980                                                                                                                                                             46511078ns
[    0.000128] Calibrating delay loop (skipped), value calculated using timer fr                                                                                                                                                             equency.. 38.40 BogoMIPS (lpj=192000)
[    0.000145] pid_max: default: 32768 minimum: 301
[    0.000302] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes, line                                                                                                                                                             ar)
[    0.000320] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes,                                                                                                                                                              linear)
[    0.001928] rcu: Hierarchical SRCU implementation.
[    0.002103] dyndbg: Ignore empty _ddebug table in a CONFIG_DYNAMIC_DEBUG_CORE                                                                                                                                                              build
[    0.002683] smp: Bringing up secondary CPUs ...
[    0.003280] Detected VIPT I-cache on CPU1
[    0.003349] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[    0.003974] Detected VIPT I-cache on CPU2
[    0.004016] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[    0.004592] Detected VIPT I-cache on CPU3
[    0.004630] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[    0.004696] smp: Brought up 1 node, 4 CPUs
[    0.004723] SMP: Total of 4 processors activated.
[    0.004731] CPU features: detected: 32-bit EL0 Support
[    0.004738] CPU features: detected: CRC32 instructions
[    0.004793] CPU features: emulated: Privileged Access Never (PAN) using TTBR0                                                                                                                                                             _EL1 switching
[    0.004803] CPU: All CPU(s) started at EL1
[    0.004825] alternatives: patching kernel code
[    0.013202] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, ma                                                                                                                                                             x_idle_ns: 19112604462750000 ns
[    0.013239] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[    0.013389] pinctrl core: initialized pinctrl subsystem
[    0.014398] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.014846] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[    0.014890] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allo                                                                                                                                                             cations
[    0.014928] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic al                                                                                                                                                             locations
[    0.015271] thermal_sys: Registered thermal governor 'step_wise'
[    0.016781] cpuidle: using governor menu
[    0.016996] ASID allocator initialised with 65536 entries
[    0.018211] OF: /opp-table: could not get #nvmem-cell-cells for /soc/efuse@a4                                                                                                                                                             000/speedbin@125
[    0.072422] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count:                                                                                                                                                              4
[    0.079955] SCSI subsystem initialized
[    0.080185] usbcore: registered new interface driver usbfs
[    0.080231] usbcore: registered new interface driver hub
[    0.080267] usbcore: registered new device driver usb
[    0.080497] CPUidle PSCI: failed to enable OSI mode: -95
[    0.080845] qcom_scm: convention: smc arm 64
[    0.082048] clocksource: Switched to clocksource arch_sys_counter
[    0.082698] NET: Registered PF_INET protocol family
[    0.082835] IP idents hash table entries: 16384 (order: 5, 131072 bytes, line                                                                                                                                                             ar)
[    0.083665] tcp_listen_portaddr_hash hash table entries: 512 (order: 1, 8192                                                                                                                                                              bytes, linear)
[    0.083697] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes,                                                                                                                                                              linear)
[    0.083714] TCP established hash table entries: 8192 (order: 4, 65536 bytes,                                                                                                                                                              linear)
[    0.083802] TCP bind hash table entries: 8192 (order: 5, 131072 bytes, linear                                                                                                                                                             )
[    0.083952] TCP: Hash tables configured (established 8192 bind 8192)
[    0.084049] UDP hash table entries: 512 (order: 2, 16384 bytes, linear)
[    0.084091] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes, linear)
[    0.084260] NET: Registered PF_UNIX/PF_LOCAL protocol family
[    0.084293] PCI: CLS 0 bytes, default 64
[    0.104314] workingset: timestamp_bits=46 max_order=18 bucket_order=0
[    0.108081] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.108103] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORIT                                                                                                                                                             Y) (c) 2001-2006 Red Hat, Inc.
[    0.110179] qcom-qmp-phy 58000.phy: supply vdda-phy not found, using dummy re                                                                                                                                                             gulator
[    0.110353] qcom-qmp-phy 58000.phy: supply vdda-pll not found, using dummy re                                                                                                                                                             gulator
[    0.111400] qcom-qmp-phy 58000.phy: Registered Qcom-QMP phy
[    0.111685] qcom-qmp-phy 78000.phy: supply vdda-phy not found, using dummy re                                                                                                                                                             gulator
[    0.111814] qcom-qmp-phy 78000.phy: supply vdda-pll not found, using dummy re                                                                                                                                                             gulator
[    0.112802] qcom-qmp-phy 78000.phy: Registered Qcom-QMP phy
[    0.113751] qcom-qusb2-phy 59000.phy: supply vdda-pll not found, using dummy                                                                                                                                                              regulator
[    0.113884] qcom-qusb2-phy 59000.phy: supply vdda-phy-dpdm not found, using d                                                                                                                                                             ummy regulator
[    0.114065] qcom-qusb2-phy 59000.phy: Registered Qcom-QUSB2 phy
[    0.114255] qcom-qusb2-phy 79000.phy: supply vdda-pll not found, using dummy                                                                                                                                                              regulator
[    0.114372] qcom-qusb2-phy 79000.phy: supply vdda-phy-dpdm not found, using d                                                                                                                                                             ummy regulator
[    0.114516] qcom-qusb2-phy 79000.phy: Registered Qcom-QUSB2 phy
[    0.118896] bam-dma-engine 704000.dma-controller: num-channels unspecified in                                                                                                                                                              dt
[    0.118925] bam-dma-engine 704000.dma-controller: num-ees unspecified in dt
[    0.122719] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
[    0.123330] msm_serial 78b3000.serial: msm_serial: detected port #0
[    0.123378] msm_serial 78b3000.serial: uartclk = 3686400
[    0.123428] 78b3000.serial: ttyMSM0 at MMIO 0x78b3000 (irq = 22, base_baud =                                                                                                                                                              230400) is a MSM
[    0.123462] msm_serial: console setup on port #0
[    0.824334] printk: console [ttyMSM0] enabled
[    0.829508] msm_serial: driver initialized
[    0.837562] loop: module loaded
[    0.840531] nand: device found, Manufacturer ID: 0xef, Chip ID: 0xac
[    0.840584] nand: Winbond W29N04GZ
[    0.846892] nand: 512 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB siz                                                                                                                                                             e: 64
[    0.857818] 26 fixed-partitions partitions found on MTD device qcom_nand.0
[    0.857881] Creating 26 MTD partitions on "qcom_nand.0":
[    0.864515] 0x000000000000-0x000000100000 : "0:sbl1"
[    0.871299] 0x000000100000-0x000000200000 : "0:mibib"
[    0.876190] 0x000000200000-0x000000280000 : "0:bootconfig"
[    0.880632] 0x000000280000-0x000000300000 : "0:bootconfig_1"
[    0.886038] 0x000000300000-0x000000600000 : "0:qsee"
[    0.893817] 0x000000600000-0x000000900000 : "0:qsee_1"
[    0.898723] 0x000000900000-0x000000980000 : "0:devcfg"
[    0.901711] 0x000000980000-0x000000a00000 : "0:devcfg_1"
[    0.907075] 0x000000a00000-0x000000a80000 : "0:apdp"
[    0.912357] 0x000000a80000-0x000000b00000 : "0:apdp_1"
[    0.917323] 0x000000b00000-0x000000b80000 : "0:rpm"
[    0.922280] 0x000000b80000-0x000000c00000 : "0:rpm_1"
[    0.927020] 0x000000c00000-0x000000c80000 : "0:cdt"
[    0.932314] 0x000000c80000-0x000000d00000 : "0:cdt_1"
[    0.936911] 0x000000d00000-0x000000d80000 : "0:appsblenv"
[    0.942124] 0x000000d80000-0x000000e80000 : "0:appsbl"
[    0.947898] 0x000000e80000-0x000000f80000 : "0:appsbl_1"
[    0.952956] 0x000000f80000-0x000001000000 : "0:art"
[    0.958004] 0x000001000000-0x000001080000 : "0:art.bak"
[    0.962613] 0x000001080000-0x000001180000 : "config"
[    0.968196] 0x000001180000-0x000001280000 : "boarddata1"
[    0.973436] 0x000001280000-0x000001380000 : "boarddata2"
[    0.978701] 0x000001380000-0x000001480000 : "pot"
[    0.984042] 0x000001480000-0x000001980000 : "dnidata"
[    0.991826] 0x000001980000-0x000003680000 : "kernel"
[    1.016077] 0x00000e880000-0x000020000000 : "rootfs"
[    1.240163] mtd: setting mtd25 (rootfs) as root device
[    1.240459] mtdsplit: no squashfs found in "rootfs"
[    1.252187] spmi spmi-0: PMIC arbiter version v2 (0x20010000)
[    1.255227] s1: supplied by regulator-dummy
[    1.257103] s2: supplied by regulator-dummy
[    1.261072] vdd_s3: supplied by regulator-dummy
[    1.265404] vdd_s4: supplied by regulator-dummy
[    1.269920] s5: supplied by regulator-dummy
[    1.274282] l1: supplied by regulator-dummy
[    1.278437] l2: supplied by regulator-dummy
[    1.282633] l3: supplied by regulator-dummy
[    1.286767] l4: supplied by regulator-dummy
[    1.290932] l5: supplied by regulator-dummy
[    1.295133] l6: supplied by regulator-dummy
[    1.299272] l7: supplied by regulator-dummy
[    1.303445] l8: supplied by regulator-dummy
[    1.307617] l9: supplied by regulator-dummy
[    1.311879] l11: supplied by regulator-dummy
[    1.315955] l12: supplied by regulator-dummy
[    1.320469] l13: supplied by regulator-dummy
[    1.425348] i2c_dev: i2c /dev entries driver
[    1.430385] sdhci: Secure Digital Host Controller Interface driver
[    1.430432] sdhci: Copyright(c) Pierre Ossman
[    1.435571] sdhci-pltfm: SDHCI platform and OF driver helper
[    1.443449] remoteproc remoteproc0: releasing cd00000.q6v5_wcss
[    1.447892] NET: Registered PF_INET6 protocol family
[    1.452201] Segment Routing with IPv6
[    1.456509] In-situ OAM (IOAM) with IPv6
[    1.460091] NET: Registered PF_PACKET protocol family
[    1.464083] 8021q: 802.1Q VLAN Support v1.8
[    1.484814] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4
[    1.485116] cpr4_ipq807x_apss_read_fuse_data: apc_corner: speed bin = 0
[    1.490941] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR fusing revision = 1
[    1.497590] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR misc fuse value = 0
[    1.505211] cpr4_ipq807x_apss_read_fuse_data: apc_corner: Voltage boost fuse config = 0 boost = disable
[    1.512719] cpr3_mem_acc_init: apc: not using memory accelerator regulator
[    1.521845] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused      SVS: open-loop= 704000 uV
[    1.528803] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused      NOM: open-loop= 816000 uV
[    1.538783] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused    TURBO: open-loop= 872000 uV
[    1.548593] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused   STURBO: open-loop= 952000 uV
[    1.558451] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused      SVS: quot[ 7]= 709, quot_offset[ 7]=   0
[    1.568214] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused      NOM: quot[ 7]= 928, quot_offset[ 7]= 215
[    1.579063] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused    TURBO: quot[ 7]=1026, quot_offset[ 7]=  95
[    1.590001] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused   STURBO: quot[ 7]=1176, quot_offset[ 7]= 150
[    1.601071] cpr3_regulator_init_ctrl: apc: Default CPR mode = closed-loop
[    1.603749] cpufreq: cpufreq_online: CPU0: Running at unlisted initial frequency: 19200 KHz, changing to: 1017600 KHz
[    1.619702] remoteproc remoteproc0: cd00000.q6v5_wcss is available
[    1.629730] ubi0: attaching mtd25
[    2.172060] random: crng init done
[    2.898893] ubi0: scanning is finished
[    2.906263] ubi0: attached mtd25 (name "rootfs", size 279 MiB)
[    2.906306] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[    2.910999] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[    2.917876] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[    2.924718] ubi0: good PEBs: 2236, bad PEBs: 0, corrupted PEBs: 0
[    2.931483] ubi0: user volume: 2, internal volumes: 1, max. volumes count: 128
[    2.937742] ubi0: max/mean erase counter: 3/2, WL threshold: 4096, image sequence number: 358687183
[    2.944860] ubi0: available PEBs: 0, total reserved PEBs: 2236, PEBs reserved for bad PEB handling: 80
▒[    2.973201] Freeing unused kernel memory: 9344Kstarted, PID 520
[    3.022135] Run /init as init process
[    3.215652] init: Console is alive
[    3.215800] init: - watchdog -
[    3.222134] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[    3.239554] ssdk_switch_device_num_init[1335]:INFO:ess-switch dts node number: 1
[    3.239675] ssdk_dt_get_switch_node[1124]:INFO:ess-switch DT exist!
[    3.246084] ssdk_dt_parse_access_mode[999]:INFO:switch_access_mode: local bus
[    3.252017] ssdk_dt_parse_access_mode[1012]:INFO:switchreg_base_addr: 0x3a000000
[    3.259328] ssdk_dt_parse_access_mode[1013]:INFO:switchreg_size: 0x1000000
[    3.266777] ssdk_dt_parse_mac_mode[327]:INFO:mac mode = 0x0
[    3.273459] ssdk_dt_parse_mac_mode[336]:INFO:mac mode1 = 0xff
[    3.278923] ssdk_dt_parse_mac_mode[345]:INFO:mac mode2 = 0xd
[    3.284938] ssdk_dt_parse_uniphy[364]:INFO:ess-uniphy DT exist!
[    3.290666] ssdk_dt_parse_intf_mac[942]:INFO:dp1 MAC 6c:cd:d6:bb:df:5d
[    3.296232] ssdk_dt_parse_intf_mac[942]:INFO:dp2 MAC 6c:cd:d6:bb:df:5e
[    3.302830] ssdk_dt_parse_intf_mac[942]:INFO:dp3 MAC 6c:cd:d6:bb:df:5f
[    3.309334] ssdk_dt_parse_intf_mac[942]:INFO:dp4 MAC 70:9f:1f:77:27:28
[    3.315910] ssdk_dt_parse_intf_mac[942]:INFO:dp6 MAC 34:34:36:4b:30:31
[    3.322342] ssdk_plat_init[1692]:INFO:ssdk_plat_init start
[    3.453263] ssdk_gcc_clock_init[1275]:INFO:SSDK gcc clock init successfully!
[    3.454386] malibu_phy_api_ops_init[2846]:INFO:qca probe malibu phy driver succeeded!
[    3.464464] aquantia_phy_api_ops_init[2241]:INFO:qca probe aquantia phy driver succeeded!
[    3.467790] regi_init[3953]:INFO:Initializing HPPE!!
[    3.712053] ssdk_ppe_reset_init[1535]:INFO:ppe reset successfully!
[    3.715648] qca_hppe_portctrl_hw_init[126]:INFO:Hawkeye PPE port initializing
[    4.852105] ssdk_switch_register[2017]:INFO:Chip version 0x1500
[    4.852141] qca_link_polling_select[1487]:INFO:link-polling-required node does not exist
[    4.856827] ssdk_switch_register[2043]:INFO:polling is selected
[    4.865169] regi_init[3957]:INFO:Initializing HPPE Done!!
[    4.870883] ssdk_genl_init[211]:INFO:ssdk genl family register success.
[    4.876368] regi_init[4020]:INFO:qca-ssdk module init succeeded!
[    4.884978] EDMA ver 1 hw init
[    4.889246] EDMA HW Reset completed succesfully
[    4.891922] Num rings - TxDesc:1 (23-23) TxCmpl:1 (7-7)
[    4.896333] RxDesc:1 (15-15) RxFill:1 (7-7)
[    4.902084] Generic PHY 90000.mdio-1:00: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:00, irq=POLL)
[    4.906252] nss-dp 3a001000.dp1 lan4: Registered netdev lan4(qcom-id:1)
[    4.915692] Generic PHY 90000.mdio-1:01: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:01, irq=POLL)
[    4.922393] nss-dp 3a001200.dp2 lan3: Registered netdev lan3(qcom-id:2)
[    4.931828] Generic PHY 90000.mdio-1:02: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:02, irq=POLL)
[    4.938537] nss-dp 3a001400.dp3 lan2: Registered netdev lan2(qcom-id:3)
[    4.947978] Generic PHY 90000.mdio-1:03: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:03, irq=POLL)
[    4.954692] nss-dp 3a001600.dp4 lan1: Registered netdev lan1(qcom-id:4)
[    4.964067] GMAC5(ffffff80038148c0) Invalid MAC@ - using a6:fe:23:1c:7a:4e
[    4.970431] Generic PHY 90000.mdio-1:04: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:04, irq=POLL)
[    4.977764] nss-dp 3a001800.dp5 wan: Registered netdev wan(qcom-id:5)
[    4.987328] Generic Clause 45 PHY 90000.mdio-1:07: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:07, irq=POLL)
[    4.993787] nss-dp 3a001a00.dp6 lan5: Registered netdev lan5(qcom-id:6)
[    5.003661] **********************************************************
[    5.010122] * NSS Data Plane driver
[    5.016720] **********************************************************
[    5.031927] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[    5.031974] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 1
[    5.036496] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000002010010
[    5.043916] xhci-hcd xhci-hcd.1.auto: irq 91, io mem 0x08a00000
[    5.053322] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[    5.059141] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 2
[    5.064706] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
[    5.072756] hub 1-0:1.0: USB hub found
[    5.078873] hub 1-0:1.0: 1 port detected
[    5.082909] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[    5.086892] hub 2-0:1.0: USB hub found
[    5.094790] hub 2-0:1.0: 1 port detected
[    5.098679] xhci-hcd xhci-hcd.2.auto: xHCI Host Controller
[    5.102456] xhci-hcd xhci-hcd.2.auto: new USB bus registered, assigned bus number 3
[    5.107807] xhci-hcd xhci-hcd.2.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000002010010
[    5.115274] xhci-hcd xhci-hcd.2.auto: irq 92, io mem 0x08c00000
[    5.124677] xhci-hcd xhci-hcd.2.auto: xHCI Host Controller
[    5.130496] xhci-hcd xhci-hcd.2.auto: new USB bus registered, assigned bus number 4
[    5.136061] xhci-hcd xhci-hcd.2.auto: Host supports USB 3.0 SuperSpeed
[    5.144064] hub 3-0:1.0: USB hub found
[    5.150224] hub 3-0:1.0: 1 port detected
[    5.154276] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[    5.158258] hub 4-0:1.0: USB hub found
[    5.166174] hub 4-0:1.0: 1 port detected
[    5.171126] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[    5.175461] init: - preinit -
Press the [f] key and hit [enter] to enter failsafe mode
Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level
[    7.340817] procd: - early -
[    7.340897] procd: - watchdog -
[    7.866161] procd: - watchdog -
[    7.866406] procd: - ubus -
[    7.918909] procd: - init -
Please press Enter to activate this console.
[    7.995973] urngd: v1.0.2 started.
[    8.012552] kmodloader: loading kernel modules from /etc/modules.d/*
[    8.038592] Loading modules backported from Linux version v6.1-rc8-0-g76dcd734eca2
[    8.038631] Backport generated by backports.git v5.15.81-1-41-g02e352527db5
[    8.049259] NET: Registered PF_QIPCRTR protocol family
[    8.078527] PPP generic driver version 2.4.2
[    8.079127] NET: Registered PF_PPPOX protocol family
[    8.087142] ath11k c000000.wifi: ipq8074 hw2.0
[    8.087176] ath11k c000000.wifi: FW memory mode: 0
[    8.091293] remoteproc remoteproc0: powering up cd00000.q6v5_wcss
[    8.095931] remoteproc remoteproc0: Booting fw image IPQ8074/q6_fw.mdt, size 668
[    8.454727] remoteproc remoteproc0: remote processor cd00000.q6v5_wcss is now up
[    8.456203] ath11k c000000.wifi: qmi ignore invalid mem req type 3
[    8.461780] ath11k c000000.wifi: chip_id 0x0 chip_family 0x0 board_id 0xff soc_id 0xffffffff
[    8.467206] ath11k c000000.wifi: fw_version 0x250a04a5 fw_build_timestamp 2021-12-20 07:09 fw_build_id WLAN.HK.2.5.0.1-01208-QCAHKSWPL_SILICONZ-1
[    8.476805] kmodloader: done loading kernel modules from /etc/modules.d/*
[   11.800864] br-lan: port 1(lan1) entered blocking state
[   11.800908] br-lan: port 1(lan1) entered disabled state
[   11.805138] device lan1 entered promiscuous mode
[   11.817050] br-lan: port 2(lan2) entered blocking state
[   11.817097] br-lan: port 2(lan2) entered disabled state
[   11.821291] device lan2 entered promiscuous mode
[   11.829361] nss-dp 3a001200.dp2 lan3: PHY Link up speed: 1000
[   11.831756] br-lan: port 3(lan3) entered blocking state
[   11.836876] br-lan: port 3(lan3) entered disabled state
[   11.842023] device lan3 entered promiscuous mode
[   11.850608] br-lan: port 4(lan4) entered blocking state
[   11.851912] br-lan: port 4(lan4) entered disabled state
[   11.857116] device lan4 entered promiscuous mode
[   11.865479] br-lan: port 5(lan5) entered blocking state
[   11.866928] br-lan: port 5(lan5) entered disabled state
[   11.872104] device lan5 entered promiscuous mode
[   12.882371] br-lan: port 3(lan3) entered blocking state
[   12.882413] br-lan: port 3(lan3) entered forwarding state
[   12.887025] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[   33.112090] l11: disabling



BusyBox v1.36.0 (2023-01-17 06:26:02 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt SNAPSHOT, r21829-b6c8791bd8
 -----------------------------------------------------
=== WARNING! =====================================
There is no root password defined on this device!
Use the "passwd" command to set up a new password
in order to prevent unauthorized SSH logins.
--------------------------------------------------
root@OpenWrt:/# sysupgrade -n /tmp/1.bin
Tue Jan 17 06:27:28 UTC 2023 upgrade: Commencing upgrade. Closing all shell sessions.
Watchdog handover: fd=3
- watchdog -
Watchdog did not previously reset the system
Tue Jan 17 06:27:28 UTC 2023 upgrade: Sending TERM to remaining processes ...
Tue Jan 17 06:27:28 UTC 2023 upgrade: Sending signal TERM to ntpd (3057)
Tue Jan 17 06:27:28 UTC 2023 upgrade: Sending signal TERM to ntpd (3059)
Tue Jan 17 06:27:32 UTC 2023 upgrade: Sending KILL to remaining processes ...
[  104.811125] stage2 (3220): drop_caches: 3
Tue Jan 17 06:27:38 UTC 2023 upgrade: Switching to ramdisk...
Tue Jan 17 06:27:39 UTC 2023 upgrade: Performing system upgrade...
verifying sysupgrade tar file integrity
Unlocking kernel ...

Writing from <stdin> to kernel ...
[  106.023522] ubi1: attaching mtd24
[  106.152710] ubi1: scanning is finished
[  106.152754] ubi1 error: ubi_read_volume_table: the layout volume was not found
[  106.155391] ubi1 error: ubi_attach_mtd_dev: failed to attach mtd24, error -22
ubiattach: error!: cannot attach mtd24
           error 22 (Invalid argument)
ubiformat: mtd24 (nand), size 30408704 bytes (29.0 MiB), 232 eraseblocks of 131072 bytes (128.0 KiB), min. I/O size 2048 bytes
ubiforma[  107.570385] ubi1: attaching mtd24 complete
ubiformat: formatting eraseblock 231 -- 100 % complete
[  107.826495] ubi1: scanning is finished
[  107.832209] ubi1: attached mtd24 (name "kernel", size 29 MiB)
[  107.832246] ubi1: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[  107.836939] ubi1: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[  107.843723] ubi1: VID header offset: 2048 (aligned 2048), data offset: 4096
[  107.850568] ubi1: good PEBs: 232, bad PEBs: 0, corrupted PEBs: 0
[  107.857344] ubi1: user volume: 0, internal volumes: 1, max. volumes count: 128
[  107.863596] ubi1: max/mean erase counter: 0/0, WL threshold: 4096, image sequence number: 1561864592
[  107.870625] ubi1: available PEBs: 148, total reserved PEBs: 84, PEBs reserved for bad PEB handling: 80
[  107.879928] ubi1: background thread "ubi_bgt1d" started, PID 3947
UBI device number 1, total 232 LEBs (29458432 bytes, 28.0 MiB), available 148 LEBs (18792448 bytes, 17.9 MiB), LEB size 126976 bytes (124.0 KiB)
umount: can't unmount /dev/ubiblock0_0: Invalid argument
[  107.992097] block ubiblock0_0: released
Volume ID 0, size 62 LEBs (7872512 bytes, 7.5 MiB), LEB size 126976 bytes (124.0 KiB), dynamic, name "rootfs", alignment 1
Set volume size to 265379840
Volume ID 1, size 2090 LEBs (265379840 bytes, 253.0 MiB), LEB size 126976 bytes (124.0 KiB), dynamic, name "rootfs_data", alignment 1
Unlocking kernel ...

Writing from <stdin> to kernel ...
sysupgrade successful
umount: can't unmount /dev: Resource busy
umount: can't unmount /tmp: Resource busy
[  111.902150] leds white:5g: led_trigger_set: Error sending uevent
[  112.052138] leds white:24g: led_trigger_set: Error sending uevent
[  112.260077] remoteproc remoteproc0: stopped remote processor cd00000.q6v5_wcss
[  112.782241] reboot: Restarting system

Format: Log Type - Time(microsec) - Message - Optional Info
Log Type: B - Since Boot(Power On Reset),  D - Delta,  S - Statistic
S - QC_IMAGE_VERSION_STRING=BOOT.BF.3.3.1-00147
S - IMAGE_VARIANT_STRING=HAACANAZA
S - OEM_IMAGE_VERSION_STRING=CRM
S - Boot Config, 0x000002e5
B -       201 - PBL, Start
B -      2736 - bootable_media_detect_entry, Start
B -      3444 - bootable_media_detect_success, Start
B -      3449 - elf_loader_entry, Start
B -      6118 - auth_hash_seg_entry, Start
B -      6361 - auth_hash_seg_exit, Start
B -     68605 - elf_segs_hash_verify_entry, Start
B -    131302 - PBL, End
B -    219844 - SBL1, Start
B -    299876 - GCC [RstStat:0x10, RstDbg:0x600000] WDog Stat : 0x4
B -    309880 - pm_device_init, Start
B -    494618 - PM_SET_VAL:Skip
D -    182634 - pm_device_init, Delta
B -    496906 - pm_driver_init, Start
D -      5368 - pm_driver_init, Delta
B -    503341 - clock_init, Start
D -      2104 - clock_init, Delta
B -    507398 - boot_flash_init, Start
D -     12566 - boot_flash_init, Delta
B -    523624 - boot_config_data_table_init, Start
D -      3080 - boot_config_data_table_init, Delta - (575 Bytes)
B -    531127 - Boot Setting :  0x00000618
B -    535061 - CDT version:2,Platform ID:8,Major ID:1,Minor ID:0,Subtype:0
B -    541985 - sbl1_ddr_set_params, Start
B -    545797 - CPR configuration: 0x30c
B -    549152 - cpr_init, Start
B -    552019 - Rail:0 Mode: 5 Voltage: 816000
B -    557143 - CL CPR settled at 768000mV
B -    559949 - Rail:1 Mode: 5 Voltage: 880000
B -    564250 - Rail:1 Mode: 7 Voltage: 904000
D -     16531 - cpr_init, Delta
B -    571021 - Pre_DDR_clock_init, Start
B -    575138 - Pre_DDR_clock_init, End
B -    578432 - DDR Type : PCDDR3
B -    584197 - do ddr sanity test, Start
D -      1067 - do ddr sanity test, Delta
B -    588955 - DDR: Start of HAL DDR Boot Training
B -    593591 - DDR: End of HAL DDR Boot Training
B -    599386 - DDR: Checksum to be stored on flash is 146326827
B -    609603 - Image Load, Start
D -    224328 - QSEE Image Loaded, Delta - (1373936 Bytes)
B -    834022 - Image Load, Start
D -        61 - SEC Image Loaded, Delta - (0 Bytes)
B -    841708 - Image Load, Start
D -     10736 - DEVCFG Image Loaded, Delta - (26004 Bytes)
B -    852536 - Image Load, Start
D -     25223 - RPM Image Loaded, Delta - (105964 Bytes)
B -    877851 - Image Load, Start
D -     74938 - APPSBL Image Loaded, Delta - (451008 Bytes)
B -    952911 - QSEE Execution, Start
D -        61 - QSEE Execution, Delta
B -    958737 - USB D+ check, Start
D -         0 - USB D+ check, Delta
B -    965111 - SBL1, End
D -    747585 - SBL1, Delta
S - Flash Throughput, 6696 KB/s  (1958159 Bytes,  292397 us)
S - DDR Frequency, 466 MHz
S - Core 0 Frequency, 1651 MHz


U-Boot 2016.01 (Nov 12 2019 - 11:55:34 +0800)

Model: QCA, IPQ807x-HK01
U-boot dni1 V1.6 for DNI HW ID: 29765589; NAND flash 512MB; RAM 1024MB .
developed based on 'qsdk-ipq807x.ilq.10.0-spf.10.0.CS_patch_4'
DRAM:  smem ram ptable found: ver: 1 len: 4
1 GiB
NAND:  ONFI device found
ID = 1590acef
Vendor = ef
Device = ac
SF: Unsupported flash IDs: manuf 00, jedec 0000, ext_jedec 0000
ipq_spi: SPI Flash not found (bus/cs/speed/mode) = (0/0/48000000/0)
512 MiB
MMC:   <NULL>: 0
*** Warning - bad CRC, using default environment

In:    serial@78B3000
Out:   serial@78B3000
Err:   serial@78B3000
machid: 8010000
Net:   MAC0 addr:6c:cd:d6:bb:df:5d
PHY ID1: 0x4d
PHY ID2: 0xd0b1

NAND read: device 0 offset 0x7e00000, size 0x80000
 524288 bytes read: OK
bad magic on ETHPHYFW partition
PHY ID1: 0x3a1
PHY ID2: 0xb612
EDMA ver 1 hw init
Num rings - TxDesc:1 (0-0) TxCmpl:1 (7-7)
RxDesc:1 (15-15) RxFill:1 (7-7)
ipq807x_edma_alloc_rings: successfull
ipq807x_edma_setup_ring_resources: successfull
ipq807x_edma_configure_rings: successfull
ipq807x_edma_hw_init: successfull
eth0
Hit any key to stop autoboot:  0
ipq807x_eth_halt: done
eth0 PHY0 Down Speed :10 Half duplex
eth0 PHY1 up Speed :1000 Full duplex
eth0 PHY2 Down Speed :10 Half duplex
eth0 PHY3 Down Speed :10 Half duplex
eth0 PHY4 Down Speed :10 Half duplex
10M speed not supported
ipq807x_eth_init: done

 Client starts...[Listening] for ADVERTISE...TTT
Retry count exceeded; boot the image as usual
ipq807x_eth_halt: done

 nmrp server is stopped or failed !
Loading DNI firmware for checking...

Loading from device 0: nand0 (offset 0x1980000)

** KERNEL partition size, kernel : 0x480000 **

** ROOTFS partition size, kernel: 0x480000, rootfs: 0xffffffff **

** Bad partition size, kernel: 0x480000, rootfs: 0xffffffff **

** rootfs address : 0x4447ffc0 **

## Checking Image at 44000000 ...
   FIT image found
   FIT description: ARM64 OpenWrt FIT (Flattened Image Tree)
    Image 0 (kernel-1)
     Description:  ARM64 OpenWrt Linux-5.15.88
     Type:         Kernel Image
     Compression:  gzip compressed
     Data Start:   0x440000e8
     Data Size:    4562577 Bytes = 4.4 MiB
     Architecture: AArch64
     OS:           Linux
     Load Address: 0x41000000
     Entry Point:  0x41000000
     Hash algo:    crc32
     Hash value:   bb0fdfa9
     Hash algo:    sha1
     Hash value:   424302bebc9f89dd7c7ffdfd058c9de641100666
    Image 1 (fdt-1)
     Description:  ARM64 OpenWrt netgear_rax120v2 device tree blob
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0x4445a0bc
     Data Size:    45710 Bytes = 44.6 KiB
     Architecture: AArch64
     Hash algo:    crc32
     Hash value:   bac2b7b0
     Hash algo:    sha1
     Hash value:   e6c97d5c82ca67c2719e203986e07682993b983d
    Default Configuration: 'config@hk01'
    Configuration 0 (config@hk01)
     Description:  OpenWrt netgear_rax120v2
     Kernel:       kernel-1
     FDT:          fdt-1
## Checking hash(es) for FIT Image at 44000000 ...
   Hash(es) for Image 0 (kernel-1): crc32+ sha1+
   Hash(es) for Image 1 (fdt-1): crc32+ sha1+

## Checking Image at 4447ffc0 ...
Unknown image format!
rootfs checksum error
ipq807x_eth_halt: done
eth0 PHY1 up Speed :1000 Full duplex
10M speed not supported
ipq807x_eth_init: done
Using eth0 device
Listening for TFTP transfer on 192.168.1.1
Load address: 0x44000000
Loading: eth0 PHY1 up Speed :1000 Full duplex
10M speed not supported
ipq807x_eth_init: done
eth0 PHY1 up Speed :1000 Full duplex
10M speed not supported
ipq807x_eth_init: done
eth0 PHY1 up Speed :1000 Full duplex
10M speed not supported
ipq807x_eth_init: done
eth0 PHY1 up Speed :1000 Full duplex
10M speed not supported
ipq807x_eth_init: done
eth0 PHY1 up Speed :1000 Full duplex
10M speed not supported
ipq807x_eth_init: done
eth0 PHY1 up Speed :1000 Full duplex
10M speed not supported
ipq807x_eth_init: done
ipq807x_eth_halt: done

Nie chce się uruchomić. Oczywiście procedura ratowania co prawda opisania dla linuxa ale na windowsie za pomoca tfftpd clienta też działa choć po wgraniu OFW zostają moje stare ustawienia co też jest porzynamniej dziwne czy nie?

4 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,981

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Przez wgraniem sysupgrade nie musisz czasami zrobić czyszczenia ubi?

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

5 Odpowiedź przez smereka

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

A jak to zrobić? Na openwrt org w instrukcji tego nie ma wink

6 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,981

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Też właśnie zobaczyłem że nie ma.

ubiattach -m 24
ubirmvol /dev/ubi1 -N rootfs

Czy coś w ten deseń.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

7 Odpowiedź przez smereka (edytowany przez smereka 2023-02-13 13:13:18)

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Czyli mam wpisać w konsoli te polecenie przed wgraniem sysupgrade dobrze rozumiem?

Ech po co oni tą instrukcję stworzyli jak nie działa. My w sensie jako tutejsi forumowicze piszemy lepsze np. mf286d mf289f wszystko działa i jak dla laika big_smile

8 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,981

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Wg papierów masz z luci zrobić upgrade tak po prostu. Nie działa - pisz do nich w wątku że nie działa smile

Tak, z konsoli przed sysupgrade to robisz.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

9 Odpowiedź przez smereka (edytowany przez smereka 2023-02-13 13:29:39)

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

root@OpenWrt:/# ubiattach -m 24
[   56.502470] ubi1: attaching mtd24
[   56.633014] ubi1: scanning is finished
[   56.633054] ubi1 error: ubi_read_volume_table: the layout volume was not found
[   56.635693] ubi1 error: ubi_attach_mtd_dev: failed to attach mtd24, error -22
ubiattach: error!: cannot attach mtd24
           error 22 (Invalid argument)
root@OpenWrt:/# ubirmvol /dev/ubi1 -N rootfs
libubi: error!: cannot get information about "/dev/ubi1"
        error 2 (No such file or directory)
ubirmvol: error!: error while probing "/dev/ubi1"
          error 2 (No such file or directory)



Napisze do nich w ichnim wąteczku

10 Odpowiedź przez ambrozy5

  • Zarejestrowany: 2015-01-27
  • Posty: 2,429

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

W dynalinku jest ubi deatach, ubiformat

Dom : router https://i.imgur.com/IuB6Zwy.png | TP-LINK T1700G-28TQ |Zyxel XGS-1210-12 | 6x Ruckus r310 unleashed  + Ruckus icx7150-c12p | Truenas scale 124TB 25Gb| Xpenology 12TB | apc smart ups 750 lcd smile 100Mb/s - 25Gb/s
Podróżne : GL.Inet MT3000  +1TB hdd
Działka : rb260gs 1j wdm 1Gb+ ruckus r310 + nb m5 + kilka kamer ip  + panel 285Wp + lifepo4 12v 60Ah .

11 Odpowiedź przez smereka (edytowany przez smereka 2023-02-15 10:26:25)

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Cezary robimarko nie ma tego sprzętu ale odpisał mi tak:

Cytuję:

"I cant really help you with this device as I dont have it nor its in upstream.

But if hashes are wrong, then it's corrupted somehow, writing from stdin to kernel doesn't look right to me as its using NAND"

Koniec cytatu.

Nic z tego nie kapuję. Ty coś rozumiesz?

12 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,981

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Że robimarko  się nie zgadza z ideologią w jaki sposób to zostało zrobione smile Pytaj nie robimarko   a gościa który przygotował port openwrt na to urządzenie.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

13 Odpowiedź przez smereka

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Ja tylko informacyjnie. Coś ruszyło w kwestii opewnrt na to cudo. Poczytajcie ostatnie posty:

https://forum.openwrt.org/t/adding-open … /75592/302

i kto ma i chce niech sobie po testuje. Ja swojego na razie nie mam kiedy męczyć ale w końcu pewnie się zbiorę

14 Odpowiedź przez smereka (edytowany przez smereka 2023-12-23 23:19:47)

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Może przed sylwestrem siądę do tego sprzętu coby za długo się nie kurzył big_smile no i żeby zobaczyć czy jakieś postępy poczynili z jego wsparciem wszakże w mojej opinii ma on potencjał - bebeszki lekko podobne do qnapika 301w w pewnych kwestiach lepsze w innych gorsze... Cezary dałbyś radę jakąś swoją testową wersję stworzyć? Oczywiście zapodam mu najpierw coś z openwrt.org ale fajnie by było potem Twoją bo tam prawie wszystko z czego korzystam to jest smile Jak go odpalę sprawdzę w końcu czy qhora faktycznie na portach 10Gbit jest w stanie zestawić się na coś więcej niż 1gbit bo niestety oprócz tego netgeara nie mam nic żeby to sprawdzić.

15 Odpowiedź przez wizar5789

  • Skąd: Warszawa
  • Zarejestrowany: 2021-02-19
  • Posty: 50

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Odpowiadając sam router śmiga ładnie port 5gbps również. Niestety wifi to padaka wsparcie niby jest ale brak 160mhz i gdzieś zepsuta tabela mocy zabija i zasięg i prędkość wifi. Więc może służyć póki co jako router ale nie wifi tongue

16 Odpowiedź przez smereka

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Potwierdzam u mnie to samo.Zakutalizowalem ostatnio openwrt do najnowszego i zasieg do 3-5 metrow w przypadku 5GHz.Nie rouzmiem czemu tego nie naprawia.

17 Odpowiedź przez Cezary

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,981

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

A ktoś to (np. wy?) w ogóle zgłosił jako issue?

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

18 Odpowiedź przez smereka

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Tak na forum dotyczacego tego sprzetu i openwrt jest to opisane wiedza o tym

19 Odpowiedź przez Cezary (edytowany przez Cezary 2024-01-22 21:09:08)

  • Skąd: Warszawa
  • Zarejestrowany: 2006-02-25
  • Posty: 115,981

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Tyle że developerzy nie często czytają swoje forum smile Issue zgłoście oficjalnie.

Masz niepotrzebny router, uszkodzony czy nie - chętnie przygarnę go.

Cezary's Strona

20 Odpowiedź przez smereka (edytowany przez smereka 2024-01-22 21:07:46)

  • Zarejestrowany: 2014-07-09
  • Posty: 2,443

Odp: Netgear RAX120v2 (Nighthawk AX12) - openwrt

Ciekawe w sumie bo xiaomi ax9000 ma identyczne radio na 5Ghz jak ten w sencie soc i tam banga chyba a przynajnniej nikt nie narzeka
