Temat: Archer C7 v1 problem po powrocie nie działa karta wifi 2.4GHz
Witam wszystkich i proszę o małą burzę mózgów może coś wymyślimy
Otóż wgrałem oprogramowanie z tego linku http://download1.dd-wrt.com/dd-wrtv2/do … her-c7-v1/ DDWRT do C7v1 karta 2.4 ładnie działała.
Problem się zaczął po wgraniu przez ssh obrazu który w założeniu miał przywrócić fabrykę i tu klops router nie wstał po podpięciu serial
zatrzymywało się na
U-Boot 1.1.4 (May 11 2015 - 15:13:34) ap135 - Scorpion 1.0DRAM: sri Scorpion 1.0 ath_ddr_initial_config(211): (32bit) ddr1 initPomyślałem że zapiszę kostkę na zewnętrznym programatorze i poszło. Router długo boot-uje ale wstał tylko że obsługuje 5GHz.

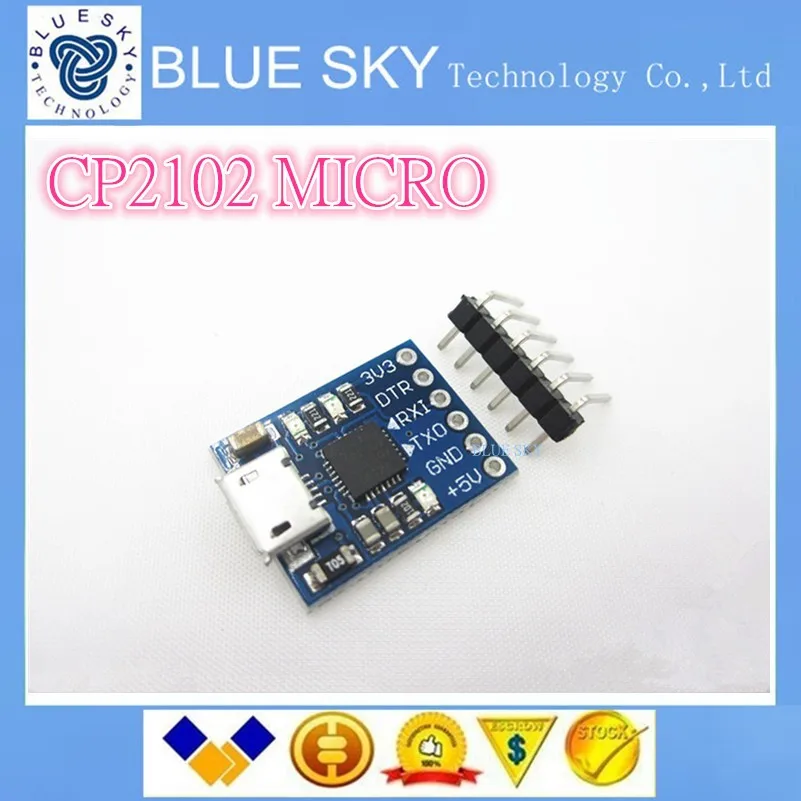

po podpięciu serial zatrzymuje się na
U-Boot 1.1.4 (May 11 2015 - 15:13:34) ap135 - Scorpion 1.0DRAM: sri Scorpion 1.0 ath_ddr_initial_config(211): (32bit) ddr1 initCo dziwne po odpięciu trwa to dłużej ale router wstanie tylko z jedną karta wtedy można wpiąć serial i działać.
Log:
=~=~=~=~=~=~=~=~=~=~=~= PuTTY log 2017.01.26 18:55:38 =~=~=~=~=~=~=~=~=~=~=~=
[ 511.852000] Reset button pressed.
[ 511.856000] SC Pushbutton Notify on wifi1 for 0 sec(s) and the vap 86fb4000 dev 86fa0000:
[ 511.864000] ol_ath_vap_set_param: VAP param unsupported param:17 value:1
[ 523.444000] Reset button pressed.
[ 523.448000] SC Pushbutton Notify on wifi1 for 0 sec(s) and the vap 86fb4000 dev 86fa0000:
[ 523.456000] ol_ath_vap_set_param: VAP param unsupported param:17 value:1
[ 532.596000] restoring factory default...
[ 533.416000] Reset button pressed.
[ 534.844000] Read from 0X1FC00 to 0X1FC06: OK
[ 534.852000] Read from 0X1FE00 to 0X1FE08: OK
[ 534.856000] Erase from 0X7D0000 to 0X7E1EE8:.
[ 535.064000] Program from 0X7D0000 to 0X7E1EE8:.
[ 535.528000] write successfully
[ 535.544000] Read from 0X1FE00 to 0X1FE08: OK
[ 535.548000] Erase from 0X7D0000 to 0X7E1EE8:.
[ 535.744000] Program from 0X7D0000 to 0X7E1EE8:.
[ 536.208000] write successfully
tpl[ 536.212000] Erase from 0X7D0000 to 0X7E1EE8:.
[ 536.420000] Program from 0X7D0000 to 0X7E1EE8:.
[ 536.876000] write successfully
tpltpltpl[ 538.044000] Restarting system.
U-Boot 1.1.4 (May 11 2015 - 15:13:34)
ap135 - Scorpion 1.0DRAM:
sri
Scorpion 1.0
ath_ddr_initial_config(178): (32bit) ddr2 init
tap = 0x00000003
Tap (low, high) = (0x3, 0x1f)
Tap values = (0x11, 0x11, 0x11, 0x11)
128 MB
Flash Manuf Id 0xef, DeviceId0 0x40, DeviceId1 0x17
flash size 8MB, sector count = 128
Flash: 8 MB
Using default environment
*** Warning *** : PCIe WLAN Module not found !!!
In: serial
Out: serial
Err: serial
Net: ath_gmac_enet_initialize...
athrs_sgmii_res_cal: cal value = 0xe
No valid address in Flash. Using fixed address
No valid address in Flash. Using fixed address
ath_gmac_enet_initialize: reset mask:c02200
Scorpion ----> S17 PHY *
athrs17_reg_init: complete
: cfg1 0x80000000 cfg2 0x7114
eth0: ba:be:fa:ce:08:41
eth0 up
athrs17_reg_init_wan done
SGMII in forced mode
athr_gmac_sgmii_setup SGMII done
: cfg1 0x800c0000 cfg2 0x7214
eth1: ba:be:fa:ce:08:41
eth1 up
eth0, eth1
Setting 0x18116290 to 0x458b214f
Autobooting in 1 seconds
ap135> tpl setenv ipaddr 192.168.0.86
ap135> setenv serverip 192.168.0.66
ap135> erase 0x9f020000 +f80000
Error: end address (0x9ff9ffff) not in flash!
Bad address format
ap135> erase 0x9f020000 +7b0000
Erasing flash...
First 0x2 last 0x7c sector size 0x10000
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124
Erased 123 sectors
ap135>
Erasing flash...
First 0x2 last 0x7c sector size 0x10000
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124
Erased 123 sectors
ap135> tftp 0x81000000 ArcherC7v1_tp_recovery.bin
dup 1 speed 1000
Using eth1 device
TFTP from server 192.168.0.66; our IP address is 192.168.0.86
Filename 'ArcherC7v1_tp_recovery.bin'.
Load address: 0x81000000
Loading: *#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
###############
done
Bytes transferred = 8060928 (7b0000 hex)
ap135> cp.b 0x81000000 0x9f020000 0x7b0000
Copy to Flash... write addr: 9f020000
done
ap135> printenv
bootargs=console=ttyS0,115200 root=31:02 rootfstype=jffs2 init=/sbin/init mtdparts=ath-nor0:256k(u-boot),64k(u-boot-env),6336k(rootfs),1408k(uImage),64k(mib0),64k(ART)
bootcmd=bootm 0x9f020000
bootdelay=1
baudrate=115200
ethaddr=0xba:0xbe:0xfa:0xce:0x08:0x41
dir=
lu=tftp 0x80060000 ${dir}u-boot.bin&&erase 0x9f000000 +$filesize&&cp.b $fileaddr 0x9f000000 $filesize
lf=tftp 0x80060000 ${dir}ap135${bc}-jffs2&&erase 0x9f050000 +0x630000&&cp.b $fileaddr 0x9f050000 $filesize
lk=tftp 0x80060000 ${dir}vmlinux${bc}.lzma.uImage&&erase 0x9f680000 +$filesize&&cp.b $fileaddr 0x9f680000 $filesize
stdin=serial
stdout=serial
stderr=serial
ethact=eth1
filesize=7b0000
fileaddr=81000000
ipaddr=192.168.0.86
serverip=192.168.0.66
Environment size: 718/65532 bytes
ap135> reset
U-Boot 1.1.4 (May 11 2015 - 15:13:34)
ap135 - Scorpion 1.0DRAM:
sri
Scorpion 1.0
ath_ddr_initial_config(178): (32bit) ddr2 init
tap = 0x00000003
Tap (low, high) = (0x4, 0x1f)
Tap values = (0x11, 0x11, 0x11, 0x11)
128 MB
Flash Manuf Id 0xef, DeviceId0 0x40, DeviceId1 0x17
flash size 8MB, sector count = 128
Flash: 8 MB
Using default environment
*** Warning *** : PCIe WLAN Module not found !!!
In: serial
Out: serial
Err: serial
Net: ath_gmac_enet_initialize...
athrs_sgmii_res_cal: cal value = 0xe
No valid address in Flash. Using fixed address
No valid address in Flash. Using fixed address
ath_gmac_enet_initialize: reset mask:c02200
Scorpion ----> S17 PHY *
athrs17_reg_init: complete
: cfg1 0x80000000 cfg2 0x7114
eth0: ba:be:fa:ce:08:41
eth0 up
athrs17_reg_init_wan done
SGMII in forced mode
athr_gmac_sgmii_setup SGMII done
: cfg1 0x800c0000 cfg2 0x7214
eth1: ba:be:fa:ce:08:41
eth1 up
eth0, eth1
Setting 0x18116290 to 0x458b214f
Autobooting in 1 seconds
## Booting image at 9f020000 ...
Uncompressing Kernel Image ... OK
Starting kernel ...
Booting QCA955x
[ 0.000000] Linux version 2.6.31--LSDK-9.2.0_U6.616 (root@liaozhiming) (gcc version 4.3.3 (GCC) ) #1 Mon May 11 15:16:26 CST 2015
[ 0.000000] Ram size passed from bootloader =128M
[ 0.000000] flash_size passed from bootloader = 8
[ 0.000000] CPU revision is: 00019750 (MIPS 74Kc)
[ 0.000000] cpu apb ddr apb ath_sys_frequency: cpu 720 ddr 600 ahb 200
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 08000000 @ 00000000 (usable)
[ 0.000000] Zone PFN ranges:
[ 0.000000] Normal 0x00000000 -> 0x00008000
[ 0.000000] Movable zone start PFN for each node
[ 0.000000] early_node_map[1] active PFN ranges
[ 0.000000] 0: 0x00000000 -> 0x00008000
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 32512
[ 0.000000] Kernel command line: console=ttyS0,115200 root=31:02 rootfstype=squashfs init=/sbin/init mtdparts=ath-nor0:128k(u-boot),1024k(kernel),6848k(rootfs),128k(config),64k(ART) mem=128M
[ 0.000000] PID hash table entries: 512 (order: 9, 2048 bytes)
[ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 112924k/131072k available (1840k kernel code, 17972k reserved, 424k data, 120k init, 0k highmem)
[ 0.000000] NR_IRQS:128
[ 0.000000] plat_time_init: plat time init done
[ 0.000000] Calibrating delay loop... 359.42 BogoMIPS (lpj=718848)
[ 0.080000] Mount-cache hash table entries: 512
[ 0.080000]
[ 0.080000] ****************ALLOC***********************
[ 0.080000] Packet mem: 802684e0 (0xe00000 bytes)
[ 0.080000] ********************************************
[ 0.080000]
[ 0.080000] NET: Registered protocol family 16
[ 0.080000] ath_pcibios_init: bus 0
[ 0.080000] ***** Warning PCIe 0 H/W not found !!!
[ 0.080000] registering PCI controller with io_map_base unset
[ 0.080000] ath_pcibios_init: bus 1
[ 0.080000] ath_pcibios_init(232): PCI 1 CMD write: 0x356
[ 0.080000] registering PCI controller with io_map_base unset
[ 0.080000] ===@@@@@@@@@@@=>use GPIO23 as wifi button control!
[ 0.080000] bio: create slab <bio-0> at 0
[ 0.080000] pcibios_map_irq: IRQ 76 for bus 1
[ 0.080000] NET: Registered protocol family 2
[ 0.084000] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.084000] TCP established hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.084000] TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.084000] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.084000] TCP reno registered
[ 0.084000] NET: Registered protocol family 1
[ 0.084000] ATH GPIOC major 0
[ 0.084000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.084000] msgmni has been set to 220
[ 0.084000] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 254)
[ 0.084000] io scheduler noop registered
[ 0.084000] io scheduler deadline registered (default)
[ 0.084000] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[ 0.084000] serial8250.0: ttyS0 at MMIO 0xb8020000 (irq = 19) is a 16550A
[ 0.084000] console [ttyS0] enabled
[ 0.396000] PPP generic driver version 2.4.2
[ 0.400000] NET: Registered protocol family 24
[ 0.404000] 5 cmdlinepart partitions found on MTD device ath-nor0
[ 0.412000] Creating 5 MTD partitions on "ath-nor0":
[ 0.416000] 0x000000000000-0x000000020000 : "u-boot"
[ 0.420000] 0x000000020000-0x000000120000 : "kernel"
[ 0.428000] 0x000000120000-0x0000007d0000 : "rootfs"
[ 0.432000] 0x0000007d0000-0x0000007f0000 : "config"
[ 0.436000] 0x0000007f0000-0x000000800000 : "ART"
[ 0.444000] ->Oops: flash id 0xef4017 .
[ 0.448000] Ooops, why the devices couldn't been initialed?
[ 0.452000] TCP cubic registered
[ 0.456000] NET: Registered protocol family 10
[ 0.460000] NET: Registered protocol family 17
[ 0.464000] 802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
[ 0.472000] All bugs added by David S. Miller <davem@redhat.com>
[ 0.480000] athwdt_init: Registering WDT success
[ 0.484000] ath_otp_init: Registering OTP success
[ 0.496000] VFS: Mounted root (squashfs filesystem) readonly on device 31:2.
[ 0.504000] Freeing unused kernel memory: 120k freed
init started: BusyBox v1.01 (2015.04.24-06:01+0000) multi-call binary
This Board use 2.6.31
[ 1.612000] xt_time: kernel timezone is -0000
[ 1.772000] nf_conntrack version 0.5.0 (2048 buckets, 81920 max)
[ 1.780000] CONFIG_NF_CT_ACCT is deprecated and will be removed soon. Please use
[ 1.788000] nf_conntrack.acct=1 kernel parameter, acct=1 nf_conntrack module option or
[ 1.796000] sysctl net.netfilter.nf_conntrack_acct=1 to enable it.
[ 2.152000] ip_tables: (C) 2000-2006 Netfilter Core Team
insmod: cannot open module `/lib/modules/2.6.31/kernel/iptable_raw.ko': No such file or directory
insmod: cannot open module `/lib/modules/2.6.31/kernel/flashid.ko': No such file or directory
[ 2.500000] PPPoL2TP kernel driver, V1.0
[ 2.516000] PPTP driver version 0.8.3
insmod: cannot open module `/lib/modules/2.6.31/kernel/harmony.ko': No such file or directory
(none) mips #1 Mon May 11 15:16:26 CST 2015 (none)
(none) login: [ 6.000000] Read from 0X20000 to 0X20120: OK
[ 6.480000] Read from 0X7D0000 to 0X7E1EE8: OK
[ 7.008000] qca955x_GMAC: Length per segment 1536
[ 7.012000] 955x_GMAC: qca955x_gmac_attach
[ 7.016000] 955x_GMAC: qca955x_set_gmac_caps
[ 7.020000] Currently in polling mode unit1
[ 7.024000] mac:1 Registering S17....
[ 7.028000] qca955x_GMAC: RX TASKLET - Pkts per Intr:200
[ 7.032000] qca955x_GMAC: Max segments per packet : 1
[ 7.040000] qca955x_GMAC: Max tx descriptor count : 220
[ 7.044000] qca955x_GMAC: Max rx descriptor count : 220
[ 7.048000] qca955x_GMAC: Mac capability flags : 12002200
[ 7.056000] 955x_GMAC: qca955x_gmac_attach
[ 7.060000] 955x_GMAC: qca955x_set_gmac_caps
[ 7.064000] Currently in polling mode unit0
[ 7.068000] mac:0 Registering S17....
[ 7.072000] qca955x_GMAC: RX TASKLET - Pkts per Intr:200
[ 7.076000] qca955x_GMAC: Max segments per packet : 1
[ 7.084000] qca955x_GMAC: Max tx descriptor count : 220
[ 7.088000] qca955x_GMAC: Max rx descriptor count : 220
[ 7.096000] qca955x_GMAC: Mac capability flags : 10002A00
[ 7.100000] 955x_GMAC: Serdes PLL is locked value 0x1f038116
[ 7.728000] athr_gmac_ring_alloc Allocated 3520 at 0x8794b000
[ 7.736000] athr_gmac_ring_alloc Allocated 3520 at 0x87aa0000
[ 8.040000] 955x_GMAC: eth1 in SGMII MODE
[ 8.044000] Scorpion -----> S17 PHY
[ 8.076000] Hello, nat helper module for 1.08!
[ 8.080000] netlink_kernel_create succeeded at tp_rule_nl_prot: [29]
[ 8.084000]
[ 8.084000] ######## S17 SSDK init succeeded! ########
[ 8.092000] _athrs17_mac0_intf SGMII done
[ 8.164000] athrs17_reg_init:done
[ 8.164000] 955x_SGMII::athr_gmac_sgmii_setup Done
[ 8.172000] Setting Drop CRC Errors, Pause Frames and Length Error frames
[ 8.176000] Setting PHY...
[ 9.180000] Phy setup Complete
[ 9.184000] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 9.220000] device eth0.1 entered promiscuous mode
[ 9.236000] Read from 0X1FC00 to 0X1FC06: OK
[ 9.240000] SET INTF MAC 0:64-66-b3-be-88-f8
[ 9.244000] Lan UDP checksum 0 adding rule #3
[ 9.252000] ACL is not yet enabled. Enabling...
[ 9.256000] SET INTF MAC 1:64-66-b3-be-88-f9
[ 9.260000] ttl adding rule #0
[ 9.264000] Wan UDP checksum 0 adding rule #2
[ 9.292000] device eth0 entered promiscuous mode
[ 9.340000] br0: port 1(eth0.1) entering forwarding state
[ 10.684000] Adding ACL rules #1 - wan to lan, dst ip is lan net
[ 11.160000] nf_conntrack_rtsp v0.6.21 loading
[ 11.172000] nf_nat_rtsp v0.6.21 loading
[ 11.216000] insmod nat_sip over !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[ 13.184000]
[ 13.184000] Enet:1 port1 up
[ 13.188000] 955x_GMAC: enet unit:1 is up...
[ 13.192000] eth1 SGMII 1000Mbps full duplex
[ 13.196000] 955x_GMAC: qca955x_soc_gmac_set_mac_duplex
[ 13.200000] 955x_GMAC: qca955x_soc_gmac_set_link Done
[ 13.204000] 955x_GMAC: done cfg2 0x7215 ifctl 0x0 miictrl
[ 13.212000] ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
usrconf_allocate_memory 212 shmget success id:43511 32769
[ 15.288000] Read from 0X20000 to 0X20120: OK
[ 212.888000] adf: module license 'Proprietary' taints kernel.
[ 212.892000] Disabling lock debugging due to kernel taint
[ 213.488000] ath_hal: 0.9.17.1 (AR5416, AR9380, REGOPS_FUNC, WRITE_EEPROM, 11D)
[ 213.572000] ath_rate_atheros: Copyright (c) 2001-2005 Atheros Communications, Inc, All Rights Reserved
[ 213.660000] ath_dfs: Version 2.0.0
[ 213.660000] Copyright (c) 2005-2006 Atheros Communications, Inc. All Rights Reserved
[ 213.972000] ath_dev: Copyright (c) 2001-2007 Atheros Communications, Inc, All Rights Reserved
[ 215.668000] ath_ahb: 10.0.107 (Atheros/multi-bss)
[ 215.676000] check DDR Activity - HIGH
[ 215.680000] ar9300_set_reset: Scorpion SoC RTC reset done.
[ 215.692000] Enterprise mode: 0x43fc0000
[ 215.696000] Restoring Cal data from Flash
[ 215.700000] ar9300_eeprom_restore_internal[4564] No vaid CAL, calling default template
[ 215.712000] check DDR Activity - HIGH
[ 215.716000] ar9300_set_reset: Scorpion SoC RTC reset done.
[ 215.724000] ath_get_caps[5863] rx chainmask mismatch actual 7 sc_chainmak 0
[ 215.732000] ath_get_caps[5838] tx chainmask mismatch actual 7 sc_chainmak 0
[ 215.740000] check DDR Activity - HIGH
[ 215.740000] ar9300_set_reset: Scorpion SoC RTC reset done.
[ 215.752000] check DDR Activity - HIGH
[ 215.752000] ar9300_set_reset: Scorpion SoC RTC reset done.
[ 215.768000] check DDR Activity - HIGH
[ 215.768000] ar9300_set_reset: Scorpion SoC RTC reset done.
[ 215.784000] SC Callback Registration for wifi0
[ 215.788000] wifi0: Atheros ???: mem=0xb8100000, irq=2
[ 215.792000] ath_pci: 10.0.107 (Atheros/multi-bss)
[ 215.796000] ath_pci_probe
[ 215.800000] ath_pci 0000:01:00.0: ath DEBUG: sc=0x8798d0c0
[ 215.808000]
[ 215.808000] ol_ath_pci_configure : num_desired MSI set to 0
[ 215.816000]
[ 215.816000] Using PCI Legacy Interrupt
[ 215.844000] __ol_ath_attach: ath_attach TODO
[ 215.852000] ol_ath_attach() BMI inited.
[ 216.676000] ol_ath_attach() BMI Get Target Info.
[ 216.680000] ol_ath_attach() TARGET TYPE: 7 Vers 0x4000002c
[ 216.688000] NUM_DEV=1 FWMODE=0x2 FWSUBMODE=0x0 FWBR_BUF 0
[ 216.692000] ol_ath_attach() configure Target .
[ 216.696000] ol_transfer_bin_file: flash cal data len 65535 doesn't equal to 2116
[ 216.704000] ol_transfer_bin_file: Board data file AR9888v1
[ 216.712000] ol_transfer_bin_file 1535: Download Board data len 2116
[ 216.732000] ol_ath_download_firmware: Using 0x1234 for the remainder of init
[ 216.736000] ol_transfer_bin_file 1527: Download OTP data len 3572
[ 217.012000] ol_transfer_bin_file 1553: Download Firmware data len 186112
[ 217.808000] ol_ath_attach() Download FW.
[ 217.812000] ol_ath_attach() HT Create .
[ 217.816000] ol_ath_attach() HIF Claim.
[ 217.820000] ol_ath_attach() BMI Done.
[ 217.824000] ol_ath_attach() WMI attached. wmi_handle 86e00000
[ 217.828000] +HWT
[ 217.832000] -HWT
[ 217.836000] HTC Service:0x0300 ep:1 TX flow control disabled
[ 217.844000] TXRX: Created pdev 86df3000
[ 217.848000] wmi_service_ready_event_rx: WMI UNIFIED SERVICE READY event
[ 217.856000] num_rf_chain : 00000003
[ 217.860000] ht_cap_info: : 0000085b
[ 217.864000] vht_cap_info : 338001b2
[ 217.868000] vht_supp_mcs : 0000ffea
[ 217.876000] wmi_ready_event_rx: WMI UNIFIED READY event
[ 217.884000] ol_ath_connect_htc() WMI is ready
[ 217.888000] ol_ath_set_host_app_area TODO
[ 217.892000] ol_ath_attach() connect HTC.
[ 217.896000] target uses HTT version 2.0; host uses 2.0
[ 217.900000] ol_regdmn_start: reg-domain param: regdmn=0, countryName=, wModeSelect=FFFFFFFF, netBand=FFFFFFFF, extendedChanMode=0.
[ 217.912000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 217.920000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 217.928000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 217.932000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 217.940000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 217.948000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 217.956000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 217.964000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 217.972000] ol_ath_phyerr_attach: called
[ 217.976000] OL Resmgr Init-ed
[ 217.980000] ol_if_dfs_setup: called
[ 217.984000] ol_if_dfs_attach: called; ptr=86f11974, radar_info=87bf7b98
[ 217.992000] ol_ath_rtt_meas_report_attach: called
[ 217.996000] ol_ath_attach() UMAC attach .
[ 218.000000] __ol_ath_attach: init tx/rx TODO
[ 218.004000] __ol_ath_attach: hard_header_len reservation 58
[ 218.012000] __ol_ath_attach: dev name wifi1
[ 218.016000] SC Callback Registration for wifi1
[ 218.184000] isCountryCodeValid: EEPROM regdomain 0x0
[ 218.188000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 218.196000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 218.200000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 218.208000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 218.216000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 218.224000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 218.232000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 218.236000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 218.344000] ath_ioctl: SIOC80211IFCREATE CALLED
[ 218.348000] wmi_unified_vdev_create_send: ID = 0 VAP Addr = 64:66:b3:be:88:f6:
[ 218.356000] TXRX: Created vdev 86f004e0 (64:66:b3:be:88:f6)
[ 218.364000] VAP device ath0 created
[ 218.364000] TXRX: ol_txrx_peer_find_add_id: peer 86f13400 ID 252
[ 218.372000] TXRX: ol_txrx_peer_find_add_id: peer 86f13400 ID 236
[ 218.388000] Setting vdev param = f, value = 1
[ 218.392000] ol_ath_vap_set_param: VAP param unsupported param:80 value:1
[ 218.420000] ol_ath_vap_set_param: VAP param unsupported param:35 value:0
[ 218.432000]
[ 218.432000] DES SSID SET=TP-LINK_5GHz_BE88F6
[ 218.444000] ieee80211_ioctl_siwmode: imr.ifm_active=66176, new mode=3, valid=1
[ 218.452000] OL vap_stop +
[ 218.456000] wmi_unified_vdev_stop_send
[ 218.460000] OL vap_stop -
[ 218.464000] STOPPED EVENT for vap 0
[ 218.472000] ol_ath_vap_set_param: VAP Mcast to Unicast buffer allocated: 400
[ 218.480000] Setting vdev param = 28, value = 2
[ 218.484000] ol_ath_vap_set_param: VAP param is now supported param:62 value:2
[ 218.500000] OL vap_stop +
[ 218.504000] wmi_unified_vdev_stop_send
[ 218.508000] OL vap_stop -
[ 218.508000] STOPPED EVENT for vap 0
[ 218.520000] OL vap_stop +
[ 218.524000] wmi_unified_vdev_stop_send
[ 218.528000] OL vap_stop -
[ 218.532000] STOPPED EVENT for vap 0
[ 218.664000] Invoking ACS module for Best channel selection
[ 223.676000] Scan in progress.. Cancelling it
[ 223.680000] OL vap_start +
[ 223.684000] OL vap_start -
[ 223.688000] OL vap_stop +
[ 223.692000] wmi_unified_vdev_stop_send
[ 223.696000] ol_vdev_start_resp_ev
[ 223.700000] OL vap_stop -
[ 223.700000] STOPPED EVENT for vap 0
[ 223.840000] Setting vdev param = 1a, value = 1
[ 223.848000] Setting vdev param = 3, value = 100
[ 223.964000] Setting vdev param = d, value = 1
[ 224.076000] Setting vdev param = 12, value = 1
[ 224.188000] Setting vdev param = 1e, value = 1
[ 224.300000] OL vap_stop +
[ 224.304000] wmi_unified_vdev_stop_send
[ 224.308000] OL vap_stop -
[ 224.308000] STOPPED EVENT for vap 0
[ 224.440000] OL vap_start +
[ 224.444000] OL vap_start -
[ 224.444000] ol_vdev_start_resp_ev
[ 224.448000] ol_ath_vap_join: join operation is only for STA/IBSS mode
[ 224.456000] set channel freq 5180
[ 224.460000] WMI channel freq=5180, mode=a band_center_freq1=5210
[ 224.464000] ol_if_dfs_configure: called
[ 224.468000] ol_if_dfs_disable: called
[ 224.472000] ol_ath_wmm_update:
[ 224.476000] ieee80211_dfs_cac_start[267] ===NON DFS chan === 5180
[ 224.480000] Setting vdev param = 3, value = 100
[ 224.488000] Notification to UMAC VAP layer
[ 224.492000] FIRMWARE:15 C ,0801 M 1f 0125 2f 8624 299
[ 224.612000] wmi_unified_vdev_stop_send
[ 224.616000] STOPPED EVENT for vap 0
[ 224.760000] athr_gmac_ring_alloc Allocated 3520 at 0x8784d000
[ 224.768000] athr_gmac_ring_alloc Allocated 3520 at 0x86ce6000
[ 225.072000] 955x_GMAC: eth0 in RGMII MODE
[ 225.076000] Scorpion -----> S17 PHY
[ 225.084000] athrs17_reg_init_wan done
[ 225.088000] Setting Drop CRC Errors, Pause Frames and Length Error frames
[ 225.092000] Setting PHY...
[ 225.096000] 955x_GMAC: qca955x_soc_gmac_set_mac_duplex
[ 225.100000] 955x_GMAC: qca955x_soc_gmac_set_link Done
[ 225.124000] device eth1 entered promiscuous mode
[ 225.144000] br1: port 1(eth1) entering forwarding state
[ 225.156000] OL vap_stop +
[ 225.160000] wmi_unified_vdev_stop_send
[ 225.164000] OL vap_stop -
[ 225.168000] STOPPED EVENT for vap 0
[ 225.300000] OL vap_start +
[ 225.304000] OL vap_start -
[ 225.304000] ol_vdev_start_resp_ev
[ 225.308000] ol_ath_vap_join: join operation is only for STA/IBSS mode
[ 225.316000] set channel freq 5180
[ 225.320000] WMI channel freq=5180, mode=a band_center_freq1=5210
[ 225.324000] ol_if_dfs_configure: called
[ 225.328000] ol_if_dfs_disable: called
[ 225.332000] ol_ath_wmm_update:
[ 225.336000] ieee80211_dfs_cac_start[267] ===NON DFS chan === 5180
[ 225.340000] Setting vdev param = 3, value = 100
[ 225.348000] Notification to UMAC VAP layer
[ 225.352000] FIRMWARE:15 C ,0801 M 1f 0125 2f 8624 299
[ 225.364000] device ath0 entered promiscuous mode
[ 225.368000] br1: port 2(ath0) entering forwarding state
[ 225.960000] ieee80211_ioctl_siwmode: imr.ifm_active=131738, new mode=3, valid=1
[ 225.968000] wmi_unified_vdev_stop_send
[ 226.068000] STOPPED EVENT for vap 0
[ 226.100000] br1: port 2(ath0) entering disabled state
[ 226.104000] ol_ath_vap_set_param: VAP param unsupported param:32 value:0
[ 226.112000] ol_ath_vap_set_param: VAP param unsupported param:121 value:1
[ 226.120000] DEVICE IS DOWN ifname=ath0
[ 226.124000] DEVICE IS DOWN ifname=ath0
[ 226.128000] ol_ath_vap_set_param: VAP param unsupported param:32 value:0
[ 226.136000] ol_ath_vap_set_param: VAP param unsupported param:32 value:0
[ 226.300000] ol_ath_vap_set_param: VAP param unsupported param:17 value:1
[ 226.308000] ol_ath_vap_set_param: VAP param unsupported param:32 value:1
[ 226.316000] ol_ath_vap_set_param: VAP param unsupported param:74 value:1
[ 226.320000] Group Keyidx set=1
[ 226.320000] wmi_unified_vdev_install_key_send Setting Key for Macaddress:0xf688beb36664
[ 226.332000] Keyix=1 Keylen=16 Keyflags=1 Cipher=4
[ 226.332000] Keydata=0xff 0xef 0x2c 0x96 0xb3 0x2 0x5c 0x6 0x7b 0xbe 0x86 0x73 0xe8 0x0 0xb8 0x47
[ 226.348000] ol_ath_vap_set_param: VAP param unsupported param:74 value:0
[ 226.356000] TXRX: ol_txrx_peer_find_add_id: peer 86f13400 ID 15
[ 226.360000] TXRX: sec spec for peer 86f13400 (64:66:b3:be:88:f6): mcast key of type 6
[ 226.368000] Setting vdev param = 1f, value = 1
[ 226.372000] OL vap_stop +
[ 226.376000] wmi_unified_vdev_stop_send
[ 226.380000] OL vap_stop -
[ 226.384000] STOPPED EVENT for vap 0
[ 226.516000] OL vap_start +
[ 226.520000] OL vap_start -
[ 226.520000] ol_vdev_start_resp_ev
[ 226.524000] ol_ath_vap_join: join operation is only for STA/IBSS mode
[ 226.532000] set channel freq 5180
[ 226.536000] WMI channel freq=5180, mode=a band_center_freq1=5210
[ 226.540000] ol_if_dfs_configure: called
[ 226.544000] ol_if_dfs_disable: called
[ 226.548000] ol_ath_wmm_update:
[ 226.552000] ieee80211_dfs_cac_start[267] ===NON DFS chan === 5180
[ 226.556000] Setting vdev param = 3, value = 100
[ 226.564000] Notification to UMAC VAP layer
[ 226.568000] FIRMWARE:15 C ,0801 M 1f 0125 2f 8624 299
[ 226.572000] br1: port 2(ath0) entering forwarding state
[ 226.824000] FWLOG: [236832] WAL_DBGID_SECURITY_ENCR_EN ( )
[ 226.828000] FWLOG: [236832] WAL_DBGID_SECURITY_MCAST_KEY_SET ( 0x1 )
[ 226.836000] FWLOG: [236898] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x39d62, 0x200000a, 0x24 )
[ 227.552000] wmi_unified_vdev_stop_send
[ 227.556000] STOPPED EVENT for vap 0
[ 227.688000] br1: port 2(ath0) entering disabled state
[ 227.712000] ol_ath_vap_set_param: VAP param unsupported param:17 value:1
[ 227.724000] br1: starting userspace STP failed, starting kernel STP
[ 227.736000] OL vap_stop +
[ 227.740000] wmi_unified_vdev_stop_send
[ 227.744000] OL vap_stop -
[ 227.748000] STOPPED EVENT for vap 0
[ 227.880000] OL vap_start +
[ 227.884000] OL vap_start -
[ 227.884000] ol_vdev_start_resp_ev
[ 227.888000] ol_ath_vap_join: join operation is only for STA/IBSS mode
[ 227.896000] set channel freq 5180
[ 227.900000] WMI channel freq=5180, mode=a band_center_freq1=5210
[ 227.904000] ol_if_dfs_configure: called
[ 227.908000] ol_if_dfs_disable: called
[ 227.912000] ol_ath_wmm_update:
[ 227.916000] ieee80211_dfs_cac_start[267] ===NON DFS chan === 5180
[ 227.920000] Setting vdev param = 3, value = 100
[ 227.928000] Notification to UMAC VAP layer
[ 227.932000] FIRMWARE:15 C ,0801 M 1f 0125 2f 8624 299
[ 227.936000] br1: topology change detected, propagating
[ 227.944000] br1: port 2(ath0) entering forwarding state
[ 228.340000] fuse init (API version 7.12)
[ 228.516000] usbcore: registered new interface driver usbfs
[ 228.524000] usbcore: registered new interface driver hub
[ 228.528000] usbcore: registered new device driver usb
[ 228.556000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 228.560000] Port Status 1c000004
[ 228.564000] ath-ehci ath-ehci.0: ATH EHCI
[ 228.568000] ath-ehci ath-ehci.0: new USB bus registered, assigned bus number 1
[ 228.576000] ehci_reset Intialize USB CONTROLLER in host mode: 13
[ 228.584000] ehci_reset Port Status 1c000000
[ 228.588000] ath-ehci ath-ehci.0: irq 3, io mem 0x1b000000
[ 228.596000] ehci_reset Intialize USB CONTROLLER in host mode: 13
[ 228.604000] ehci_reset Port Status 1c000000
[ 228.620000] ath-ehci ath-ehci.0: USB 2.0 started, EHCI 1.00
[ 228.624000] usb usb1: configuration #1 chosen from 1 choice
[ 228.628000] hub 1-0:1.0: USB hub found
[ 228.632000] hub 1-0:1.0: 1 port detected
[ 228.636000] Port Status 1c000000
[ 228.640000] ath-ehci1 ath-ehci1.1: ATH EHCI
[ 228.644000] ath-ehci1 ath-ehci1.1: new USB bus registered, assigned bus number 2
[ 228.656000] ehci_reset Intialize USB CONTROLLER in host mode: 13
[ 228.660000] ehci_reset Port Status 1c000000
[ 228.664000] ath-ehci1 ath-ehci1.1: irq 3, io mem 0x1b400000
[ 228.672000] ehci_reset Intialize USB CONTROLLER in host mode: 13
[ 228.680000] ehci_reset Port Status 1c000000
[ 228.696000] ath-ehci1 ath-ehci1.1: USB 2.0 started, EHCI 1.00
[ 228.700000] usb usb2: configuration #1 chosen from 1 choice
[ 228.704000] hub 2-0:1.0: USB hub found
[ 228.708000] hub 2-0:1.0: 1 port detected
[ 228.900000] SCSI subsystem initialized
[ 229.160000] Initializing USB Mass Storage driver...
[ 229.164000] usbcore: registered new interface driver usb-storage
[ 229.172000] USB Mass Storage support registered.
[ 230.352000] kcg 333 :GPL NetUSB up!
[ 230.564000] kc 90 : run_telnetDBGDServer start
[ 230.568000] kc 227 : init_DebugD end
[ 230.572000] INFO17E0: NetUSB 1.02.65.5, 0002061F : Apr 21 2015 15:26:52
[ 230.580000] INFO17E2: 7437: Archer C7 v1 :Archer C7 v1
[ 230.584000] INFO17E3: AUTH ISOC
[ 230.588000] INFO17E4: filterAudio
[ 230.592000] usbcore: registered new interface driver KC NetUSB General Driver
[ 230.600000] INFO0145: init proc : PAGE_SIZE 4096
[ 230.604000] INFO16D4: infomap 8670be3c
[ 230.608000] INFO16D7: sleep to wait br0 to wake up
[ 230.616000] INFO15A7: tcpConnector() started... : br0
[ 230.972000] IPv6 over IPv4 tunneling driver
[ 233.648000] INFO155A: Bind to br0
check successWtedy też zmienia się nagłówek na:
U-Boot 1.1.4 (May 11 2015 - 15:13:34)
ap135 - Scorpion 1.0DRAM:
sri
Scorpion 1.0
ath_ddr_initial_config(178): (32bit) ddr2 initddr1 zmienia się na ddr2.
