2022-06-30 21:46:08

Now there is another problem…
I cannot hit full bandwidth using Wi-Fi. Each time I do a speedtest only one single CPU reach 100%

I’ve installed also irqbalance but not a success..

2022-06-30 20:06:41

Leo-PL napisał/a:

Bravo! I wonder if just rebooting the modem once more by software would make it show correct version, that could be related to its own config postprocessing.

ok also B05->B06 was done
A double reboot give me the correct version

an update:

it's only necessary to copy delta.package+delta.signature to /cache on the modem, the AT+FOTACTR=2 will rename it to delta.bin an do all the stuff

Now i'm upgrading from B06 to B08

EDIT: ok now i'm on NORDIC 1.0.0B11 modem, thanks for the file @MiG25

some tips:

AT+FOTACTR=5 gives the size of the update package into /cache directory
AT+FOTACTR=8 delete the *.flg files, should be done before each update, otherwise the delta package is not processed

2022-06-30 19:34:19

MiG25 napisał/a:

I uploaded again ( downloaded directly) . But old one can by open by 7zip on windows...

Yes the problem is on rootFS file (invalid CRC) for the router part, the delta for modem seems good

I’ve sent the upload now I’m out of home, if it’s working I’ll report here the result

The last step is how to flash it in fastboot mode, in this way we are completely free from ZTE framework

2022-06-30 18:51:34

@MiG25 can you re-upload imageB05naB06.zip?
It's broken...

unzip imageB05naB06.zip
Archive: imageB05naB06.zip
End-of-central-directory signature not found. Either this file is not
a zipfile, or it constitutes one disk of a multi-part archive. In the
latter case the central directory and zipfile comment will be found on
the last disk(s) of this archive.

in meantime i've tried to flash my modem, here is the log:

/cache # cat update.log
21:42:04 335 UP>>Begin zte_topsw_dua ...
21:42:04 345 UP>>Enter power_fail_protection
21:42:04 351 UP>>power_fail_protection get current_stage = 4
21:42:04 354 UP>>update system, disable flash protection beforn fota install 20171226
21:42:04 360 UP>>disable flash protection done
21:42:04 361 UP>>Enter update_system_stage
21:42:04 364 UP>>open file /dev/mp2617 failed.
21:42:04 368 UP>>last update partition index = 0
21:42:04 369 UP>>update system.mld
21:42:04 372 UP>>Record system into /cache/current_update.bk successfully
21:42:04 374 UP>>Record system into /cache/current_update successfully
21:42:05 742 UP>>available space=50864128
21:42:05 743 UP>>available space=13914112
21:42:25 306 UP>>available space=50053120
21:42:25 307 UP>>available space=13914112
21:42:25 396 UP>>umount /mnt/system successful
21:42:25 421 UP>>update system.mld ok
21:42:25 422 UP>>update ztedata.mld
21:42:25 424 UP>>Record ztedata into /cache/current_update.bk successfully
21:42:25 426 UP>>Record ztedata into /cache/current_update successfully
21:42:25 647 UP>>available space=50049024
21:42:25 648 UP>>available space=13914112
21:42:25 717 UP>>available space=50049024
21:42:25 719 UP>>available space=13914112
21:42:25 737 UP>>umount /mnt/ztedata successful
21:42:25 739 UP>>update ztedata.mld ok
21:42:25 747 UP>>update modem.mld
21:42:25 749 UP>>Record modem into /cache/current_update.bk successfully
21:42:25 756 UP>>Record modem into /cache/current_update successfully
21:42:27 354 UP>>available space=50044928
21:42:27 355 UP>>available space=13914112
21:42:45 939 UP>>available space=49979392
21:42:45 940 UP>>available space=13914112
21:42:45 976 UP>>umount /mnt/modem successful
21:42:45 985 UP>>update modem.mld ok
21:42:45 987 UP>>update boot.mld
21:42:45 993 UP>>Record boot into /cache/current_update.bk successfully
21:42:45 995 UP>>Record boot into /cache/current_update successfully
21:42:45 996 UP>>mtd /dev/mtd7,55
21:42:45 997 UP>>available space=49991680
21:42:45 998 UP>>available space=13914112
21:43:05 633 UP>>available space=49442816
21:43:05 634 UP>>available space=13914112
21:43:05 635 UP>>(*param)->mtd_fd=55 will close
21:43:05 638 UP>>update boot.mld ok
21:43:05 640 UP>>update sbl.mld
21:43:05 642 UP>>Record sbl into /cache/current_update.bk successfully
21:43:05 643 UP>>Record sbl into /cache/current_update successfully
21:43:05 645 UP>>mtd /dev/mtd0,65
21:43:05 646 UP>>available space=49459200
21:43:05 647 UP>>available space=13914112
21:43:05 829 UP>>available space=49455104
21:43:05 830 UP>>available space=13914112
21:43:05 831 UP>>(*param)->mtd_fd=65 will close
21:43:05 835 UP>>update sbl.mld ok
21:43:05 836 UP>>update rpm.mld
21:43:05 838 UP>>Record rpm into /cache/current_update.bk successfully
21:43:05 840 UP>>Record rpm into /cache/current_update successfully
21:43:05 841 UP>>mtd /dev/mtd4,75
21:43:05 843 UP>>available space=49459200
21:43:05 843 UP>>available space=13914112
21:43:06 085 UP>>available space=50847744
21:43:06 086 UP>>available space=13914112
21:43:06 087 UP>>(*param)->mtd_fd=75 will close
21:43:06 091 UP>>update rpm.mld ok
21:43:06 092 UP>>update aboot.mld
21:43:06 094 UP>>Record aboot into /cache/current_update.bk successfully
21:43:06 096 UP>>Record aboot into /cache/current_update successfully
21:43:06 097 UP>>mtd /dev/mtd6,85
21:43:06 098 UP>>available space=50855936
21:43:06 100 UP>>available space=13914112
21:43:06 316 UP>>available space=50843648
21:43:06 318 UP>>available space=13914112
21:43:06 318 UP>>(*param)->mtd_fd=85 will close
21:43:06 322 UP>>update aboot.mld ok
21:43:06 323 UP>>update tz.mld
21:43:06 325 UP>>Record tz into /cache/current_update.bk successfully
21:43:06 327 UP>>Record tz into /cache/current_update successfully
21:43:06 329 UP>>mtd /dev/mtd3,95
21:43:06 330 UP>>available space=50843648
21:43:06 331 UP>>available space=13914112
21:43:06 427 UP>>available space=50843648
21:43:06 428 UP>>available space=13914112
21:43:06 429 UP>>(*param)->mtd_fd=95 will close
21:43:06 432 UP>>update tz.mld ok
21:43:06 436 UP>>update system ok
21:43:06 438 UP>>Record cps_file into /cache/current_update.bk successfully
21:43:06 440 UP>>Record cps_file into /cache/current_update successfully
21:43:07 768 UP>>compress_after_fota /mnt/system/usr/zte/zte_conf/fota/modem.b20A /cache/
21:43:07 777 UP>>enter q6zip_compress
21:44:07 810 UP>>exit q6zip_compress
21:44:07 811 UP>>Successfully compressed /mnt/system/usr/zte/zte_conf/fota/modem.b20A into /cache/modem.b20
21:44:12 699 UP>>move /cache/modem.b20 to /mnt/modem/image/modem.b20 successfully
21:44:12 746 UP>>not found the runrfs.mld file
21:44:15 797 UP>>update system, enable flash protection beforn fota install 20171226
21:44:15 806 UP>>en flash protection done
21:44:15 807 UP>>Enter dua_reboot
00:00:05 604 UP>>Begin zte_topsw_dua ...
00:00:05 655 UP>>Enter power_fail_protection
00:00:05 675 UP>>power_fail_protection get current_stage = 5
00:00:05 706 UP>>Enter post_update_stage
00:00:05 712 UP>>unlink /cache/postprocessing.sh failed with 2 (No such file or directory)
run postprocessing.sh
postprocessing complete !
00:00:06 646 UP>>remove /cache/fota_update_for_voice.flg failed
19:47:17 058 UP>>recv result

I've done the following steps (need a full powercycle to get new firmware on ATI command):

- copy files delta.package\signature via adb into /cache
- log on the modem using "adb shell", then go on /cache and copy delta.package as delta.bin
- connected to ttyUSB1 and send these command:
AT+FOTACTR=0 <-- if it gives 0,0 the modem see the package
AT+FOTACTR=1 <-- it should gives 1,2, the modem is validating the update package
AT+FOTACTR=2 <-- it start the FOTA process, after finish it will reboot the module

and this is the result:

Manufacturer: ZTE CORPORATION
Model: MF286DMODULE
Revision: BD_TELIAMF286DV1.0.0B05
SVN: 05
IMEI: 86XXXXXX
+GCAP: +CGSM

2022-06-30 15:54:48

MiG25 napisał/a:

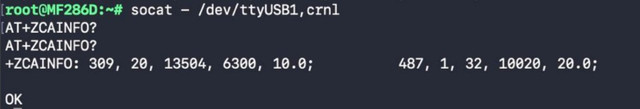

And you have aggregation B20 + B32 ?
Command AT+ZCAINFO? shows two bands ?

yes, it was done from another guy that has this band on his location

2022-06-30 15:33:38

MiG25 napisał/a:

@stich86 , here you find all image file for Nordic : https://www.mediafire.com/folder/aas2kd1518bzr/Nordic
I even had some router with have Nordic B03

very nice! i'll try to do FOTA in sequence on my B02... let's see what happens

2022-06-30 15:24:46

MiG25 napisał/a:

stich86 napisał/a:
guys do you know the MASK for B20+B32?
I've tried AT+ZNLOCKBAND=1,080080000,0 but it's not working

one coma and zero is missing in this command , something like this modem accepted:
echo -e -n 'AT+ZNLOCKBAND=1,0,080080000,0\r' > /dev/ttyUSB1
But we don't have in Poland this bands ,and is not connecting to anthing

oh nice!
it works

EDIT: i've added the "32" to /usr/share/modemband/19d21485, so it can be modded also from LuCI

2022-06-30 14:49:43

smereka napisał/a:

Przemaglowało do 11 płyta i modem i działa. Dzięki

are you able to share the B11 OTA file?
So I can try to update modem manually

thx

2022-06-30 14:41:06

guys do you know the MASK for B20+B32?
I've tried AT+ZNLOCKBAND=1,080080000,0 but it's not working

2022-06-30 11:04:43

MiG25 napisał/a:

Here is uploaded image.zip , with updates Elisa B03 to Elisa1 B06 , and at the same time modem from BD_ELISAFIMF286DMODV1.0.0B03 to BD_ELISAFIMF286DMODV1.0.1B01
https://www.mediafire.com/file/m6bxg5di … 6.zip/file

so we can flash modem with B03 (from TIM to ELISA), then try to pass this delta on the modem and check if it accept

2022-06-30 10:25:44

MiG25 napisał/a:

https://eko.one.pl/forum/viewtopic.php? … 50#p259150
Here are examples of image.zip files from Telia/ Nordic , are you able to get delta file from them ?
Such files OTA downloading as name image.zip to folder /etc_rw/fota

we should get the URL used by ELISA... only way is to check a real router in action

2022-06-30 10:06:54

MiG25 napisał/a:

In image.zip ( OTA file , with is downloading first) there is file delta.package and delta.signature , and i belive that is not only modem ,but also router deltas. Ar you able from this files ( and generally from image.zip) do a files to be send only to modem ?

modem part is only "delta" file, other files are for the router part.
These files are sent over adb to /cache folder, and AT+FOTACRT commands are issued (with parameter from 1 to 10)

2022-06-30 09:31:42

looks like that modem into firmware "TIM to ELISA" is version 1.0.0B03 that support AT+ZULCA command.
I've flashed a modem using SB3.0 successfully.

Now the problem is where to get all DELTA update

2022-06-29 20:56:51

MiG25 napisał/a:

Teraz dla zabawy wgrałem Elisa to Nordic zte mf286d 192.168.32.1 pw ---.rar
i od B02 do B11 router przeszedł po kolei wszystkie updaty.
Na początku trzeba mu było ustawiać imei z Nordic np tki:
nv set imei=866754040083680
nv set imei_tmp=866754040083680
Bodajże od B06 już znajdywał OTA bez zmiany IMEI.
Także modem z Play teraz pokazuje ,że jest:
Manufacturer: ZTE CORPORATION
Model: MF286DMODULE
Revision: BD_TELIAMF286DV1.0.0B11
SVN: 11

this version support UL CA?

2022-06-29 15:15:15

Leo-PL napisał/a:

stich86 napisał/a:
MiG25 napisał/a:
Ofcourse it would be great to have such possibility.
But this can be done , if somone really need it , and works. Especially if you are not doing this so often.
OTA can be also replace by inserting a file image.zip to proper directory , then modem detect it as fota...
AFAIK a delta update can be simply put into /cache partition of the modem and it will update on last reboot, the main problem is the first update. ZTE framework will put modem into fastboot and send partitions over network to the modem. All the stuff is done by zte_topsw_dua binary on the modem
If we found how to put modem in this state (and bridge fastboot on OpenWRT without have binary on the router) it will be very easy to swap the system on it.
I would definitely try that - the router behaves more-or-less the same, when it finds image.zip after reboot, it will attempt an update.
@smereka do you have the right deltas for your version? I found ones only from B07 upwards, at least for Nordic.

i've tried to push delta.package\image into /cache on the modem and then run the three AT+FOTACRT command, but still have this error on modem logs:

/cache # cat update.log
00:00:01 UP>>Begin zte_topsw_dua ...
00:00:01 UP>>delta.bin not exist
00:00:01 UP>>Enter power_fail_protection

2022-06-29 14:29:50

http://ixion.pld-linux.org/~arekm/mf286 … slated.pdf

http://ixion.pld-linux.org/~arekm/mf286d/

a lot of information here

2022-06-29 14:16:10

MiG25 napisał/a:

Ofcourse it would be great to have such possibility.
But this can be done , if somone really need it , and works. Especially if you are not doing this so often.
OTA can be also replace by inserting a file image.zip to proper directory , then modem detect it as fota...

AFAIK a delta update can be simply put into /cache partition of the modem and it will update on last reboot, the main problem is the first update. ZTE framework will put modem into fastboot and send partitions over network to the modem. All the stuff is done by zte_topsw_dua binary on the modem

If we found how to put modem in this state (and bridge fastboot on OpenWRT without have binary on the router) it will be very easy to swap the system on it.

2022-06-28 22:18:20

MiG25 napisał/a:

stich86 napisał/a:
MiG25 napisał/a:
Becouse TIM_to_NORDIC_B11 is not "official" ZTE , it is like collection of backup of mtd8 and mtd9 ,modified password ,ect.
BD_TELIAMF286DV1.0.0B02 also not recognize AT+ZULCA command.
Looks like the ELISA modem is the most updated
It’s 1.0.1B06, but there is not full firmware, just OTA as I know
Yes , first you make any MF286D you have with any soft of modem , give above command in terminal , so the framework thinks that it is TIM fw , and do Elisa (also in modem ) , and then from OTA is making 1.0.1B06

But I don’t want to do all this stuff
If we can find how the fastboot and ota are done can be so also possible to do on OpenWRT

2022-06-28 20:41:31

I need to understand how to put modem in fastboot because at the moment doing from adb doesn’t have any effect.

I’ve a new MF286D unit with original TIM firmware, I’ll solder the UART so I can check the firmware update flow..

2022-06-28 20:28:22

MiG25 napisał/a:

Becouse TIM_to_NORDIC_B11 is not "official" ZTE , it is like collection of backup of mtd8 and mtd9 ,modified password ,ect.
BD_TELIAMF286DV1.0.0B02 also not recognize AT+ZULCA command.

Looks like the ELISA modem is the most updated
It’s 1.0.1B06, but there is not full firmware, just OTA as I know

2022-06-28 17:09:42

looks like a problem of position..
change it makes very similar speedtest on the same band

Who know which is the latest firmware availiable for the modem?

I've seen on that forum there is a BD_TELIAMF286DV1.0.0B10 or B09, while on my module i've BD_TELIAMF286DV1.0.0B02 (the one inside package from TIM_to_NORDIC_B11)

2022-06-28 13:45:55

guys are you getting same speed on OpenWRT like stock firmware?

i'm testing the router with OWRT 22.03 (build from eko.one.pl), but cannot reach same speed of stock firmware.
I've test both band combination (B1+B7+B3 or B1+B20+B3). I don't think the problem is the modemd (that is using the same firmware on NORDIC), may be the QMI implementation on OpenWRT..

2022-06-26 16:43:25

Leo-PL napisał/a:

Yeah, it is handled by modem entirely. Even VoLTE works according to some folks here ;-)

wow nice!
thanks for confirmation...

2022-06-26 16:11:34

@Leo-PL

with OpenWRT the RJ11 and phone functionality are working?

2022-06-24 15:35:53

Leo-PL napisał/a:

Yes, when the modem enumerates as 19d2:0076.

very strange.. I got another modem, put in 192d2:0076 using my qcommands, then enter 9008 (still with qcommand) and flash it back with SB3.0
Now it's online again without any issue

Can you write here the exact commands list that you run?

FAQ o OpenWrt | Sprzedam różne routery | Oddam

Opcje wyszukiwania (Strona 12 z 16)

Znalezione posty: 276 do 300 z 393

276 Odpowiedź przez stich86 2022-06-30 21:46:08

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

277 Odpowiedź przez stich86 2022-06-30 20:06:41

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

278 Odpowiedź przez stich86 2022-06-30 19:34:19

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

279 Odpowiedź przez stich86 2022-06-30 18:51:34

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

280 Odpowiedź przez stich86 2022-06-30 15:54:48

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

281 Odpowiedź przez stich86 2022-06-30 15:33:38

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

282 Odpowiedź przez stich86 2022-06-30 15:24:46

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

283 Odpowiedź przez stich86 2022-06-30 14:49:43

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

284 Odpowiedź przez stich86 2022-06-30 14:41:06

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

285 Odpowiedź przez stich86 2022-06-30 11:04:43

Odp: Modem od routera MF286D (890 odpowiedzi, napisanych Sprzęt / Hardware)

286 Odpowiedź przez stich86 2022-06-30 10:25:44

Odp: Modem od routera MF286D (890 odpowiedzi, napisanych Sprzęt / Hardware)

287 Odpowiedź przez stich86 2022-06-30 10:06:54

Odp: Modem od routera MF286D (890 odpowiedzi, napisanych Sprzęt / Hardware)

288 Odpowiedź przez stich86 2022-06-30 09:31:42

Odp: Modem od routera MF286D (890 odpowiedzi, napisanych Sprzęt / Hardware)

289 Odpowiedź przez stich86 2022-06-29 20:56:51

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

290 Odpowiedź przez stich86 2022-06-29 15:15:15

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

291 Odpowiedź przez stich86 2022-06-29 14:29:50

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

292 Odpowiedź przez stich86 2022-06-29 14:16:10

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

293 Odpowiedź przez stich86 2022-06-28 22:18:20

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

294 Odpowiedź przez stich86 2022-06-28 20:41:31

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

295 Odpowiedź przez stich86 2022-06-28 20:28:22

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

296 Odpowiedź przez stich86 2022-06-28 17:09:42

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

297 Odpowiedź przez stich86 2022-06-28 13:45:55

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

298 Odpowiedź przez stich86 2022-06-26 16:43:25

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

299 Odpowiedź przez stich86 2022-06-26 16:11:34

Odp: ZTE MF286D - Openwrt (3,876 odpowiedzi, napisanych Sprzęt / Hardware)

300 Odpowiedź przez stich86 2022-06-24 15:35:53

Odp: Modem od routera MF286D (890 odpowiedzi, napisanych Sprzęt / Hardware)

Znalezione posty: 276 do 300 z 393
